SIP 01552 - Dust Collector Connection for Thicknessing

10

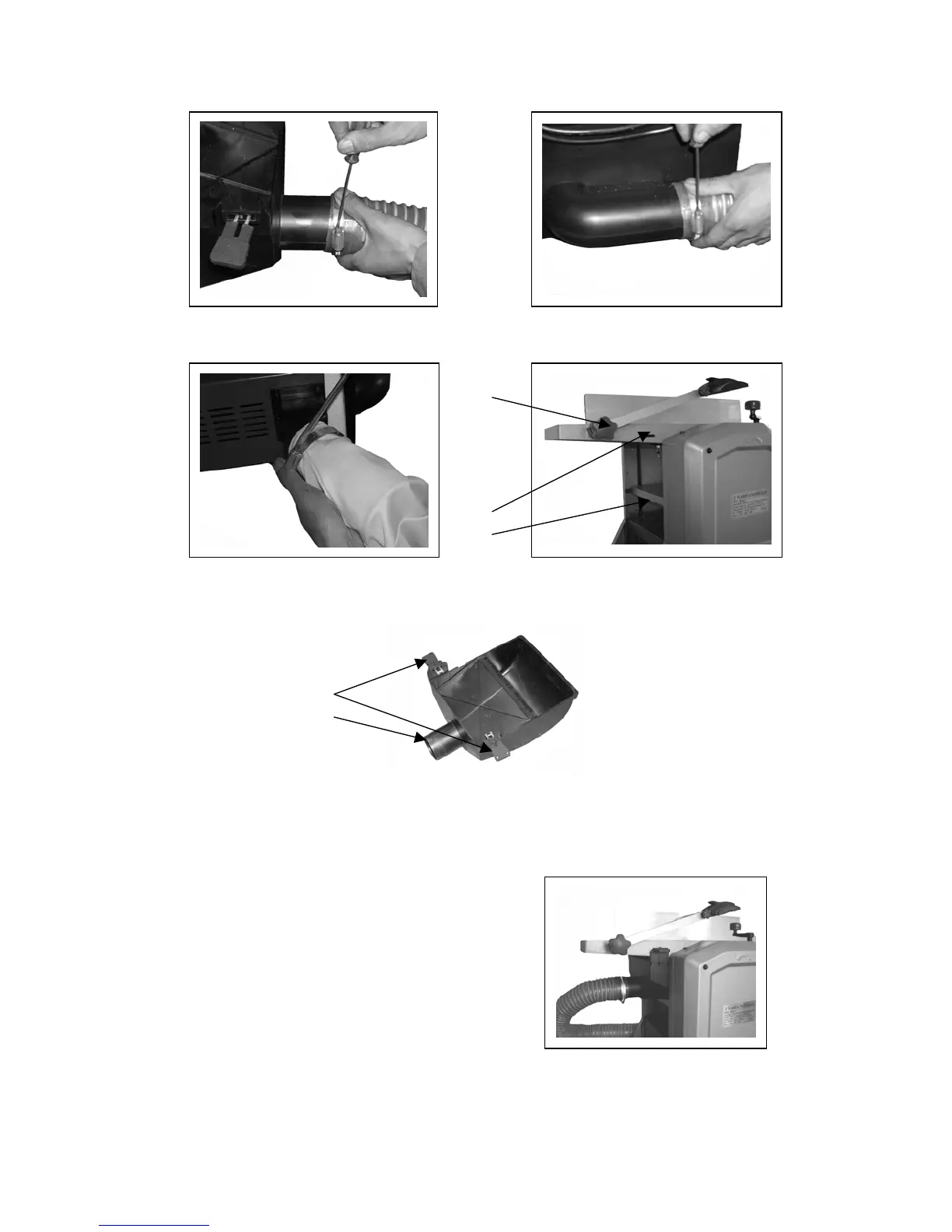

Figure 6 Figure 7
C
D
12
Figure 8 Figure 9
E
1
Figure 10
- The dust collector 1 is so positioned that both keys E are in line with the longitude holes D. Then push both
keys E into the longitude holes D. Referring to Fig. 11
-
Figure 11
DUST COLLECTOR CONNECTION WHEN THICKNESSING:
-Take off the Angle fence.
-Remove the blade guard 4 and place the dust collector 1. See Figure 13.
