SIP DISC 220 F ALP User Manual

Instruction for work
12
Type DISC 300 F ALP
Working width 2985 mm
Weight 495 kg
Transport width 3043 mm
Cardan shaft rotation
(max.)
1000 (ISO) rpm
1000 (DIN) rpm
540 (ISO) rpm
540 (DIN) rpm
Disc rotation 3000 rpm
Safety clutch (Nm) 800
Number of discs 7
Number of blades 14
Tractor power (min.) 45 kW
Working speed up to 18 km/h
Mowing capacity 3,5 ha/h
Swath width 0,9 – 1,7 mm
Connector type three-point
Required hydraulic connections on the tractor
– 2 connections (two way circulation system).
Required pressure for machine operation:
– Minimum required hydr. pressure of tractor is 60
bar.
– Maximum permitted hydr. pressure of tractor is
100 bar.
 With the purchase of machinery is necessary to
define the direction of rotation of the cardan shaft.
Noise level over 70 dB

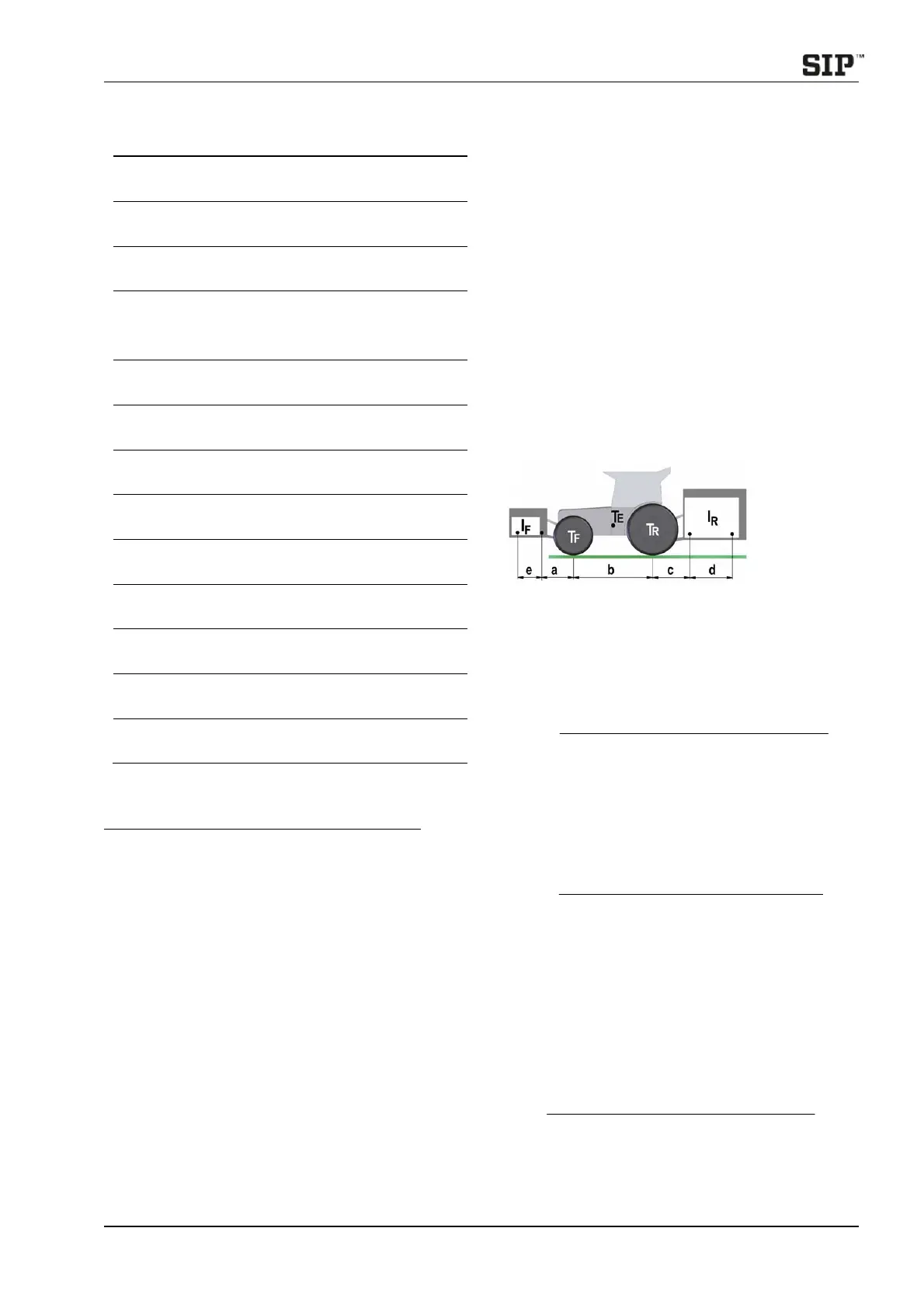

1.4 Calculation of tractor ballast
Enclosure B standard SIST EN ISO 4254 –10
Due to the weight of the machine, the combination of
tractor and machine could become unstable.
Attaching the machine from the front or the rear or
both must not exceed the permitted total maximum
weight of the tractor, the permitted axle load and tyre
load.
The front axle load must amount to at least 20% of the
unloaded weight of the tractor.
The rear axle load must amount to at least 45% of the
unloaded weight of the tractor.
To calculate the total tractor stability, use the
following formulas.
FRONT CONNECTION OF THE MACHINE OR
COMBINATION
Minimum required weight for machine/weights
attached at the rear:
dcb
b)T(0.45b)(Te)(aI
I
ERF
R



.min
REAR CONNECTION OF THE MACHINE OR
COMBINATION
Minimum required weight for machine/weights
attached at the front:
eba
b)T(0,2b)(Td)(cI
I
EFR
F



.min
ACTUAL TRACTOR LOAD
Actual total weight of tractor:
EFRS
TIIT 
Calculation of actual front axle load:
b
d)c(Ib)(T)ba(eI
T
RFF
FS


1
