SIP Migmate 130 - Component Visual Guides; Rectifier Plate Modifications; Choke Component Changes

Default Icon
6 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

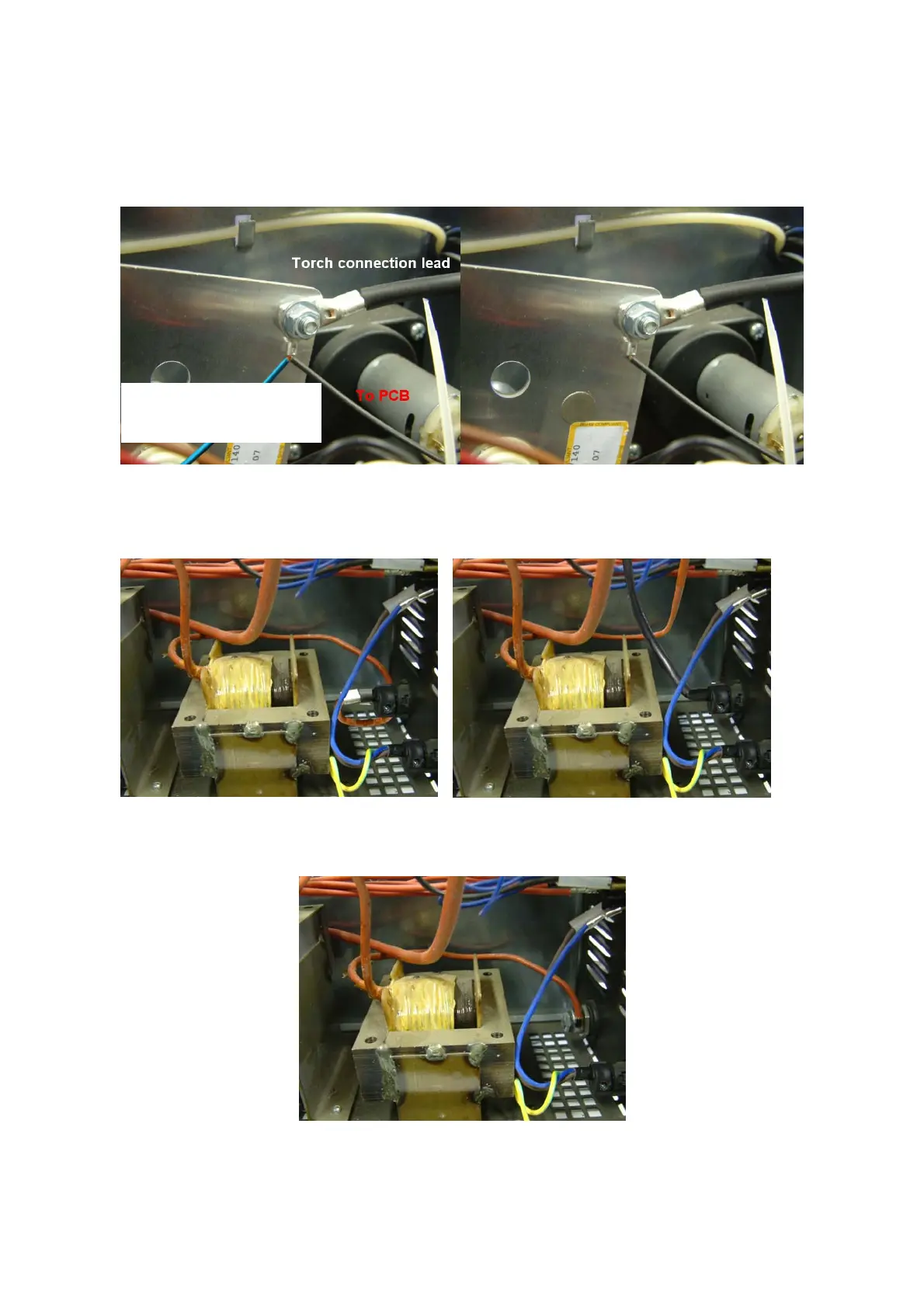

Rectifier Plate
Before After
Choke
Before
After gasless
After gas/gasless
Blue wire to thermal overload
may go via CN5 on PCB.
May be a different colour
