24

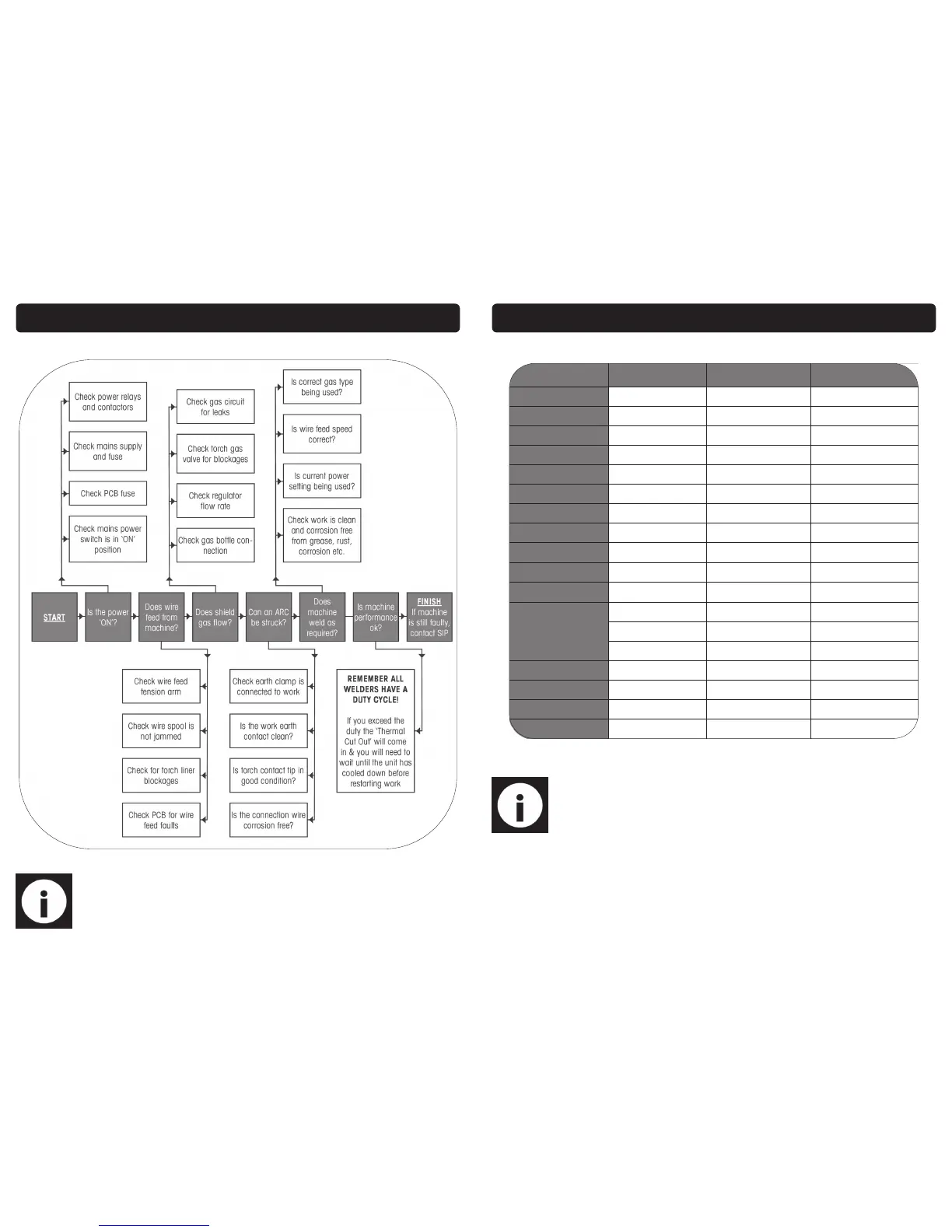

TROUBLESHOOTING
Note: If none of the above solutions work then contact your local distributor
for repair, or contact SIP technical for more advise.
13
TECHNICAL SPECIFICATION
Note: Only the Weldmate T126 & T136 can be operated from a 13A sup-
ply, using the Weldmate T166 from a 13A supply will invalidate the warran-
ty.
Model
Weldmate T126
(Gasless)
Weldmate T136
(Gas / Gasless)
Weldmate T166
(Gas / Gasless)
Input Voltage 230v ~ 50Hz 230v ~ 50Hz 230v ~ 50Hz
Input Current 13 amps 13 amps 16 amps
Maximum OCV 31V (AC) 30V (DC) 32V (DC)
Output Current (Amps) 60 - 125 (Peak) 30 - 135 (Peak) 30 - 165 (Peak)
Output Voltage 17v - 18.5v 15.5v - 18v 15.5v - 19.25v
Wire Diameter 0.8mm - 0.9mm 0.6mm - 0.8mm 0.6mm - 0.8mm
Wire Spool Size 0.7kg - 5kg 0.7kg - 5kg 0.7kg - 5kg
Wire Type Flux cored Solid / Flux cored Solid / Flux cored
Weld Thickness 1.2mm - 4.0mm 0.7mm - 5.4mm 0.7mm - 6.2mm
Maximum Wire Speed 14m/min 16m/min 16m/min
Weld Material Mild steel
Mild steel, Stainless steel, Aluminium Mild steel, Stainless steel, Aluminium
Duty Cycle
90 amps @ 20% 80 amps @ 20% 105 amps @ 20%
60 amps @ 60% 46 amps @ 60% 60 amps @ 60%
- - 47 amps @ 100%
Power Settings 2 4 6
Insulation Class H H H
Protection IP21S IP21S IP21S
Net Weight 16Kg 20Kg 25.8Kg
