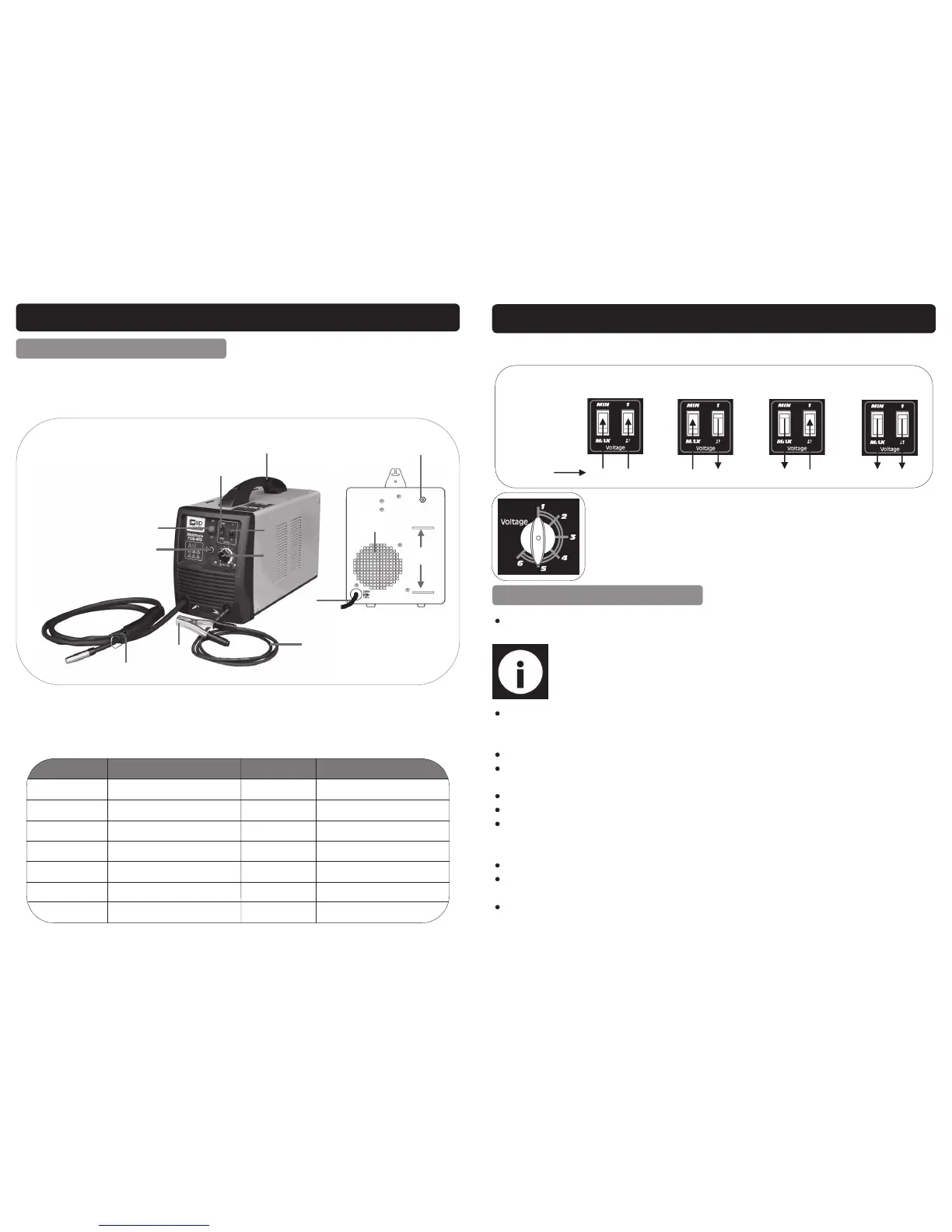

GETTING TO KNOW YOUR WELDER….cont
WELDMATE T136 MIG
11
1
2
3
4
5
6
7
8
9
10
13
12
Ref. No. Description Ref. No. Description
1. Welding Torch 8. Earth Return Lead
2. Thermal Overload Indicator 9. Earth Clamp
3. Power Switch 10. Gas Hose Fitting
4. Coarse Output Selector Switch 11. Fan Grill
5. Handle 12. Bottle Bracket Slots
6. Fine Output Selector Switch 13. Mains Lead
7. Wire Speed Control
Rear View
21
OPERATING INSTRUCTIONS….cont
The Weldmate T166 has 6 power settings, lowest setting is 1 and
the highest is 6 (see left diagram).
Fit the wire spool onto the spool holder - if using a 5kg reel ensure it is correctly
seated - Secure in place by tightening the nut.
Check the wire feed roller matches the wire size; If not remove the roller cover
by rotating it by a ¼ of a turn anti-clockwise, turn the roller over, and refit the
cover.
Connect the welder to a suitable electrical supply, but do not switch on.
Remove the shroud from the torch by rotating the shroud clockwise and pulling
at the same time.
Remove the MIG tip.
Pull the pressure adjustment knob so it pivots off the tension arm.
Remove the free end of the MIG wire from the side of the wire spool, trim the
distorted end of the wire with a pair of wire cutters; Hold the wire carfully as it will
try to unwind from the spool.
Lift the tension arm.
Pass the wire through the inlet guide, through the wire feed roller groove and
then in to the torch liner.
Lower the tension arm and pivot the pressure adjustment knob up and back on
to the tension arm.
The Weldmate T136 has 4 power settings (see below diagram).
Up
Up
Lowest position
Setting 1
Up
Down
Setting 2
Down
Up
Setting 3
Down Down
Highest position
Setting 4
Switch
position
Note: The wire should always feed from the bottom of the reel.
FITTING AND FEEDING THE WIRE
