1.7.1 - Warning signs and danger (fig. 1.7.2)
WARNING! With the m
achine connected to the electricity mains, do not work on the
electrical components. T
here is a risk of electric shock. Follow the instruc-tions referred
to on the plates. Failure to comply may cause injury.
Make sure the plates are present and readable.
If not, apply or replace them.
1.8 – Protection and safety devices
WARNING!
Before using the machine, check the correctness of the positioning of safety
devices and their integrity. Check their presence and efficiency at the begin-ning of each work
shift. If it is not right, contact the maintenance manager.
A
CAUTION
IT IS PROHIBITED TO USE
AN OUT-PUT MEAT PLATE
WITH A HOLE EQUAL TO
OR GREATER THAN
8
mm WITHOUT
ADEQUATE PROTECTION

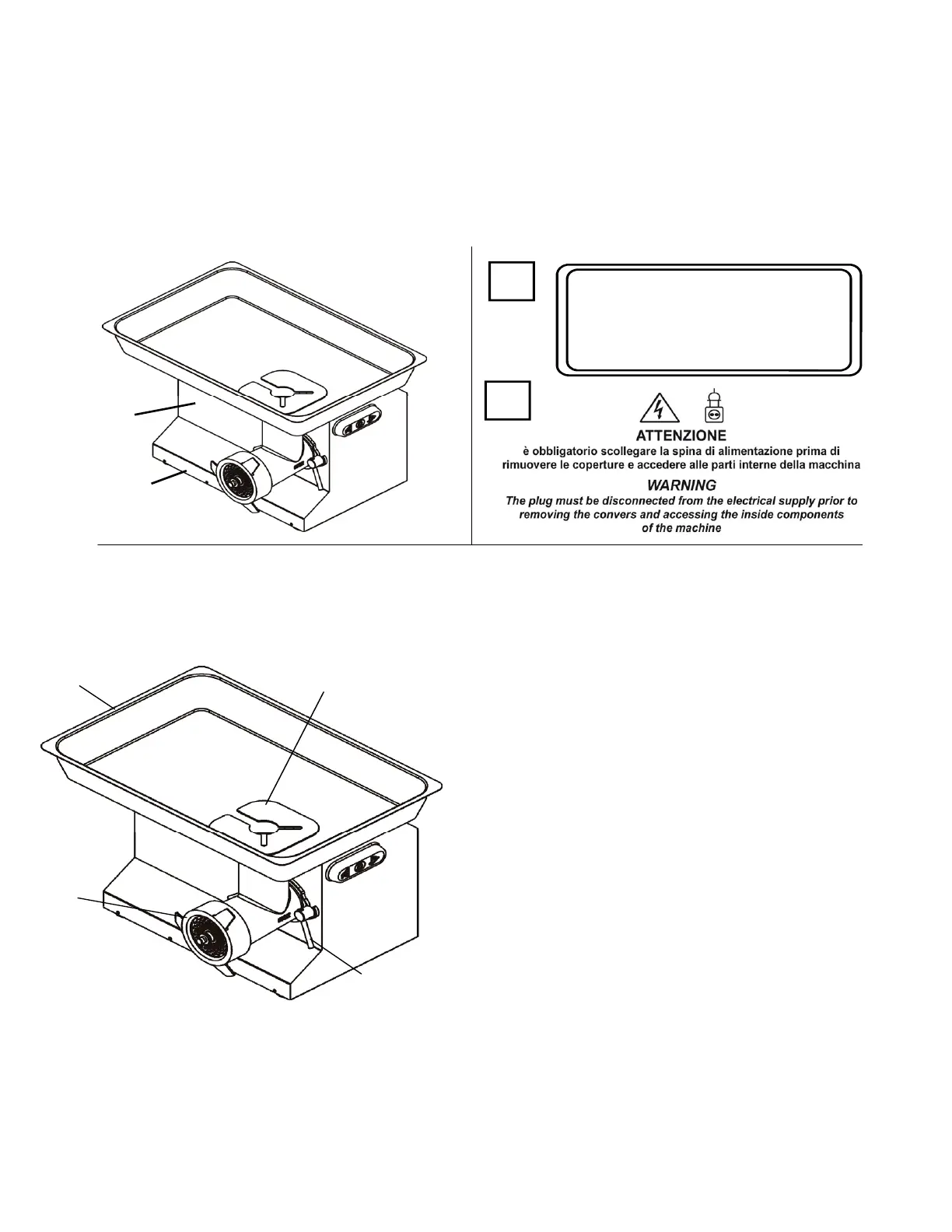

Fig. 1.7.2
B
A
B
2
3
1
Fig. 1.8.1
4
WARNING!
Do not tamper with the safety
devices for any reason.
1. Outlet feed of product, with holes in the bottom
plate up to 8 mm. In this case prevent the
introduction of the fingers inside the feed.
2. Stainless steel hopper rigidly set to the loading
feed.
3. Inlet lock nut. For correct operation of the meat
grinder, the inlet must be firmly tightened using
these lock nuts
4. Protective hand guard. The hopper, in the model,
shows the guard "2" Fig.1.8.1 rigidly fixed, in
accordance with the circular of the Ministry of
Labour and Social InsuranceNo. 66 of 05.09.79.
The smaller models do not require this guard due
to the small size of the loading feed
