39
GB

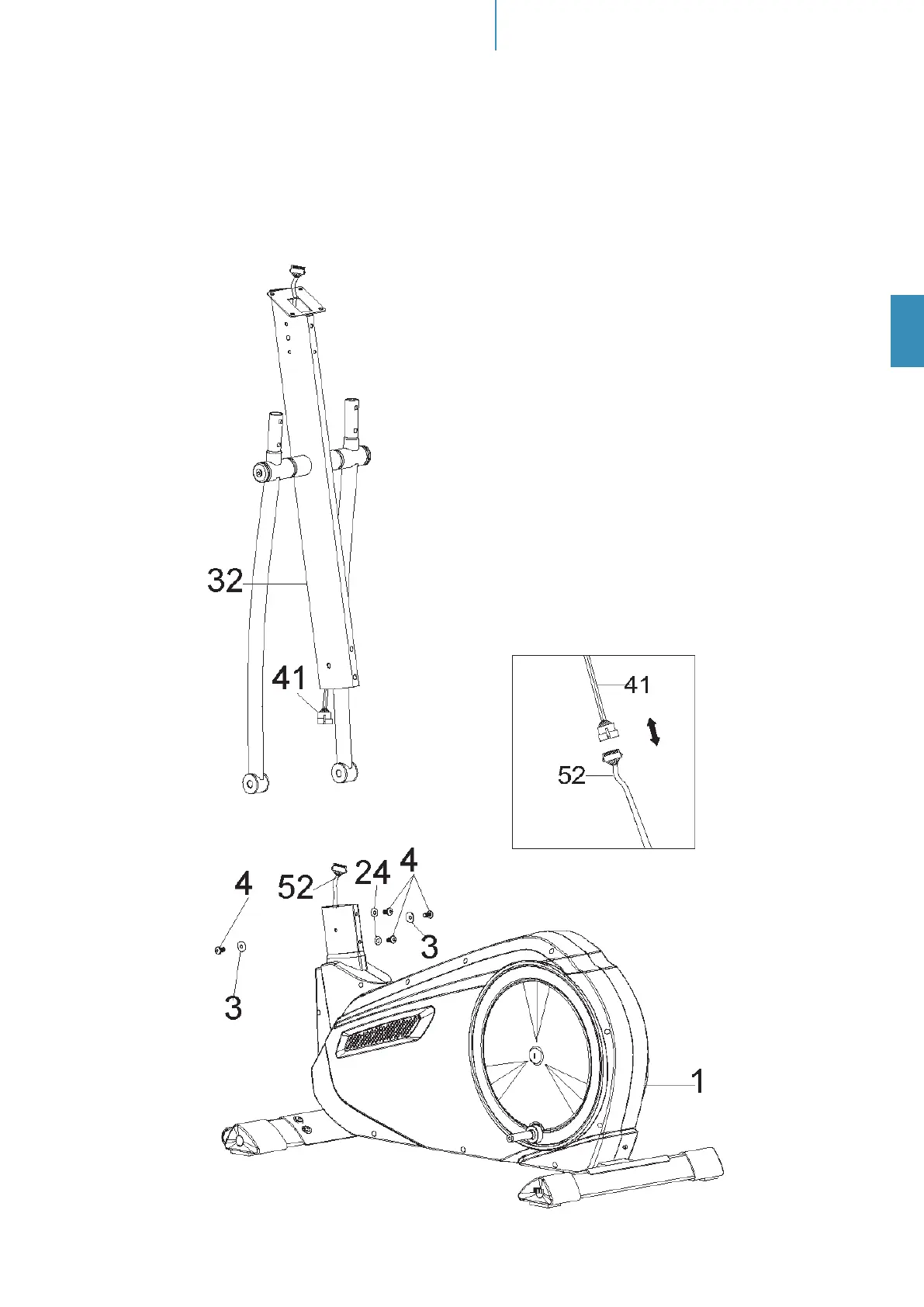

Step 2
Connect the upper and lower computer cables (41 & 52).
Secure the front post (32) to the main frame (1) with totally 4 Allen screws M8×16 (4), 2 washers (24)
and 2 curved washers (3) as shown.
ASSEMBLY INSTRUCTIONS
