ASSEMBLY INSTRUCTIONS

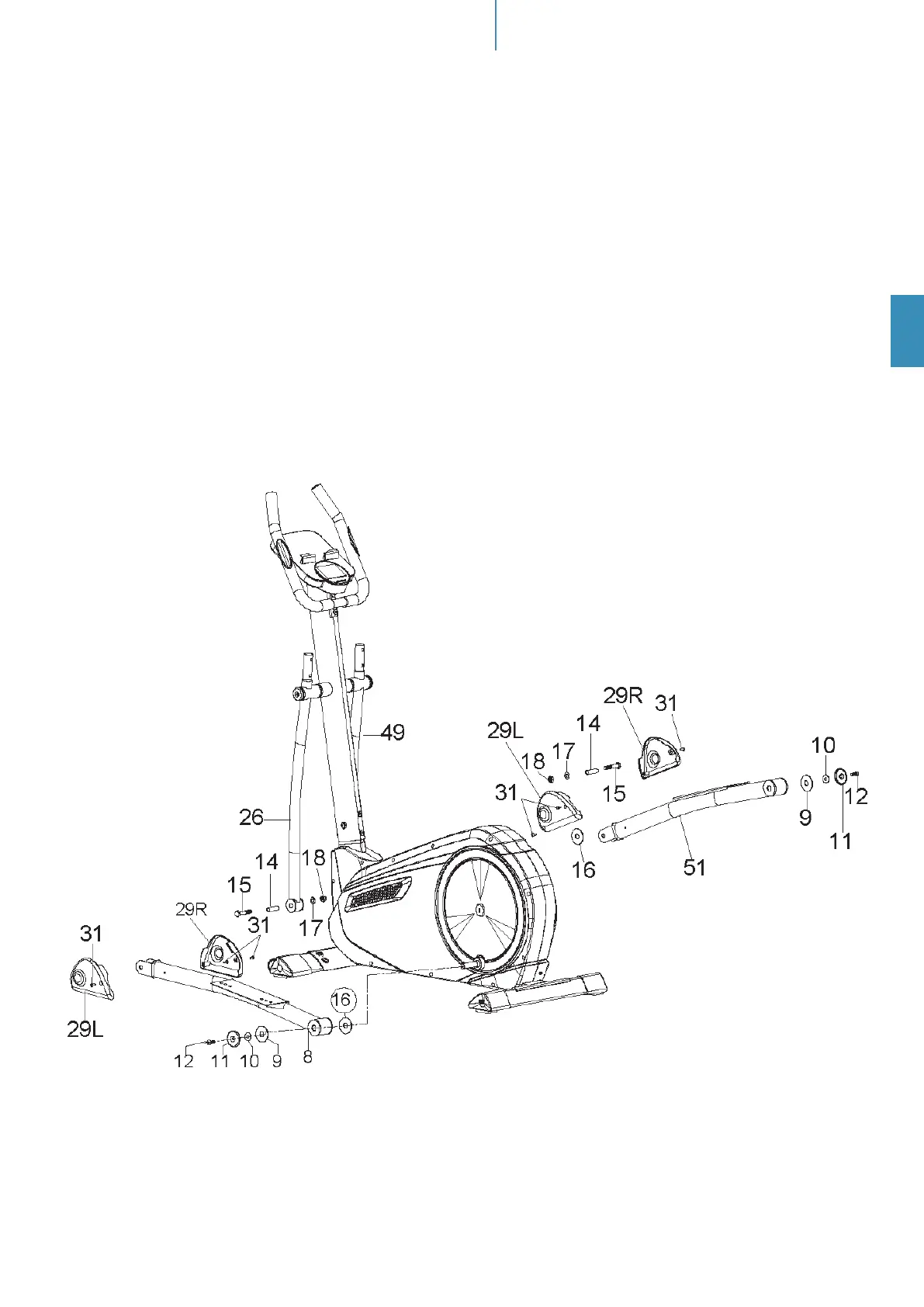

Step 4
Attach the left pedal tube (8) to the run disc (66) using a washer (16), a washer (9), a washer (10), a
cover (11) and an Allen screw M8×20 (12).
Slide the left lower handlebar tube (26) into the left pedal tube (8).
Align the holes and insert the sleeve (14). Then tighten with a set of washer (17), nut (18) and hex bolt (15).
Fit a cover (29L) and a cover (29R) to the left pedal tube (8) with 3 screws (31, pre-mounted on the
cover and pedal tube respectively).
Repeat the procedure for the right pedal tube (51) and the right lower handlebar tube (49).
