35) 12-Volt Power Outlet

A 12-volt electric appliance may be connected to that jack connector.

Electric current is supplied when ever engine is running. See Fuses

below for 12-volt power outlet fuse location.

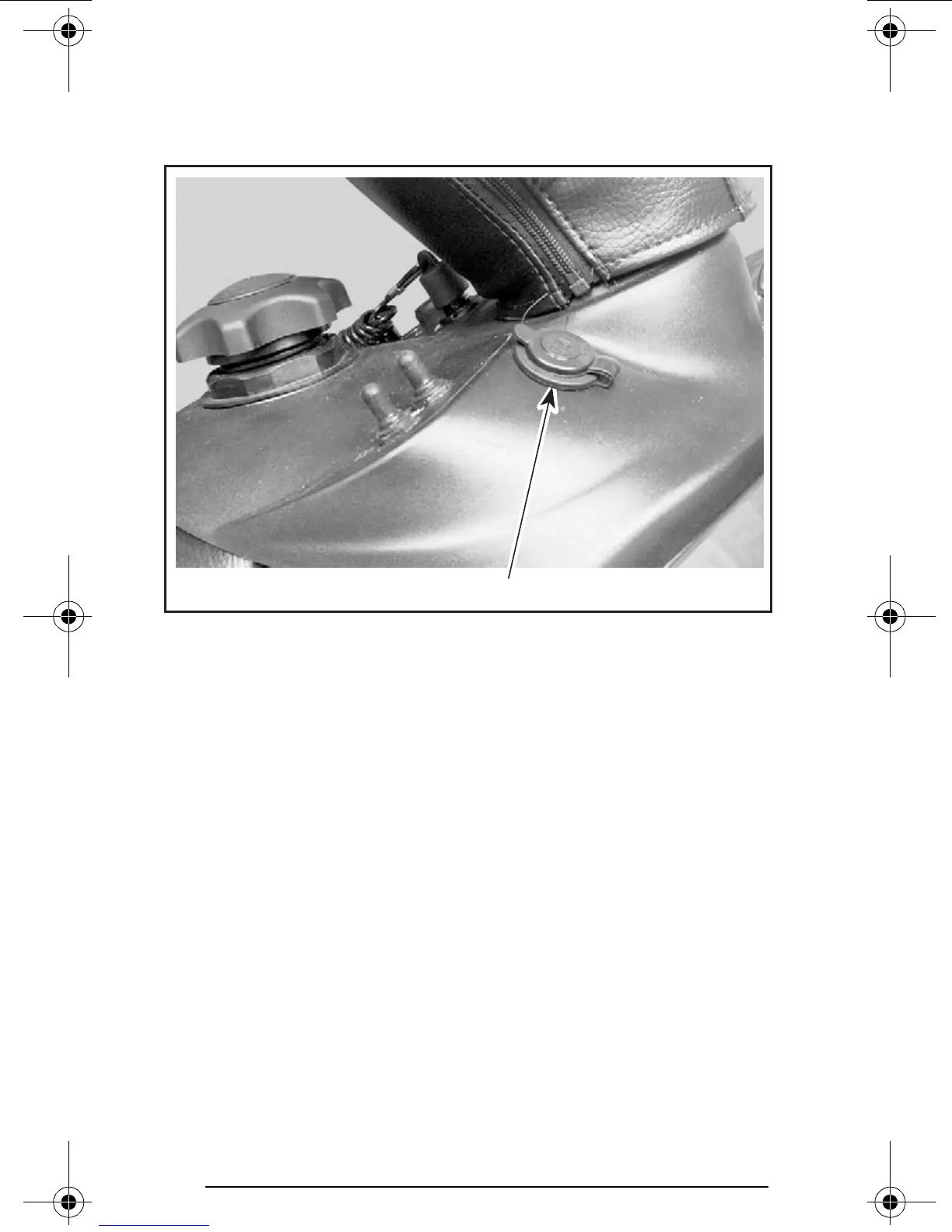

TYPICAL

1. 12-volt power outlet

A32E16A
