Section 01 LUBRIFICATION AND MAINTENANCE
Sub-Section 01 (LUBRIFICATION AND MAINTENANCE CHART)
01-01-1

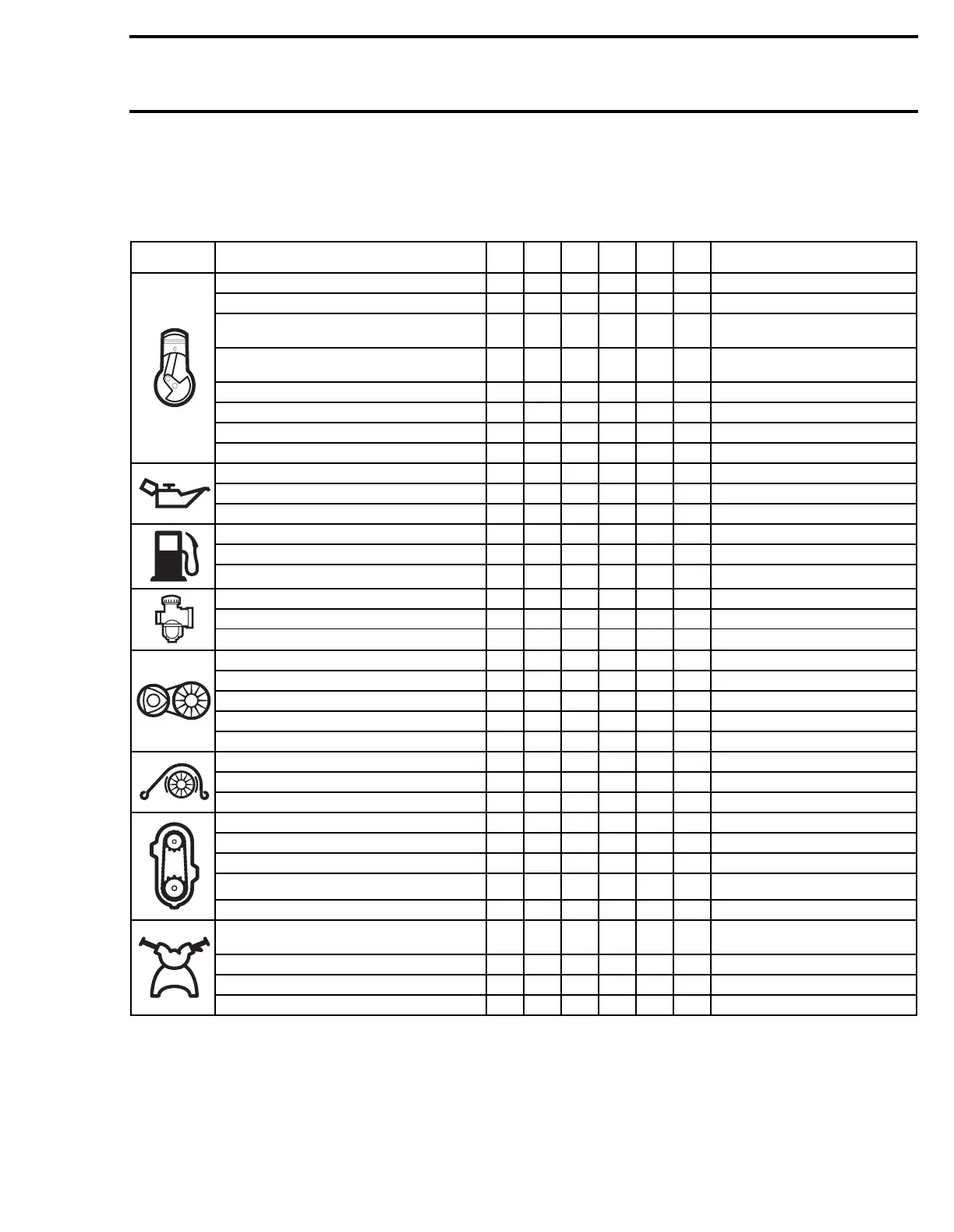

LUBRIFICATION AND MAINTENANCE
CHART 0
➀➁➂➃➄➅
REFER TO
Starting Rope Condition
✔
—
Engine Head Nuts
✔✔
Appropriate section: See Top End
Engine Mount Nuts
✔✔
Appropriate section: See ENGINE
REMOVAL
Exhaust System
✔✔
Appropriate section: See ENGINE
REMOVAL
Engine Lubrication
✔
This section no. 1
Cooling System Condition
✔✔
Sub-section 03-06
Coolant Replacement (Except Fan Cooled)
✔
Sub-section 03-06
Condition of Seals
✔
Sub-section 03-02
Injection Oil Filter Condition
✔
Sub-section 03-05
Injection Oil Filter Replacement
✔
Sub-section 03-05
Oil Injection Pump Adjustment
✔✔
Sub-section 03-05
Fuel Stabilizer
✔
This section no. 2
Fuel Filter Replacement
✔
This section no. 3
Fuel Lines and Connections
✔✔
Sub-section 03-09
Carburetor Adjustment
✔✔
Sub-section 03-08
Throttle Cable Inspection
✔✔✔
Sub-section 03-09
Air Filter Cleaning
✔
This section no. 4
Drive Belt Condition
✔✔
This section no. 5
Condition of Drive and Driven Pulleys
✔✔✔
Sub-sections 04-03 and 04-04
Cleaning of Drive and Driven Pulleys
✔
Sub-sections 04-03 and 04-04
Retorquing of Drive Pulley Screw
✔
Sub-section 04-03
Driven Pulley Preload
✔✔
Sub-section 04-04
Brake Condition
✔✔
Sub-section 04-06
Brake Adjustment
✔
Sub-section 04-06
Lubrication of Ratchet Wheel or Fluid Change
✔
Sub-section 04-06
Drive Chain Tension
✔✔
Sub-section 04-07
Countershaft Lubrication (S and F Series)
✔✔✔
Sub-section 04-06
Chaincase/Gearbox Oil Level
✔✔✔
Sub-section 04-07
Chaincase/Gearbox Oil Change
✔1 ✔
Sub-section 04-07
Lubrication of drive axle bearing
✔✔✔
Sub-section 06-04
Handlebar Bolts. Retorque to
26 N•m (19 Ibf•ft)
✔
Sub-section 07-02
Steering and Front Suspension Mechanism
✔✔✔
Sub-sections 07-02 and 07-03
Wear and Condition of Skis and Runners
✔✔
Sub-section 07-03
Steering and Ski Leg Camber Adjustment
✔✔
Sub-section 07-02
To Next Page
