Section 06 REAR SUSPENSION
Sub-Section 03 (DRIVE AXLE)
06-03-2
REMOVAL
Drain oil from chaincase. Release drive chain ten-
sion. Remove chaincase cover.
Raise and block rear of vehicle off the ground.
Remove suspension. Refer to SC-10 SUSPEN-
SION 06-02.
2,8, End Bearing Housing and Seal
Remove angle drive unit and coupling cable.
Remove chain and sprocket then circlip and bear-
ing from drive axle.
Pry oil seals from chaincase and end bearing
housing.
6,9,13, Drive Axle and Sprocket
Release drive axle sprocket from track and at the
same time, pulling the drive axle towards the end
bearing housing side.
Remove drive axle from vehicle.
DISASSEMBLY
4, Speedometer Drive Insert
Remove speedometer drive insert.

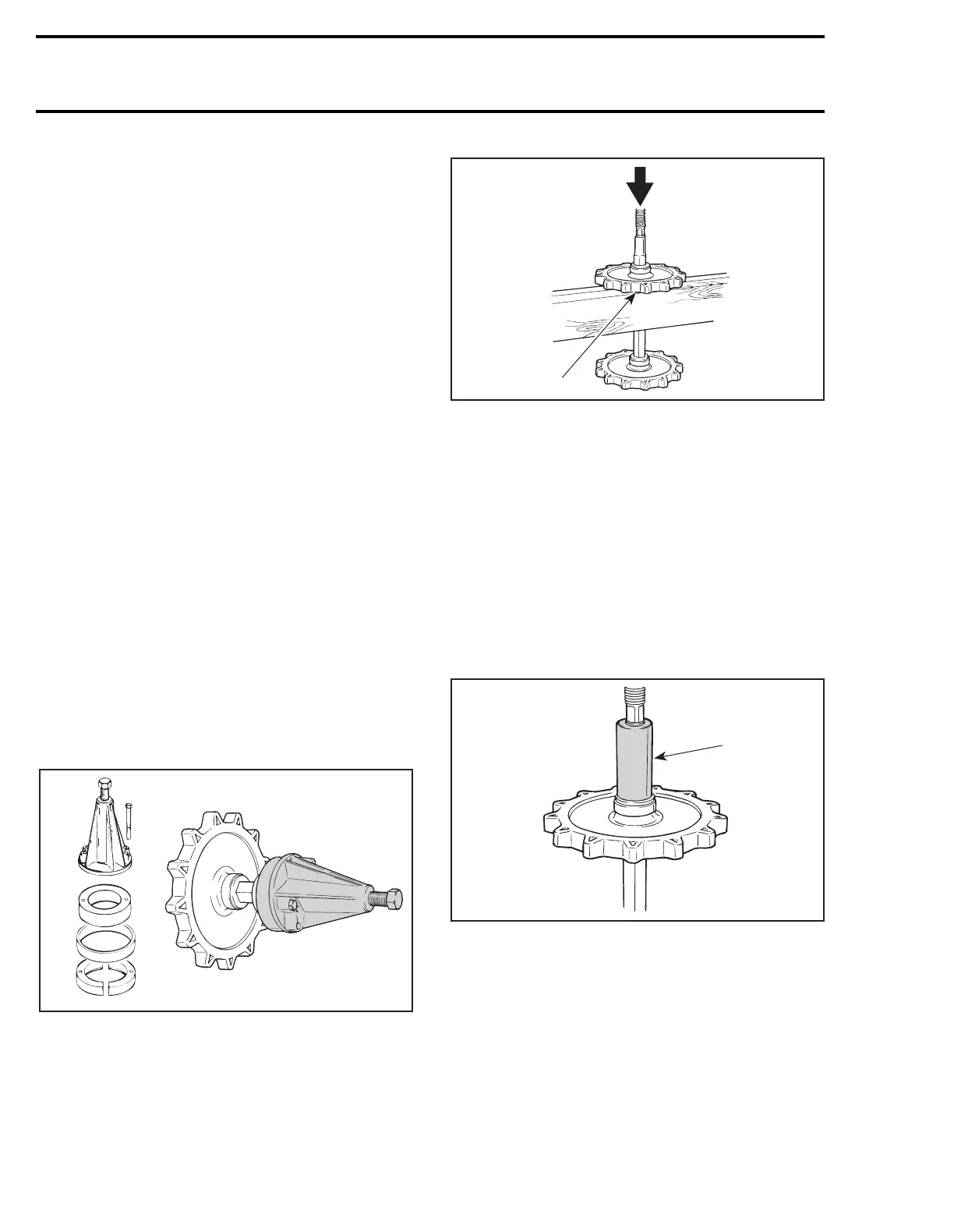

5,12, Bearing
To remove bearings, use puller assembly, ring and
half rings as illustrated.
9,13, Sprocket and Half-Sprocket
To remove press fit sprockets, use a press and a
suitable support as illustrated.
TYPICAL
1. Support sprocket near hub
NOTE:
Two different types of sprocket press fit
can be found. Ensure to replace ring reinforced
sprockets with the same type.
ASSEMBLY
8,9,13, Drive Axle and Sprocket
To assemble press fit sprockets, use a press and
a suitable pipe as illustrated. Sprockets must be
assembled according to the following dimen-
sions.
1. Pipe
A00C44A
A00F06A
1
A00F07A
1
