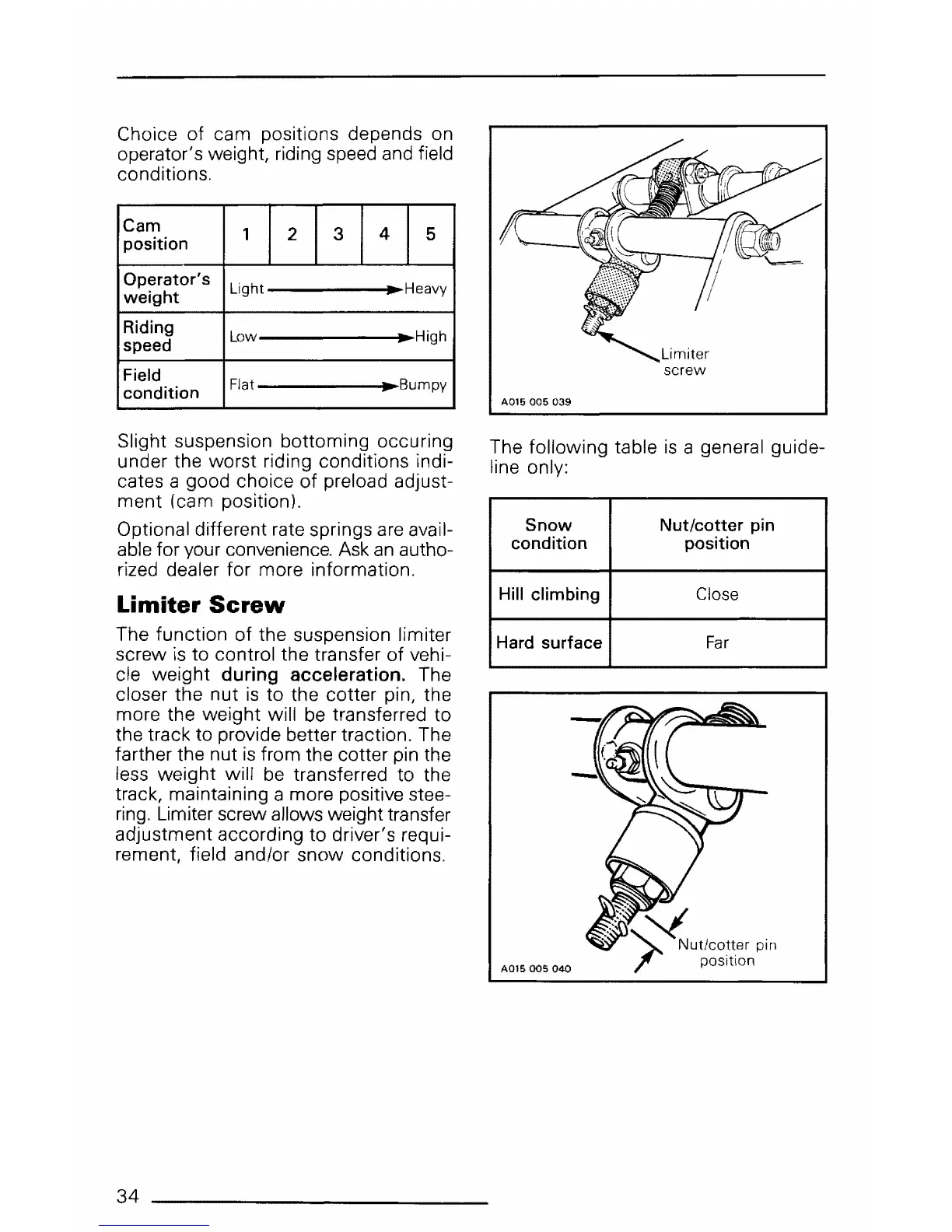

Choice of cam positions depends on
operatorls
weight
riding
speed
and
field
conditions.
Cam
1 2 3 4 5
position
Operator's
Light
Heavy
weight
Riding
Low
_ High
speed
Field
Flat
_ Bumpy
condition
Slight suspension bottoming occuring
under the worst riding conditions indi-
cates a good choice of preload adjust-
ment (cam position).
Optional different rate springs are avail-
able for your convenience.
Ask
an
autho-
rized dealer for more information.
Limiter
Screw
The function of the suspension limiter
screw
is
to control the transfer
of
vehi-
cle weight during acceleration. The
closer the nut
is
to the cotter pin, the
more the weight will
be
transferred to
the track to provide better traction. The
farther the nut
is
from the cotter pin the
less weight will
be
transferred to the
track, maintaining a more positive stee-
ring.
Limiter screw allows weight transfer
adjustment according to driver's requi-
rement, field and/or snow conditions.
34
screw
A015
005
039
The following table
is
a general guide-
line only:
Snow
Nut/cotter
pin
condition
position
Hill climbing
Close
Hard surface
Far
