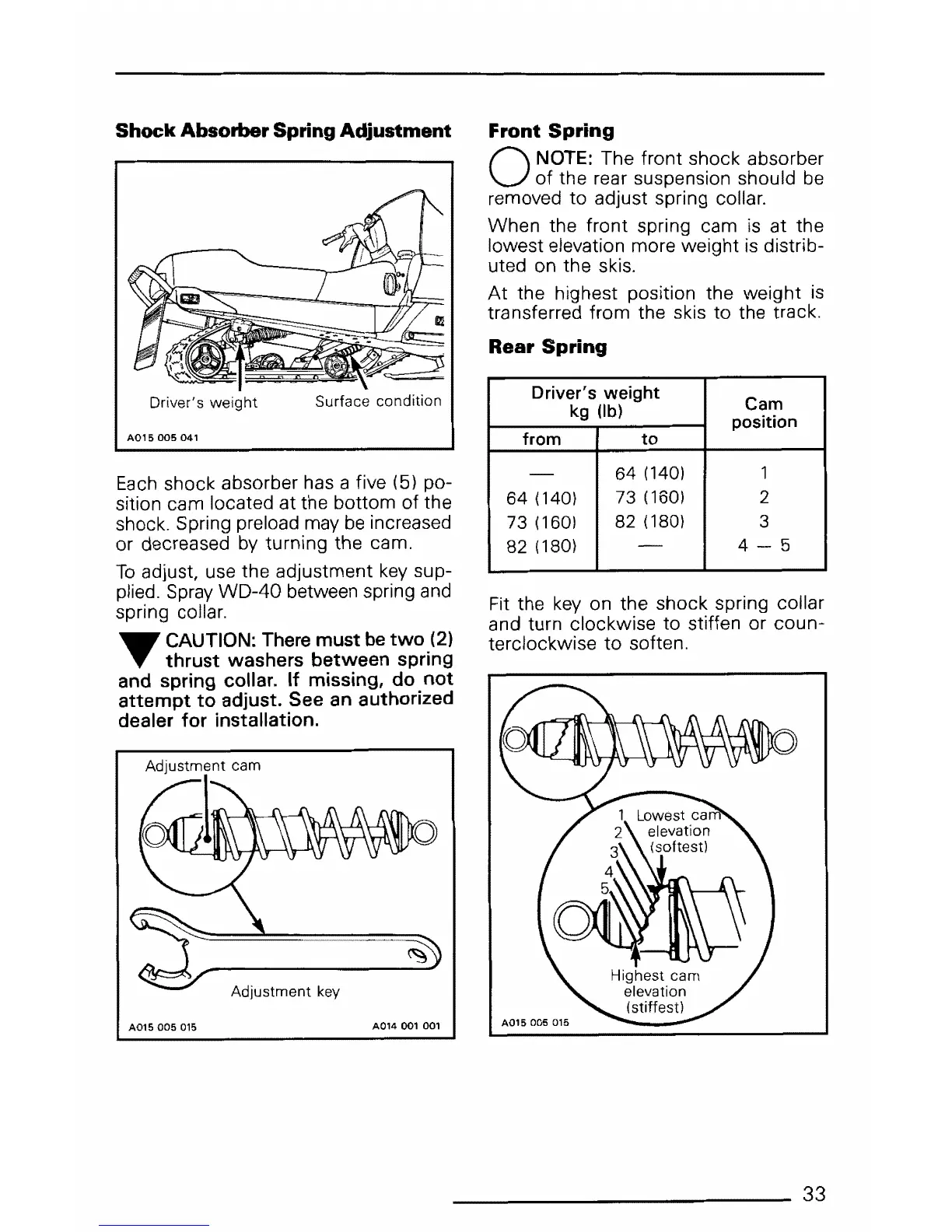

Shock Absorber Spring Adjustment
Driver's weight
Surface condition
A015
005
041
Each
shock absorber has a five (5) po-
sition cam located at the bottom of the
shock. Spring preload may
be
increased
or decreased
by
turning the cam.
To
adjust, use the adjustment
key
sup-
plied. Spray WD-40 between spring
and
spring collar.
,...
CAUTION: There must
be
two (2)
T thrust washers between spring
and spring collar. If missing,
do
not
attempt to adjust. See
an
authorized
dealer for installation.
Adjustment
key
A015
005
015
A014 001 001
Front
Spring
0
NOTE: The front shock absorber
of
the rear suspension should
be
removed to adjust spring collar.
When the front spring cam
is
at the
lowest elevation more weight
is
distrib-
uted on the skis.
At
the highest position the weight
is
transferred from the skis to the track.
Rear
Spring
Driver's weight
Cam
kg
(lb)
position
from
to
-
64 (140) 1
64
( 140)
73 (160)
2
73 (160)
82 (180)
3
82 (180}
4-5
Fit the
key
on the shock spring collar
and turn clockwise to stiffen or coun-
terclockwise to soften.
33
