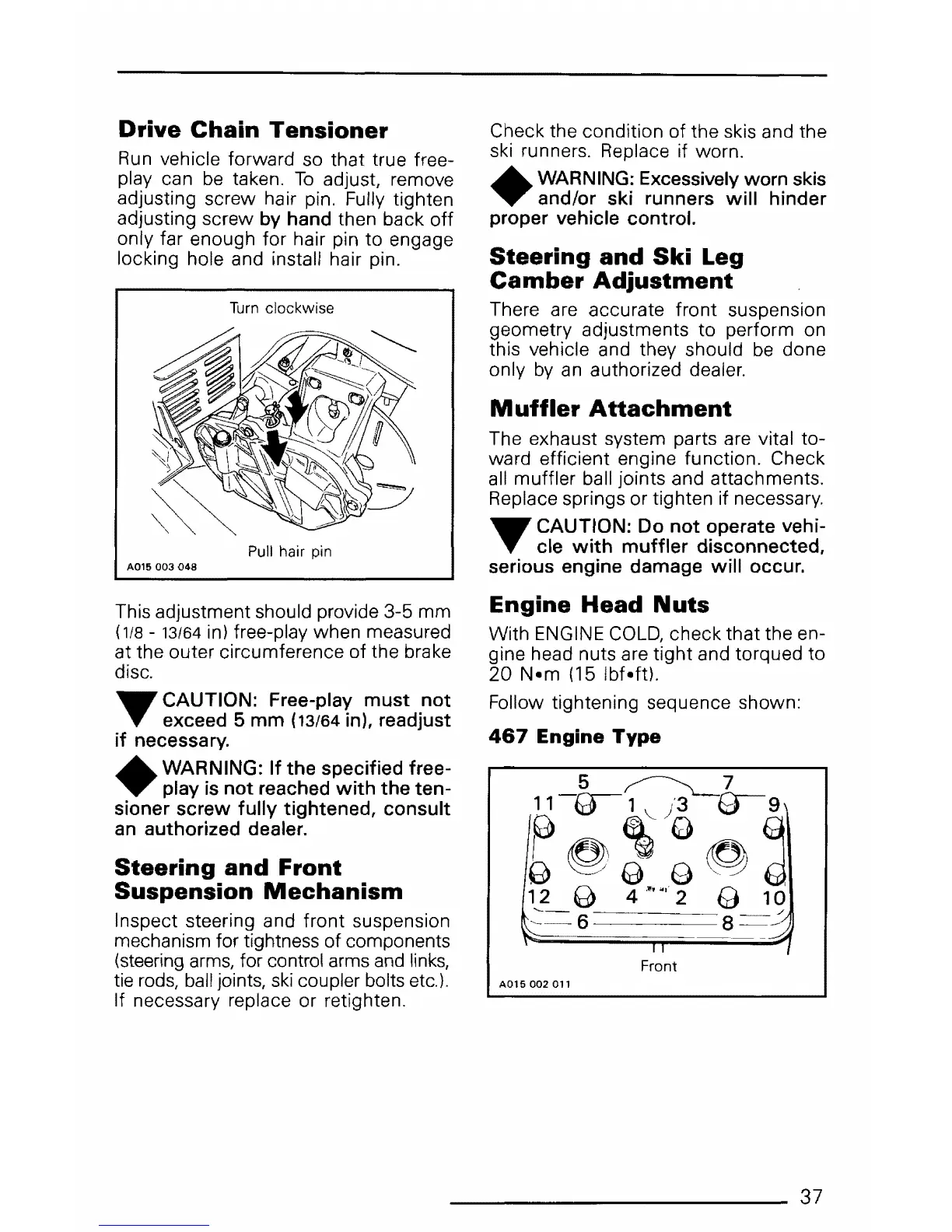

Drive
Chain
Tensioner
Run vehicle forward so
that
true free-
play can be taken.
To
adjust/ remove
adjusting
screw
hair pin. Fully tighten
adjusting
screw
by
hand
then back
off
only
far enough
for
hair pin
to
engage
locking hole and install hair pin.
Turn clockwise
Pull hair pin
A015
003
048
This adjustment should provide 3-5
mm
( 1/8 - 13/64 in} free-play
when
measured
at
the
outer
circumference
of
the brake
disc.
,.,.
CAUTION:
Free-play
must
not
,.-
exceed 5
mm
(13/64 in),
readjust
if
necessary
.
.A..
WARNING:
If
the
specified
free-
T play is
not
reached
with
the
ten-
sioner
screw
fully
tightened,
consult
an
authorized
dealer.
Steering
and
Front
Suspension
Mechanism
Inspect steering and
front
suspension
mechanism for tightness
of
components
(steering arms, for control arms and links,
tie rods, ball joints, ski coupler bolts etc.).
If necessary replace or retighten.
Check the
condition
of
the
skis and
the
ski runners. Replace if worn.
.A.. WARNING: Excessively
worn
skis
T
and/or
ski
runners
will
hinder
proper
vehicle
control.
Steering
and
Ski
Leg
Camber
Adjustment
There are accurate
front
suspension
geometry
adjustments
to
perform on
this vehicle and they should be
done
only
by
an authorized dealer.
Muffler
Attachment
The exhaust system parts are vital
to-
ward
efficient
engine function. Check
all
muffler
ball joints and attachments.
Replace springs or tighten if necessary.
,.,.
CAUTION:
Do
not
operate
vehi-
T cle
with
muffler
disconnected,
serious
engine
damage
will
occur.
Engine
Head
Nuts
With
ENGINE COLD/ check
that
the
en-
gine head nuts are
tight
and torqued
to
20
N•m
(15
lbf•ft).
Follow tightening sequence shown:
467
Engine Type
Front
A015
002
011
37
