WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile. When you ride the
vehicle, brake pads that are caused
to drag by a continuous pressure
on the lever may cause damage to
the brake system and cause loss of
braking capacity and/or fire.

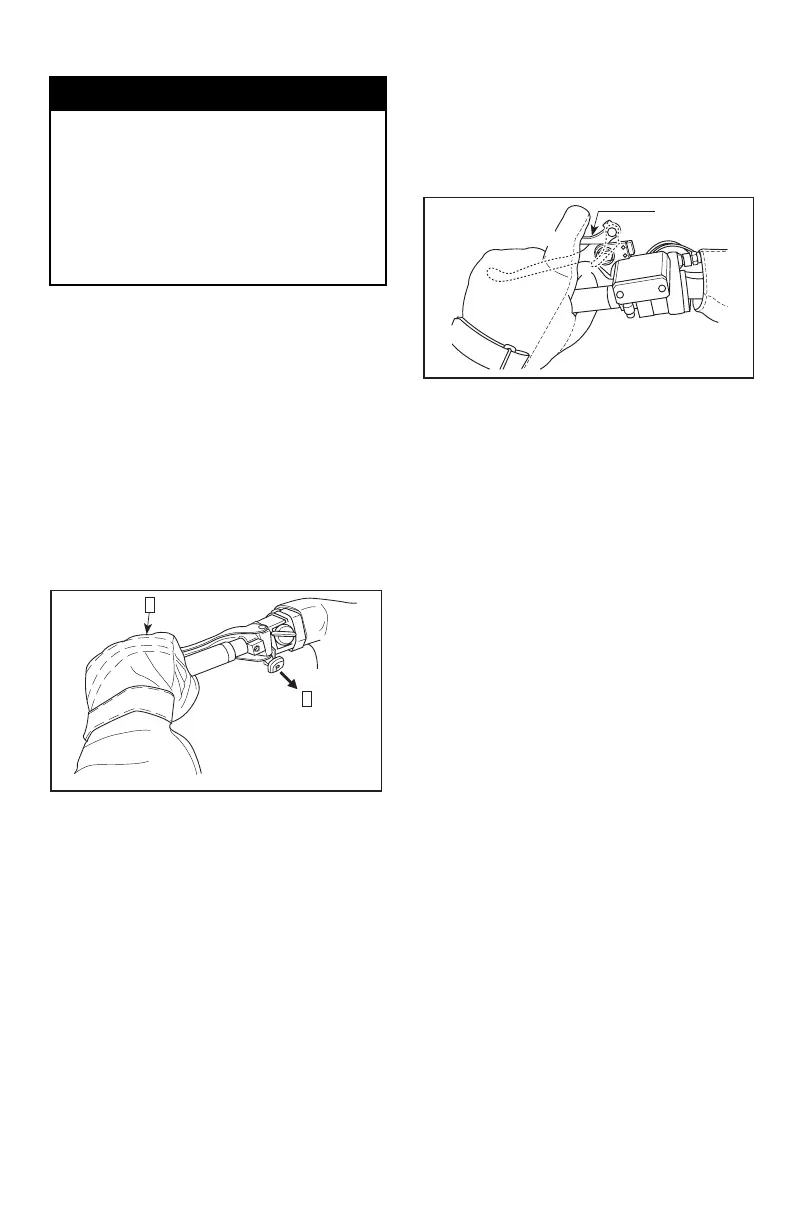

Mechanical Brake
Skandic LT/LT E
To engage
mechanism, squeeze
brake lever and maintain while pulling
button with the other hand. There
are 2 retaining notches on button; pull
button until it locks on a notch, then
release brake lever.
To release
mechanism, squeeze
brake lever, then fully push parking
brake button. Always release parking
brake before riding.
A25H30A
1
2
TYPICAL
1. Squeeze and hold
2. Fully pull
Hydraulic Brake
All Models Except Skandic
LT/LT E
To engage
mechanism, squeeze
brake lever and maintain while pulling
locking lever with a finger. When
brake lever is held at half-way the
parking brake should be fully applied.
To release
mechanism, squeeze
brake lever. Locking lever will auto-
matically return to its original position.
Always release parking brake before
riding.
A06D11A
1
22
3
TYPICAL
1. Locking lever
2. OFF
3. ON
4) Brake/Parking Brake/
Low Oil Level Pilot
Lamp (Red)
Lights when brake or parking brake is
applied (with engine running).
This pilot lamp also lights up when in-
jection oil level is low (with engine run-
ning). Check oil level and replenish as
soon as possible.
5) Gear Shift Lever or RER
Button
Mechanical Reverse
All Models Except Skandic
LT/LT E
These models are equipped with a me-
chanical reverse controlled by a 4-posi-
tion gear shift lever.
_____________________
39
