EXPEDITION TUV V-1000 — EXPANSION
RESERVOIRNEARMUFFLER
1. Maximum
2. Minimum
Exhaust System
The tail pipe of the muffler should be
centered with the exit hole in the bot-
tompan. Itmustbefreeofrustor
leaks. Make sure that gear clamps are
properly tightened.
The exhaust system is designed to re-
duce noise and to improve the total
performance of the engine. Modifica-
tion may be in violation of local laws.
CAUTION: If any exhaust system
component is removed, modified
or damaged, severe engine dam-
age may result.
Injection Oil Level
CAUTION: Vehiclemustbeonalev-
el surface before checking any fluid
levels.
Always maintain a sufficient amount
of recommended injection oil in the
injection oil reservoir.
CAUTION: Never allow oil reservoir
to be almost empty.
WARNING
Check level and refill every time
you refuel. Do not overfill. Wipe
off any spillage. Oil is highly
flammable when heated.

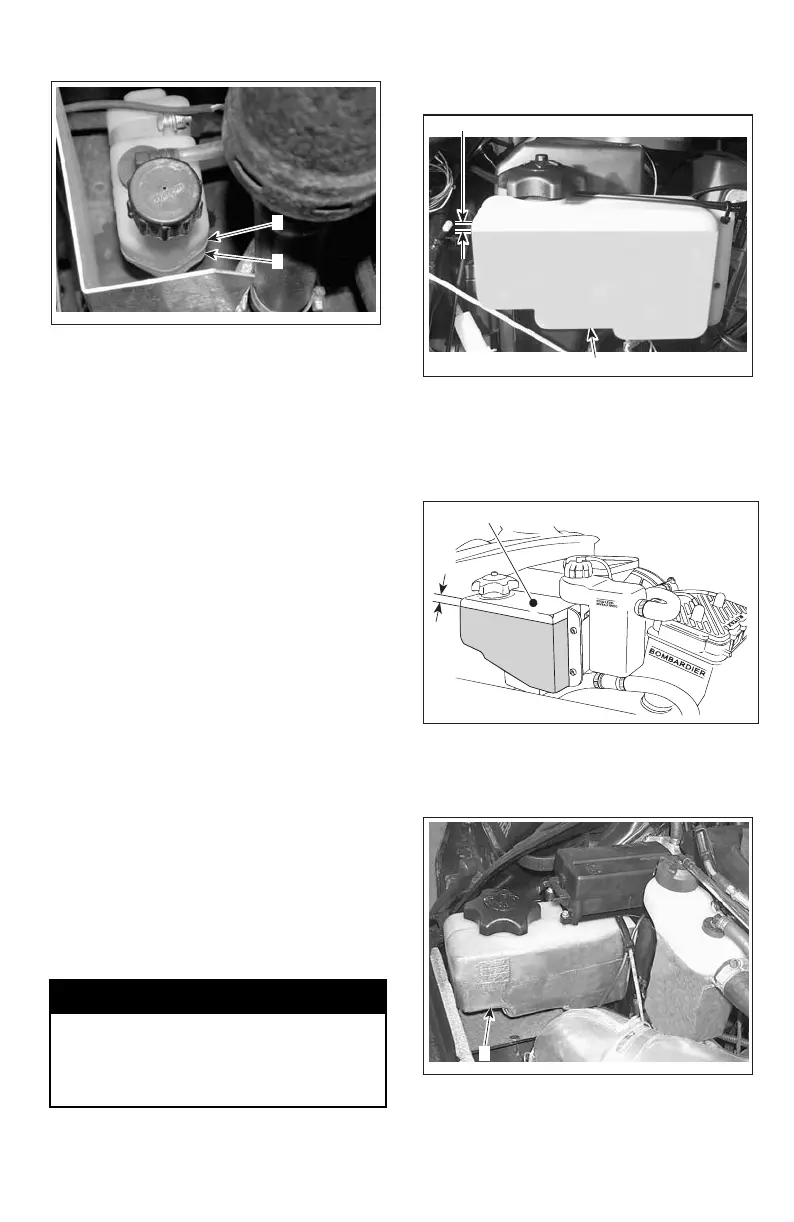

Skandic LT/LT E/WT 550/SWT
A29C0CA
1
2
TYPICAL
1. Injection oil reservoir
2. Maximum level: 13 mm (1/2 in) from top
Skandic WT 600/SUV 550/
SUV 600
A29C0BA
1
2
1. Injection oil reservoir
2. Maximum level: 13 mm (1/2 in) from top
Expedition TUV 600 HO SDI
A29C32A
1
1. Injection oil reservoir
