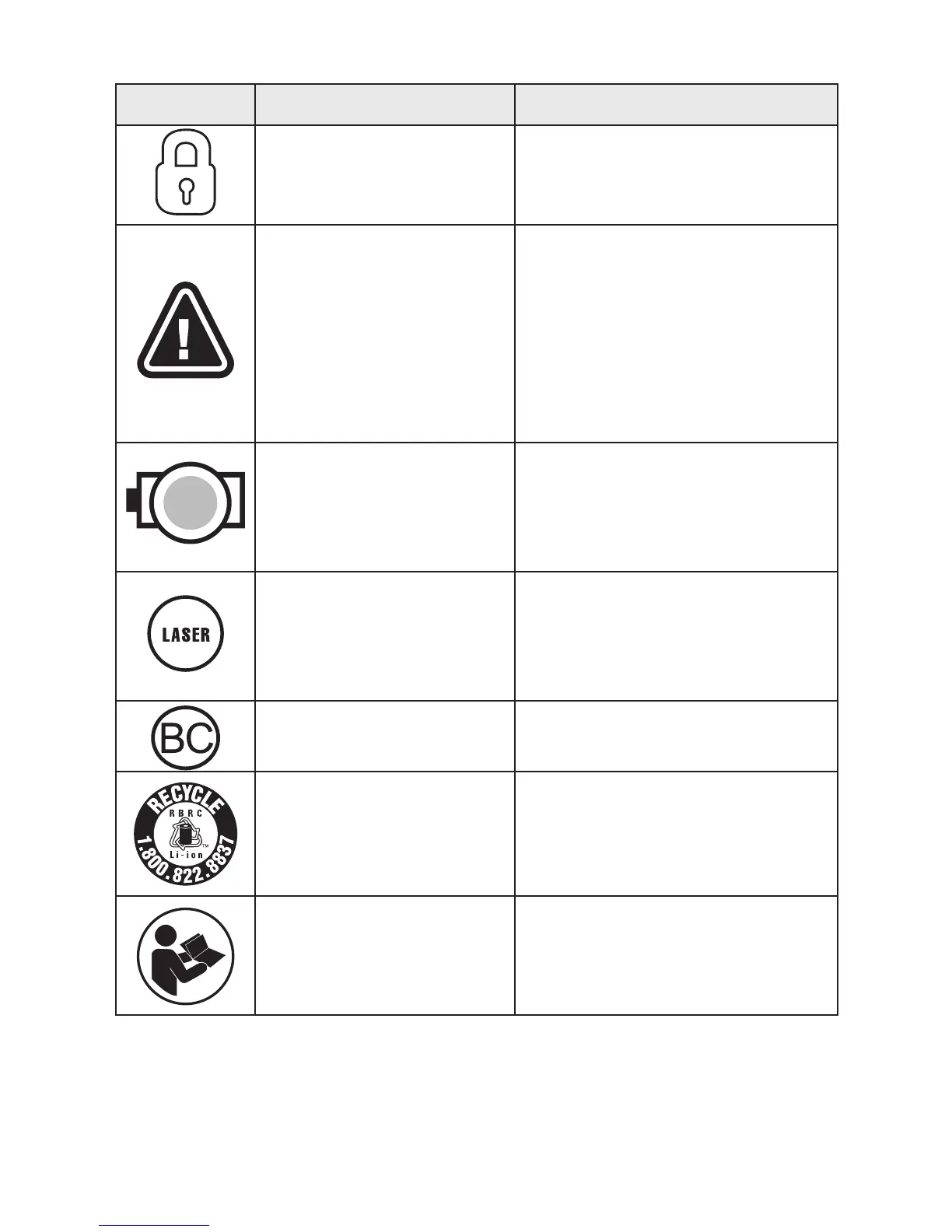

Symbol Name Designation/Explanation
Lock Icon
Push the mode switch in the
direction of the icon, the tool
will be turned off and locked
LED Indicator for
Leveling Status
If the tool is placed exceeds
the self-leveling range
(±4°from horizontal) in self-
leveling mode, or when the
tool is working in manual
leveling mode, it will
illuminate in red.
LED Indicator for
Battery Capacity
The color status varies with
the battery capacity the tool
rests during charging and
normal usage
Laser Button
To turn the compact self-
leveling cross line laser on
and off in manual leveling
mode
CEC Energy Efciency
Logo
CEC certication logo for
battery charging system
Li-ion RBRC seal
Designates Li-ion battery
recycling program
Read manual symbol Alerts user to read manual
