35

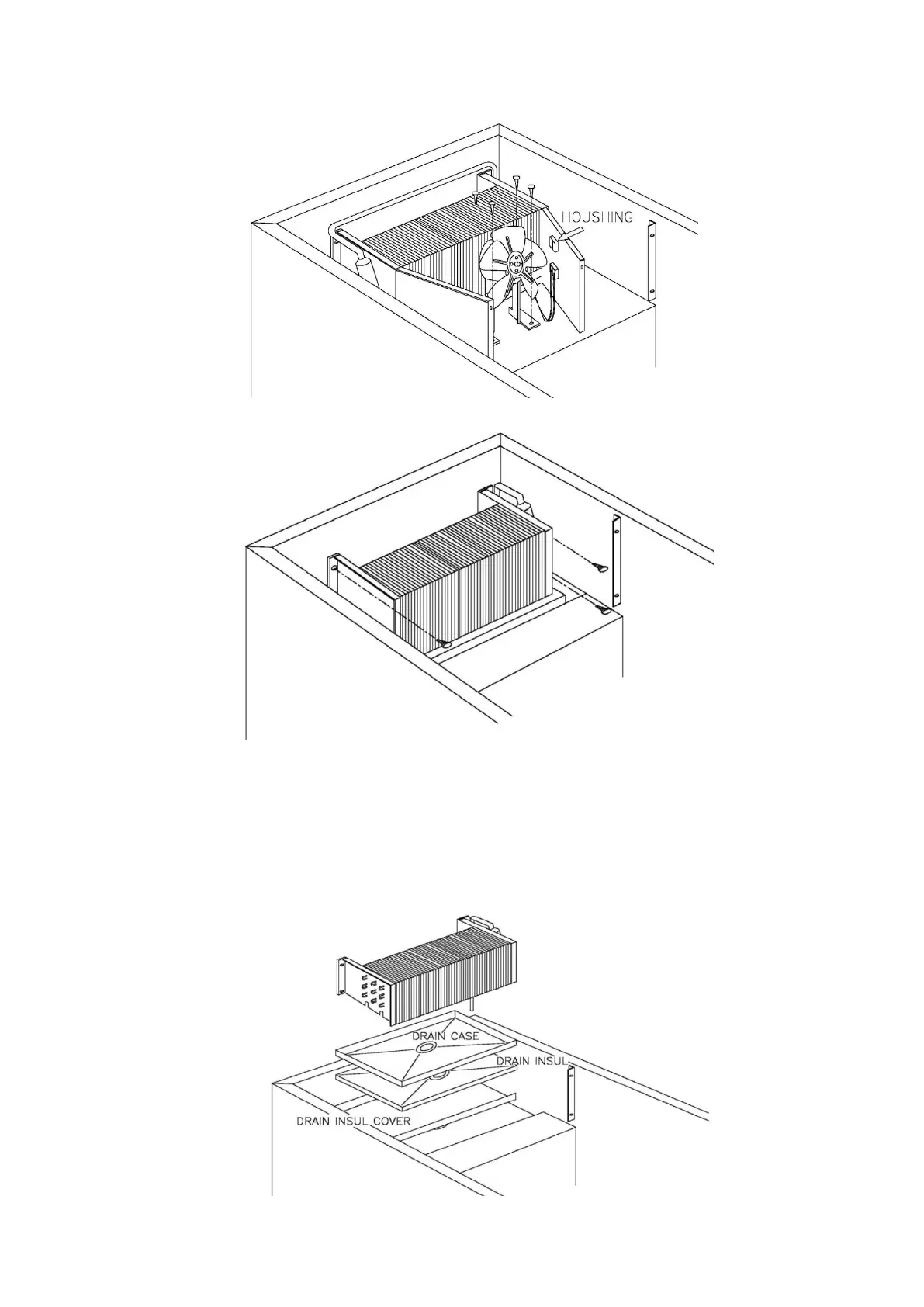

Unscrew Evap Motor Bracket.
Remove Evap.
4-6.Remove Evaporator
Disassemble Counter Top and Evap Motor, then do as below.
Unscrew Air Guide, disconnect sensor connector, and take apart Air Guide.
