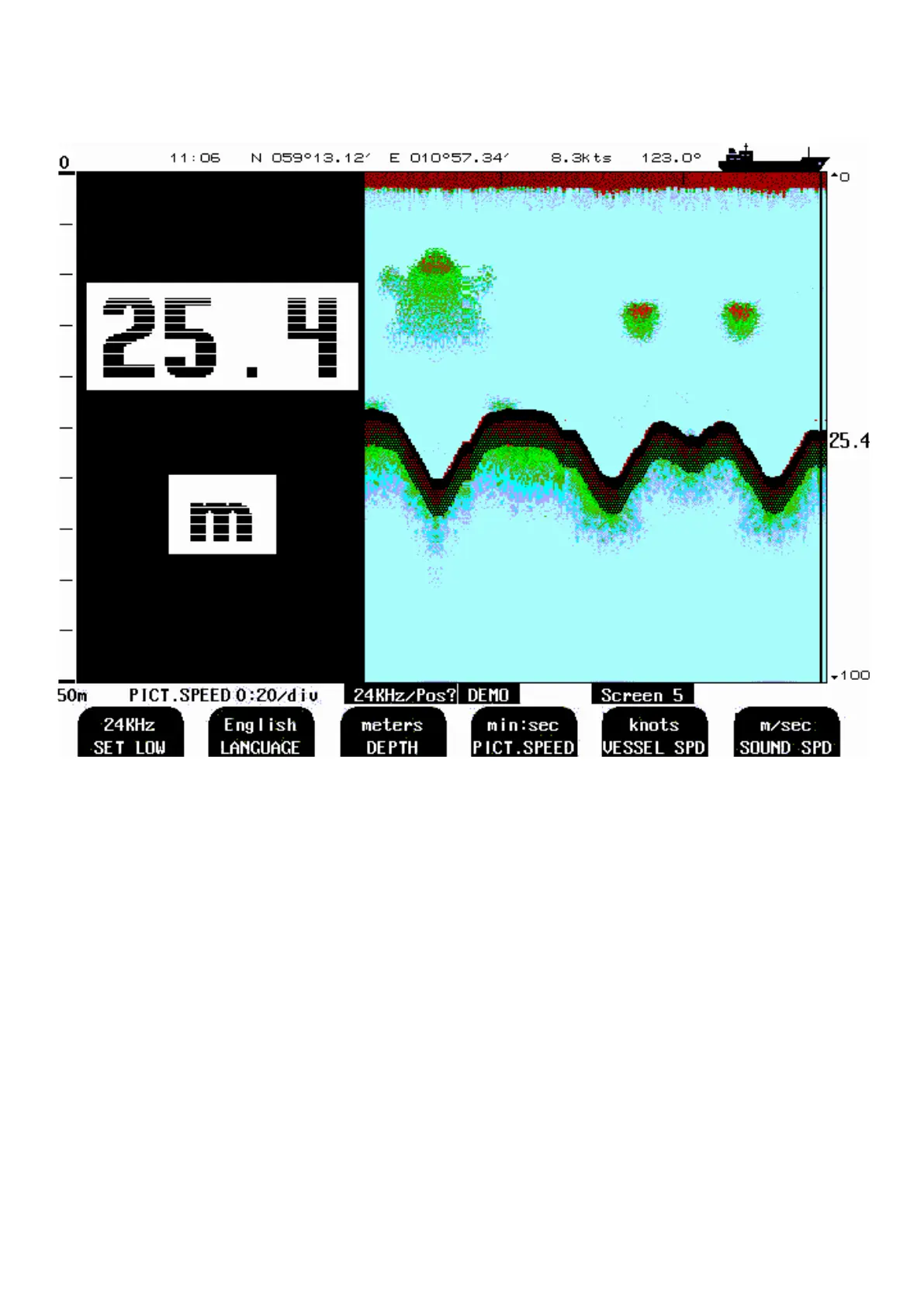

Fig. 2.6 Screen 5, Language and units of measure Setup.
This screen shows the main graphic echo-gram. Left hand digital indication may be enabled from screen 2.
Soft Key 1. SET LOW 24/28/30/33/38KHz Adjust indicated frequency of lower frequency channel.
(see chapter 5. Low frequency indication )
Soft Key 2 LANGUAGE English etc. Screen language selection.
Soft Key 3 DEPTH m etc. Unit of measurement for depth.
Soft Key 4 PICT.SPEED m:s/div etc. Unit of measurement for picture speed.
Soft Key 5 VESSEL SPEED knots etc. Unit of measurement for vessel speed.
Soft Key 6 SOUND SPEED m/s etc. Unit of measurement for sound speed.
To Next Page
