– Cut the damage section of wire out of the vehicle's single
cable.

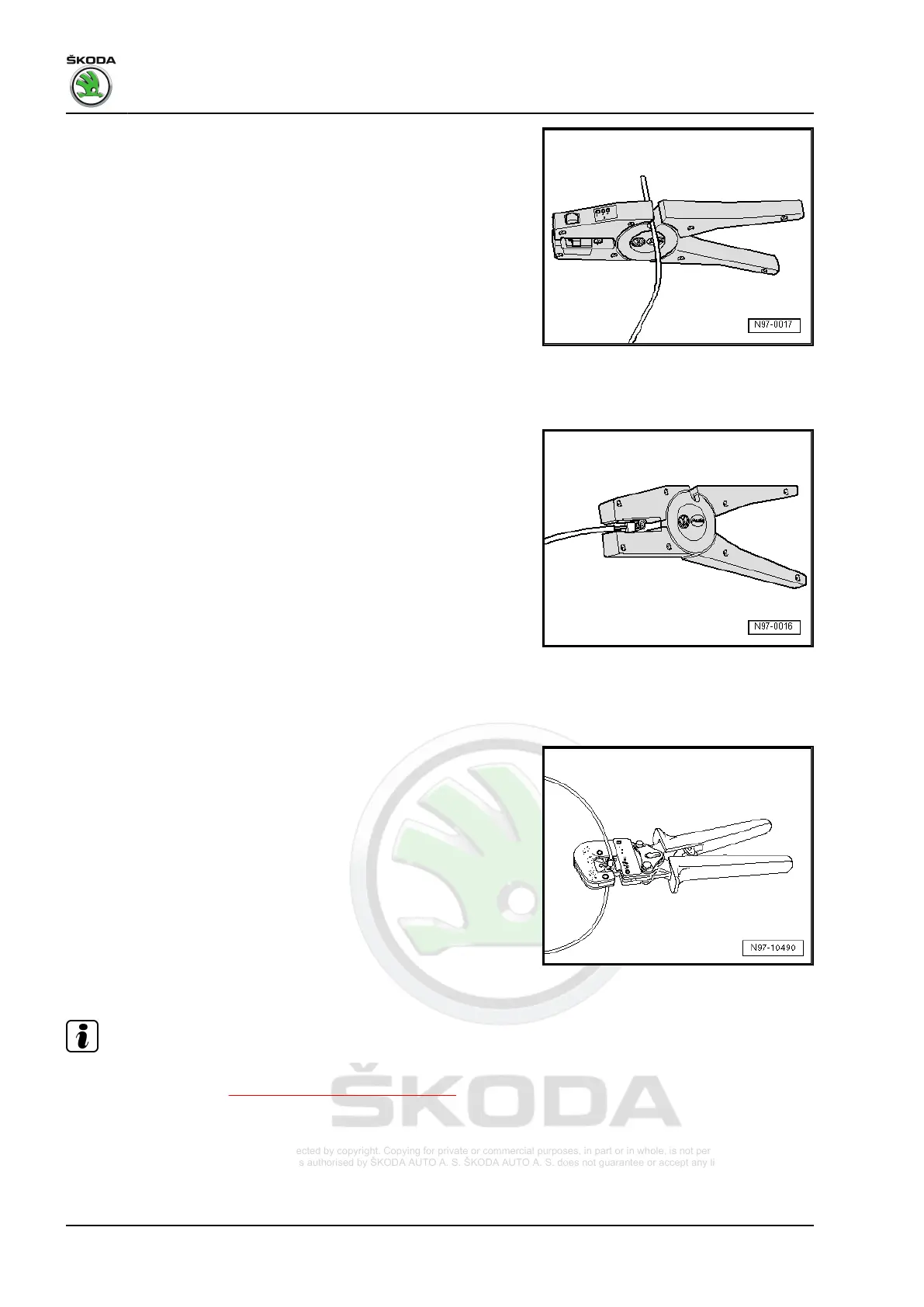

– Strip the ends of the wire by 6-7 mm with the wire stripper.
– Slide the crimp connector on one side onto the vehicle's
single cables and on the other side onto the repair wire.
– Use the crimping pliers to crimp the crimp connector with the
two ends of wire.
– Repeat this procedure on the other end of the repair wire.
Note
♦
You must ensure that the correct crimping recess is used for
the crimp connector ⇒ p2.3.1 lier with insert”, page 43 .
♦
The insulation of the cable must not be crimped at the same
time.
After crimping, the crimp connector must be shrunk with the
hot-air blower in order to prevent moisture from penetrating.
