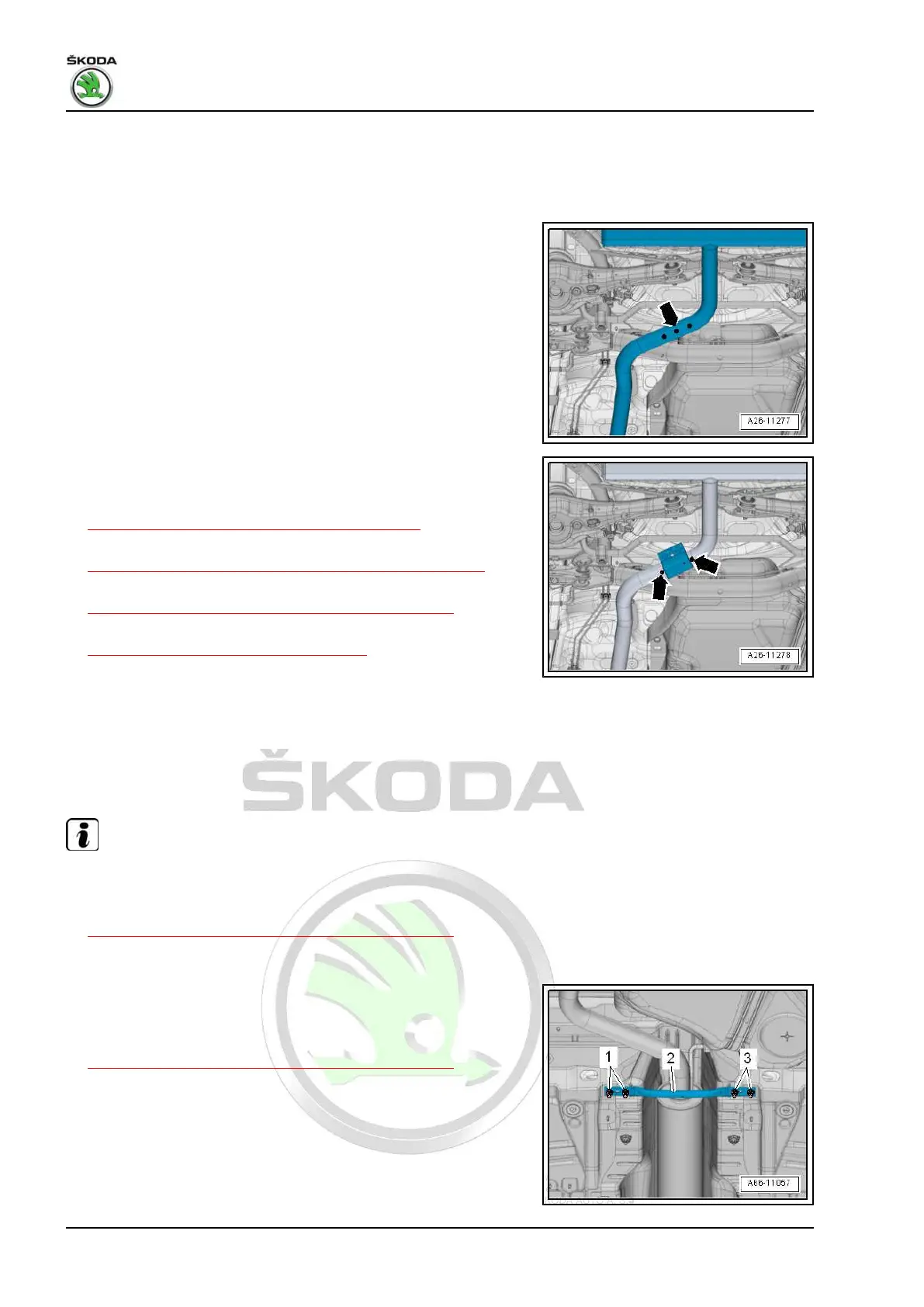

♦ The separating point is marked on the circumference of the
exhaust gas pipe.
♦ The separation point is in the area of the rear axle.
Work procedure
– Cut the exhaust pipe on a right angle along the cutting line
-arrow-.
– Position clamping sleeve centrally to the side markers during
installation -arrows-.
– Note installation position of clamp
⇒ “1.1 Assembly overview - silencers”, page 381 .
– Check the exhaust system for leaktightness
⇒ “1.7 Inspecting the exhaust system for leaks”, page 397 .
– Align exhaust system free of stress
⇒ “1.6 Align exhaust system free of stress”, page 396 .
– Align exhaust tailpipe
⇒ “1.9 Align exhaust tailpipes”, page 400 .
1.4 Removing and installing middle silencer
1.4.1 Removing and installing middle sound
damper, Karoq
Note
♦
For first equipment building unit with rear silencer, replace in‐
dividually when carrying out repairs.
♦
Pay attention to the split cut
⇒ “1.3 Separating exhaust pipes/silencers”, page 391 .
Removing
– Remove rear tunnel bridge -2-.
Vehicles with no clamping sleeve
– Cut the exhaust pipe at a right angle along the split cut
⇒ “1.3 Separating exhaust pipes/silencers”, page 391 .
Karoq 2018 ➤ , Kodiaq 2017 ➤
1.6/85; 2.0/110; 130; 140 kW TDI CR engine - Edition 06.2017
392 Rep. gr.26 - Exhaust system
