13 – Crankshaft group
1 Cylinder block (pulley end)
⇒ “1.1 Assembly overview - cylinder block (pulley end)”,
page 35
⇒ “1.2 Summary of components - sealing flange on the belt pulley
side”, page 37
⇒ “1.3 Removing and installing V-ribbed belt”, page 38
⇒ “1.4 Removing and installing tensioning pulley for V-ribbed
belt”, page 39
⇒ “1.5 Removing and installing vibration damper”, page 39
⇒ “1.6 Removing and installing bracket for auxiliary units”,
page 40
⇒ “1.7 Removing and installing engine support”, page 41
⇒ “1.8 Removing and installing the sealing flange on the belt pul‐
ley side”, page 43

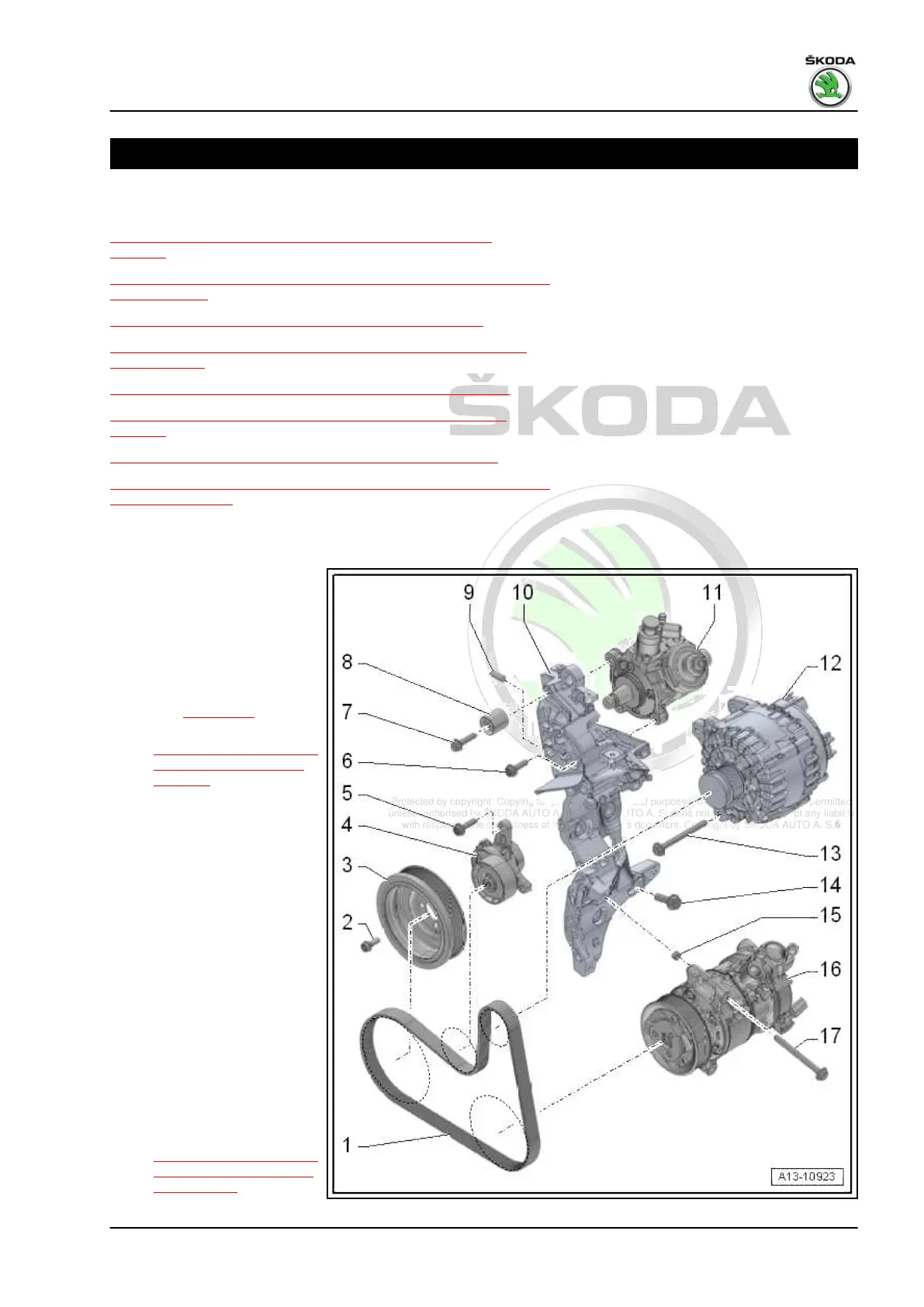

1.1 Assembly overview - cylinder block (pulley end)
1 - V-ribbed belt
❑ check for wear
❑ mark the direction of ro‐
tation with chalk or a felt-
tip pen before removing
❑ do not kink
❑ Routing of the ribbed V-
belt ⇒ page 38
❑ Removing and installing
⇒ “1.3 Removing and in‐
stalling V-ribbed belt”,
page 38
❑ pay attention to the cor‐
rect position on the belt
pulley when installing it.
2 - Screw
❑ Replace after disas‐
sembly
❑ ⇒ ETKA - Electronic
catalogue of original
parts
❑ 10 Nm + 90°
3 - Vibration damper
❑ with V-ribbed belt pulley
❑ Installation position:
Bore in the vibration
damper must be posi‐
tioned above the eleva‐
tion on the crankshaft
toothed belt sprocket
❑ Removing and installing
⇒ “1.5 Removing and in‐
stalling vibration damp‐
er”, page 39
Karoq 2018 ➤ , Kodiaq 2017 ➤
1.6/85; 2.0/110; 130; 140 kW TDI CR engine - Edition 06.2017
1. Cylinder block (pulley end) 35
