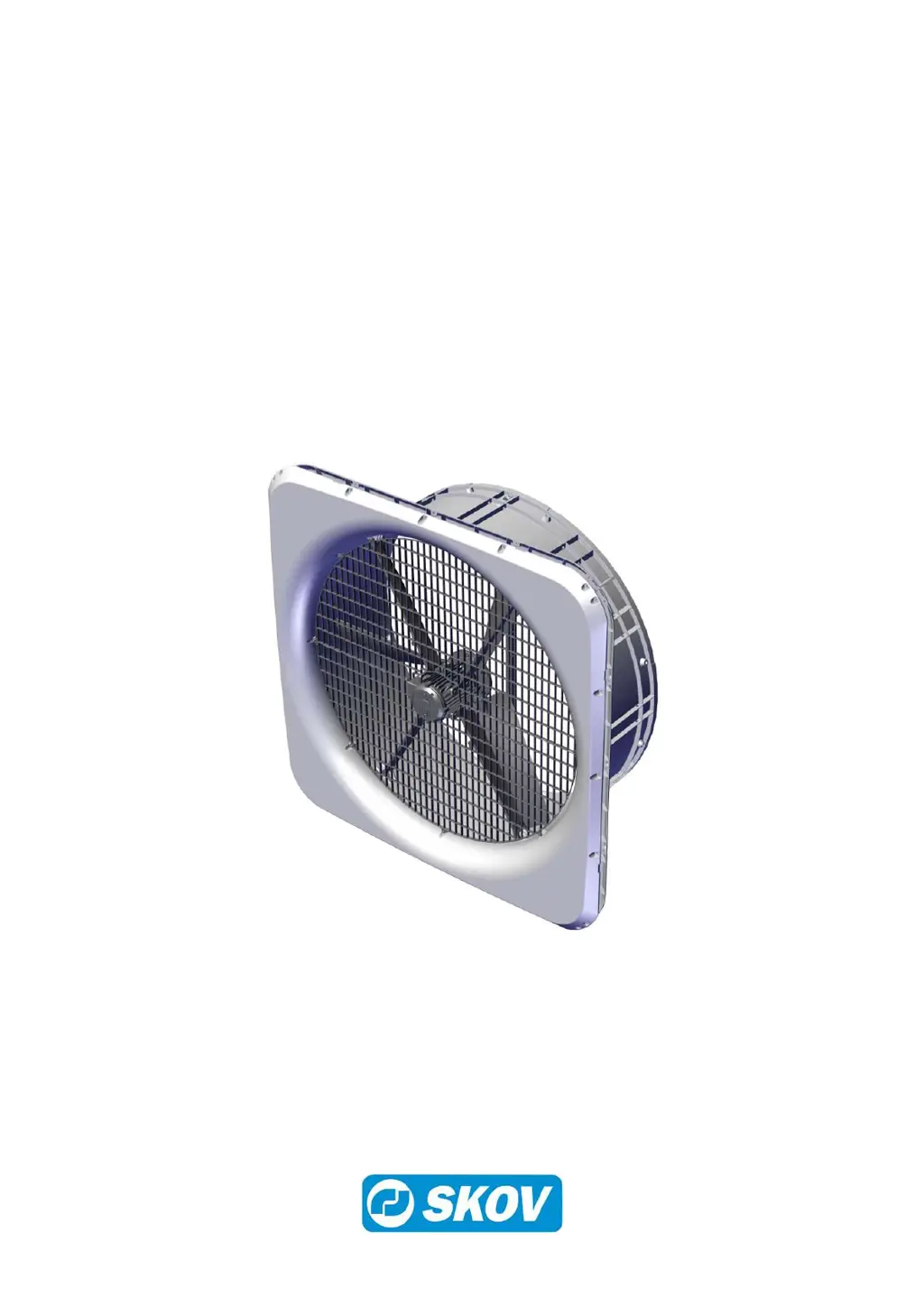

BF 55 Wall Fan

Without Cone and Shutter

Technical User Guide

S604449A • 2023-10-16

Table of Contents

Questions and Answers:

M
Melvin RyanAug 7, 2025
Why is my Skov BF 55 Fan motor not running?
- N
  Nicole BrownAug 7, 2025
  Several factors can cause the Skov Fan motor to stop running. It could be due to the fuse switching off, so you should check the fuse size and replace the motor protection with the correct size. Also, a blocked fan motor or too high negative pressure in the livestock house may be the cause; remove any blockages and check the air inlets. Alternatively, the issue might stem from the climate controller signal, start/stop signal, power supply, or a defective LPC motor controller. Check these elements accordingly.
A
Andrew WallaceAug 13, 2025
How to fix abnormal noise coming from Skov BF 55 Fan?
- D
  Diane BlackwellAug 13, 2025
  Abnormal noise from the Skov Fan can stem from several causes. Check the mounting according to the provided document and retighten if necessary. Bearing noise may require you to replace the motor. Also, inspect the fan blades for defects, correct assembly, or dirt; replace or clean them as needed.
C
christine17Aug 19, 2025
What to do if my Skov BF 55 has reduced performance?
- R
  Robert HensleyAug 20, 2025
  Reduced performance in your Skov Fan can arise from a few reasons. The internal temperature of the LPC motor controller might be too high. If the negative pressure in the livestock house is too high, check the air inlets. Replacing the LPC motor controller may resolve an error in the internal circuit of the LPC. High ripple voltage can also be a factor, so measure the supply phases.
S
Steven MilesAug 25, 2025
Why Skov BF 55 stopped after several restart attempts?
- P
  Phillip EspinozaAug 26, 2025
  If the Skov Fan stops after 5 restart attempts due to the same error within 60 minutes, several issues could be the cause. Measure the supply voltage if it is too high or low. Check for motor errors if the current consumption of the motor is too high. Measure the voltage between the phases if there are phase errors. Remove any blockages if the impeller is blocked. Invert the rotation direction if it's wrong. Measure the voltage going to the motor if there is a phase error on the motor supply. Replace the LPC motor controller if there is an internal communication error.
S
Susan Miller DVMAug 31, 2025
What to do if Skov BF 55 Fan motor is not running?
- B
  Blake BarnettAug 31, 2025
  If the Skov Fan motor isn't running, check the signal from the controller if the signal from the climate controller indicates a stop (10V at terminal 5). Verify the signal from the winch motor if the start/stop signal indicates a stop (24 V at terminal 8). Ensure there's power from the power supply. If none of these resolve the issue, the LPC motor controller may be defective, requiring replacement.

Skov BF 55 Specifications

General

Brand	Skov
Model	BF 55
Category	Fan
Language	English

Summary

Product Description

Product Survey

Mounting Guide

Recommended Tools

List of tools required for mounting the wall fan.

Placement of Wall Fan

Guidance on positioning the wall fan within the livestock house.

Preparing Hole in Wall

Instructions and specifications for creating the wall opening.

Measure and Saw Out Holes

Steps for accurately cutting the mounting holes in the wall.

Press Front Panel Together

Procedure for assembling the front panels of the fan unit.

Mounting Ventilation Duct on Front Panel

How to attach the ventilation ducts to the fan's front panel.

Mounting Center Pillar

Instructions for installing the central support pillar.

Mounting Center Pillar on Ventilation Duct

Attaching the center pillar to the ventilation duct assembly.

Mounting in Wall

Steps for securing the fan unit into the prepared wall opening.

Mounting Top Motor Suspension

How to attach the motor suspension components.

Mounting Impeller

Detailed instructions for installing the fan impeller.

Mounting Motor in Fan Housing

Securing the motor within the fan's main housing.

Cabling from Fan Motor

Guidance on connecting the electrical cables from the fan motor.

Foaming and Pointing Outside

Sealing the exterior gap between the fan and the wall.

Pointing of the Inside

Sealing the interior gap between the fan and the wall.

Mounting Wall Cover Outside

Attaching the external protective covers to the fan unit.

Attaching Warning Label

Instructions for placing safety and warning labels.

Mounting Inside Safety Net

Securing the internal safety net within the fan.

Installation Guide

Electrical Connection

General guidelines for connecting the fan's electrical system.

Connection in LPC Motor Controller/Frequency Converter

Details on terminal connections within the motor controller.

LED Indication on Motor Controller/Frequency Converter

Explains the meaning of LED status indicators on the controller.

Alarms

Overview of critical and non-critical alarms and their handling.

Connection to Kick ON Timer

Information on connecting and configuring the Kick ON timer.

General Information about Circuit Diagrams

Explains symbols and standards used in circuit diagrams.

Cable Plans and Circuit Diagrams

Presents electrical wiring diagrams and cable layouts.

Maintenance Instructions

Cleaning

Procedures for cleaning the fan and its components.

Recycling/Disposal

Information on proper recycling and disposal of the product.

Troubleshooting Instructions

Troubleshooting Fan Motor

Identifies common fan motor issues and their solutions.

Troubleshooting LPC Motor Controller

Lists common LPC motor controller errors and their resolutions.

Technical Data

BF 55 LPC HF 400V3

Detailed technical specifications for the BF 55 LPC HF 400V3 model.

Dimensioned Sketch

Provides dimensional drawings of the fan and motor controller.
