Skov BF 55 - Connection to Kick ON Timer

BF 55 Wall Fan
Technical User Guide 33

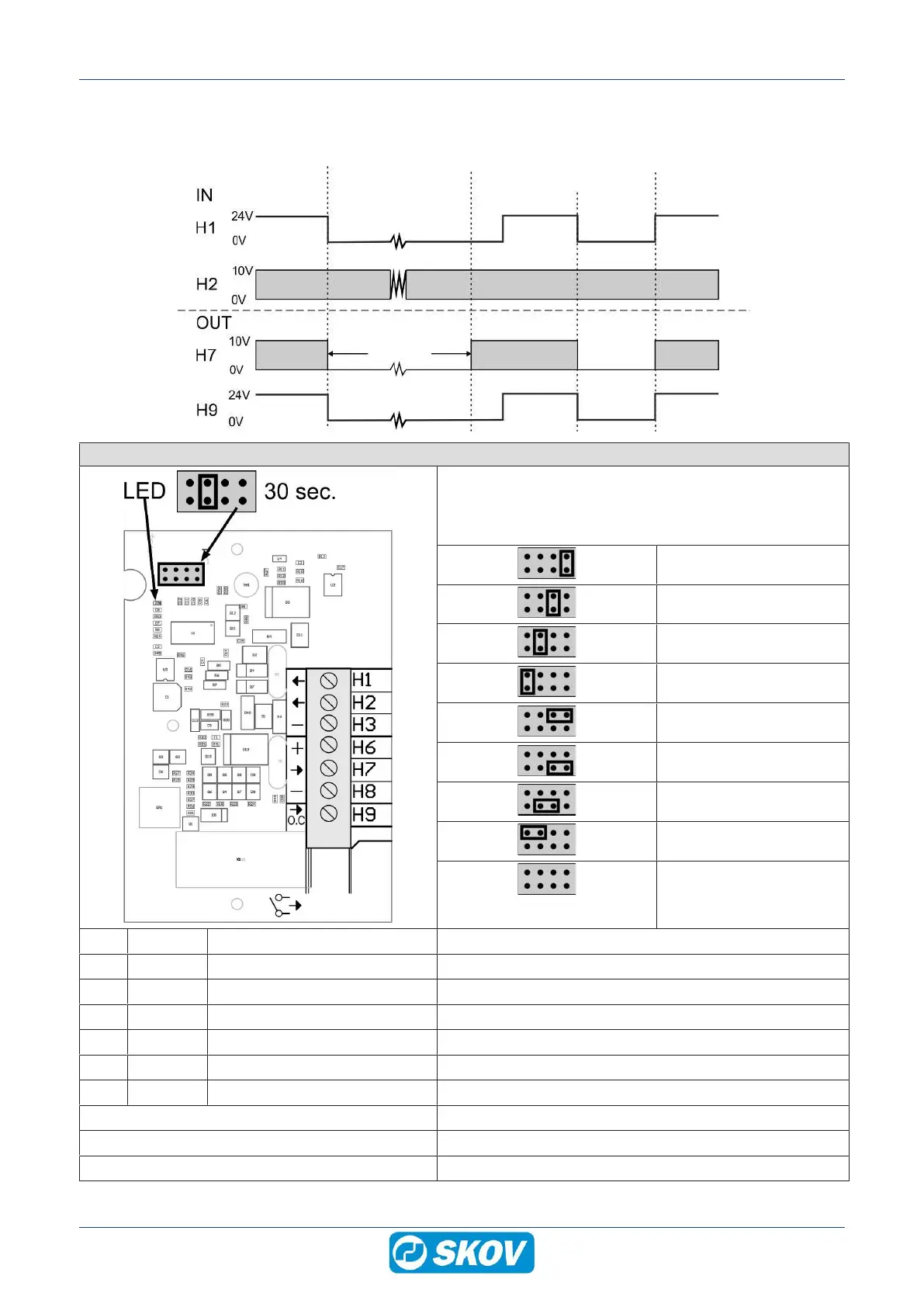

4.5 Connection to Kick ON timer
4.5.1 IN/OUT timing
LED indication
OK = slow flashing (1 time/second)
Kick ON timer active = constant light
Error = fast flashing (10 times/second)
20 sec.
25 sec.
30 sec.
35 sec.
40 sec.
45 sec.
50 sec.
60 sec.
No timer function
OUT = IN
H1 D IN Fan ON/OFF 0V = ON / 24V = OFF
H2 A IN Fan speed 0V = max. RPM / 8V = min. RPM
H3 GND Ground
H6 24 V Supply 24V+/- 20% 30mA
H7 A OUT LPC motor controller speed Max. 3 LPC motor controllers on 1 Kick ON timer
H3 GND Ground
H9 D OUT LPC motor controller ON/OFF Max. 3 LPC motor controllers on 1 Kick ON timer
Operating temperature [°C] - 40 to +50
Storage temperature [°C] - 40 to +70
Ambient humidity, operation [%] RH 10 to 95
