Qualified personnel in accordance with the applicable national and international standard EN
60204-1 and any other EU standards that are applicable in Europe must perform installation,
service and fault finding of al electrical equipment.
The installation of a supply isolator is required for each motor and power supply, so maintenance
of electrical equipment can be carried out in a dead environment. Supply isolator is not supplied
by SKOV A/S.
1) Disconnect power to the controller.

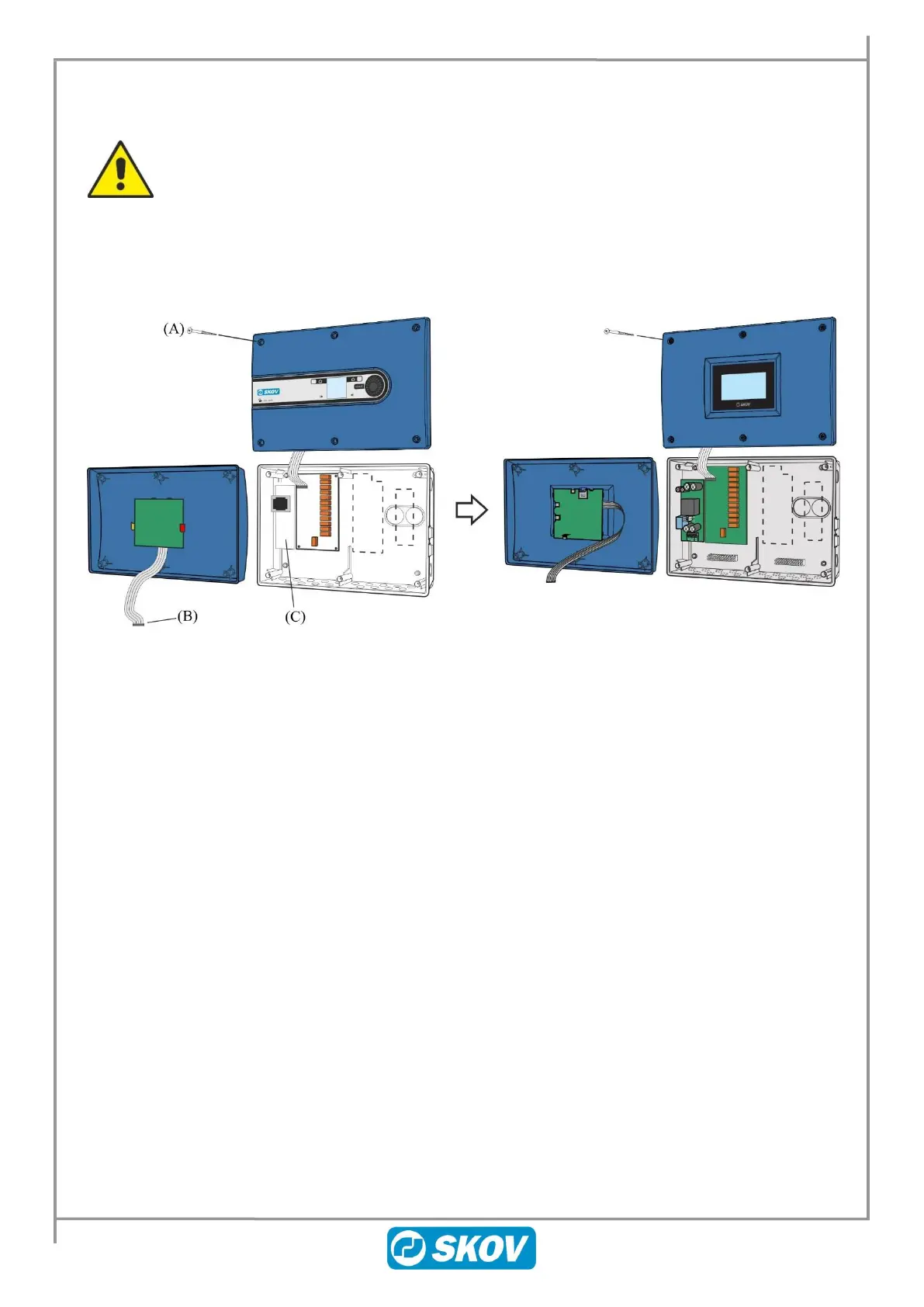

2) Remove the screws (A) and loosen the panel with CPU module.
3) Remove the flat cable (B).
4) Mark wires for the power supply (C) and remove them.
5) Remove the connector for the power supply (C)
6) Remove screws for the power supply (C) and remove them.
7) Mount the new power supply with four screws and connect the connector.
8) Connect the flat cable from the CPU module (B).
9) Load system software, see Technical User Guide, Loading System Software.
10) Mount the screws (A).
If no changes are made to the settings/installation, the jumpers on the main modules should not be moved. If
changes are made, the installation must be made as shown in the menu Show installation.
2.4 Make Setup and Connection of DOL 53X / DOL 63X
1) Switch the power to the controller on.
2) Make the setup of DOL 53X / DOL 63X in accordance with the noted settings from DOL 234F.
