HOIST OPERATIONS
Compact 1000, 1250, 1500
ELECTRIC SINGLE VOLTAGE, DUAL VOLTAGE & AIR HOISTS WITH SKY LOCK TYPE III
NOTICE – Select proper source voltage (208V/220V) to match hoist voltage BEFORE connecting power.
Directional Switch/Lever – This activates and operates the hoist. Select UP direction to move unit upward.
Select DOWN direction to move unit downward. Release the switch to cut power to motor and set primary brake.
Emergency Stop Switch – Push to stop power to hoist and set primary brake. Turn clockwise to reset.
Controlled Descent Lever – Do not use for normal lowering operations. For non-powered descent, the Controlled
Descent Lever manually releases and re-engages primary hoist brake. Disconnect power at power connection
before using the Controlled Descent Lever.

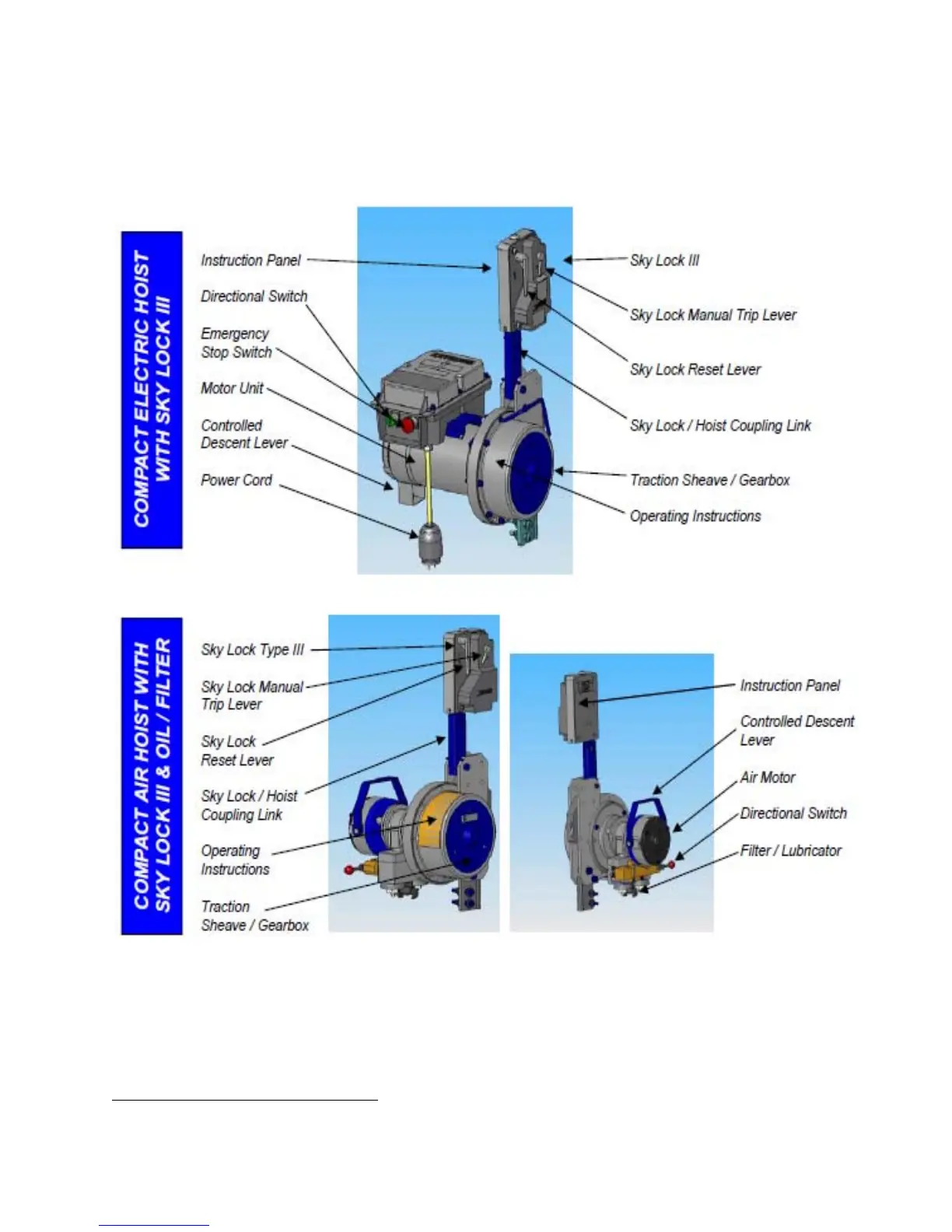

*Dual voltage not pictured.
