SKY-WATCHER Refractor AZ2 User Manual

6
AZ1 (reector)
AZ2 (refractor)
AZ1 (reector)
AZ2 (refractor)
INSERTING EYEPIECE
(Fig. 9)
1) Unscrew the thumbscrews
on the end of the focus
tube to remove the black
plastic end-cap.
2) Insert the desired eyepiece
and re-tighten thumb
screws to hold eyepieces
in place.
INSERTING EYEPIECE (Fig. 9)
1) Unscrew the thumbscrews on the end of the focus
tube to remove the plastic endcap.
2) Insert diagonal and re-tighten thumbscrews
to hold diagonal in place.
3) Loosen the thumbscrews on the diagonal.
4) Insert the desired eyepiece into diagonal
and secure by re-tightening
thumbscrews.

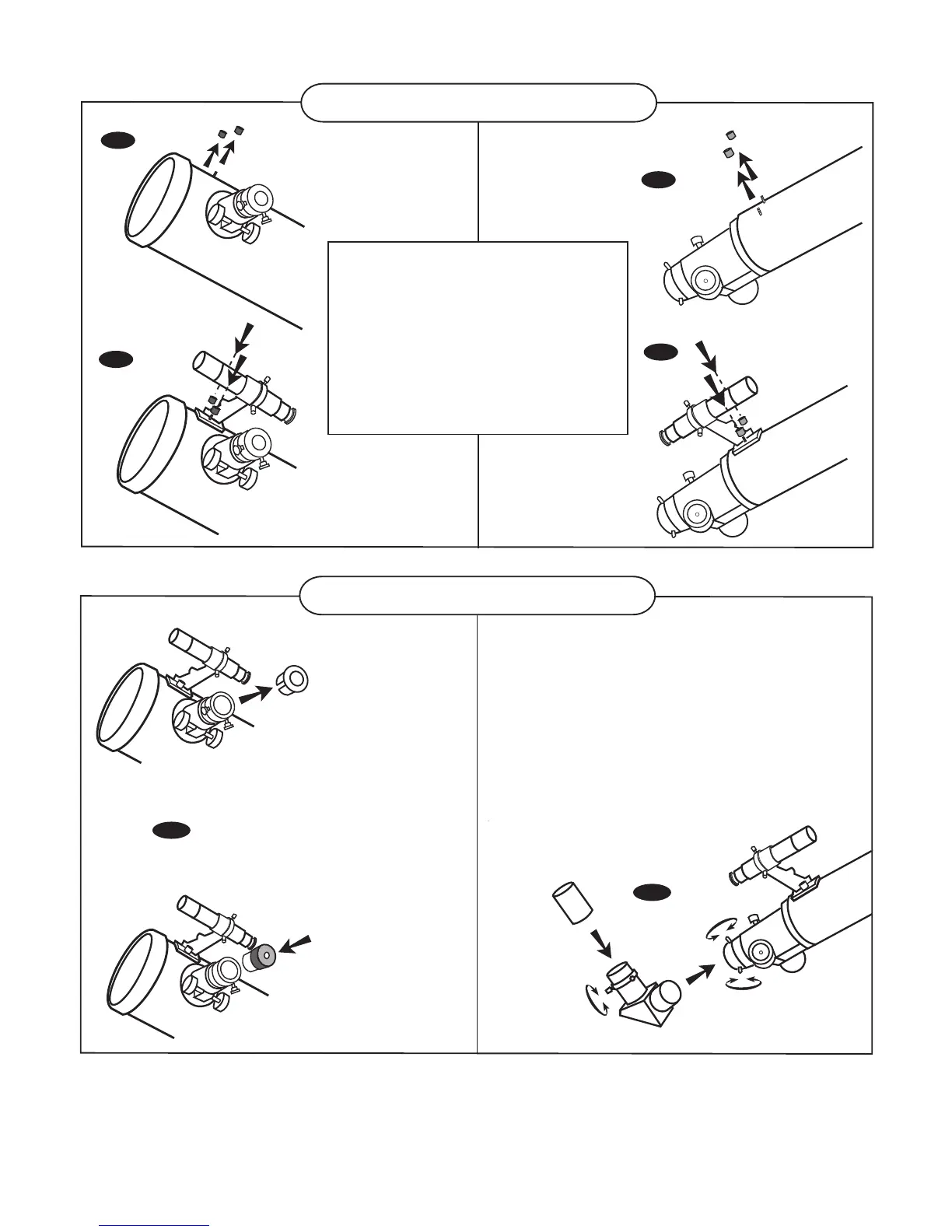

ATTACHING THE FINDERSCOPE
(Fig. 7, 8)
1) Locate nderscope optical assembly.
2) Remove the two knurled thumbscrews
near the end of the telescope main tube.
3) Position the nderscope bracket over
the screws in the telescope main body.
4) Secure the nderscope bracket with the
two knurled thumbscrews.
FINDERSCOPE ASSEMBLY
EYEPIECE ASSEMBLY
Fig.7
Fig.8
Fig.7
Fig.8
Fig.9
Fig.9
