Skydrop Halo Sprinkler Controller User Manual

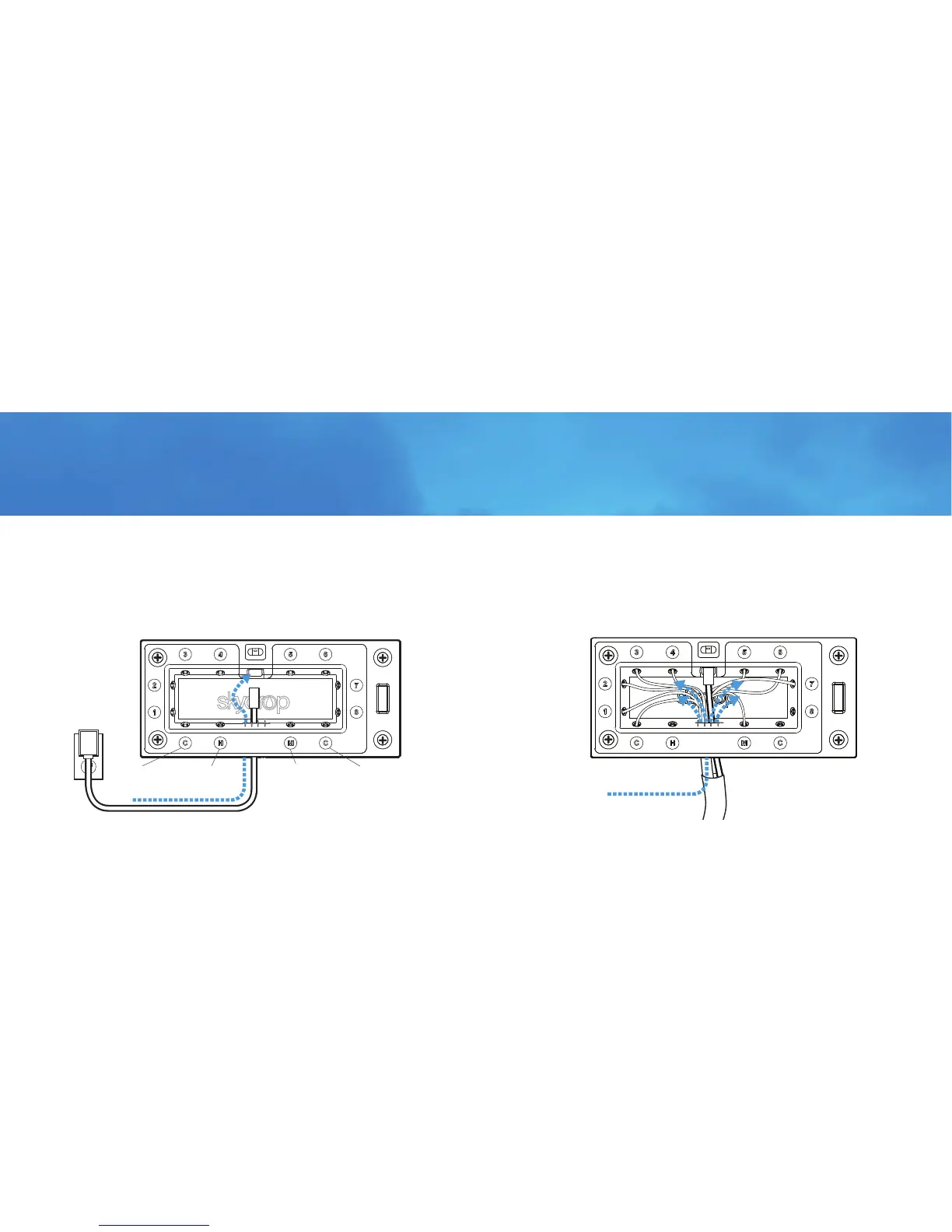

Step 3: Install power and wiring
Insert the power cable through bottom wiring
slot (or through the breakaway tab on the rear of
the wall plate) and secure into the top, center plug.
Push each valve wire rmly into a zone (1-8) and
pull back slightly to verify it is secure. The “C”
positions are for common wire(s). To remove a
wire, press its corresponding button and pull out.
Common
Master Valve
(optional)
Common
Hot Position
(for testing)
