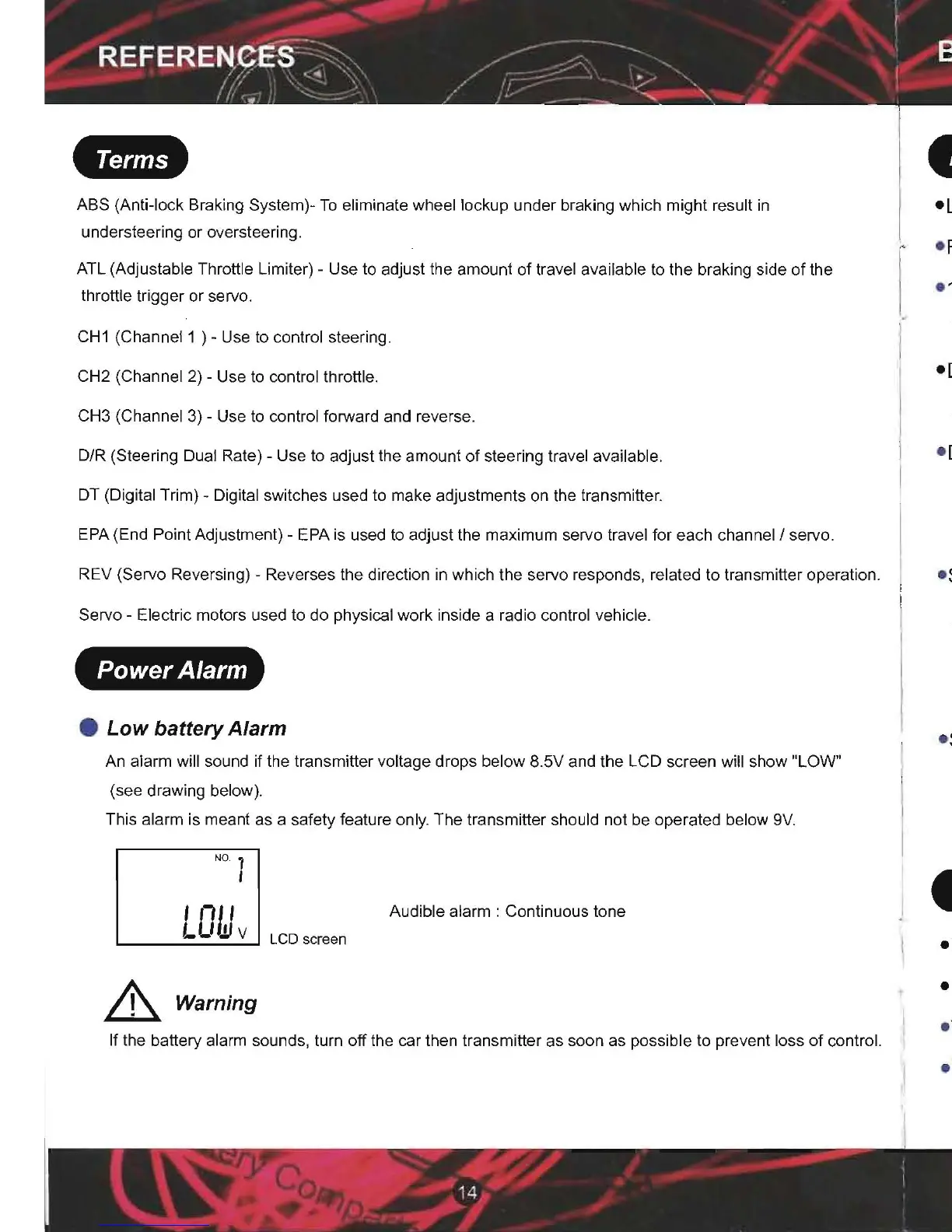

Skyion DSX - References; Power Alarm and Connections

..
ABS (Anti-lock Braking System)- To eliminate wheel lockup under braking which might result in
understeering or oversteering.
ATL (Adjustable Throttle Limiter) - Use to adjust the amount of travel available to the braking side of the
throttle trigger or servo.
CH1 (Channel 1 ) - Use to control steering.
CH2 (Channel 2) - Use to control throttle.
CH3 (Channel 3) - Use to control forward and reverse.
D/R (Steering Dual Rate) - Use to adjust the amount of steering travel available.
DT (Digital Trim) - Digital switches used to make adjustments on the transmitter.
EPA (End Point Adjustment) - EPA is used to adjust the maximum servo travel for each
channel/servo.
REV (Servo Reversing) - Reverses the direction in which the servo responds, related to transmitter operation.
Servo - Electric motors used to do physical work inside a radio control vehicle.
Power Alarm
• Low battery Alarm
An alarm will sound if the transmitter voltage drops below 8.5V and the LCD screen will show "LOW"
(see drawing below).
This alarm is meant as a safety feature only. The transmitter should not be operated below 9V.
NO 1
,
Audible alarm: Continuous tone
LOMv
A Warning
If the battery alarm sounds, turn off the car then transmitter as soon as possible to prevent loss of control.
Features
-LCD screen displays digital adjustments and settings
- Four edit keys for setup
- 10 model memory (#0-9)
Use up to three letters, numbers, or symbols to easily identify models.
-Dual Rate Steering (D/R Steering)
Steering angle can be changed using digital trim.
- Digital Trim
Steering Trim, Throttle Trim, Adjustable Throttle
ATl, and D/R steering can all be
adjusted using digital trim switches.
- Switch function reassignment (DT1, DT2, DT3, DT4)
Allows for assignment of a function to any digital trim switches (digital trim switches
, rocker switches). All switches are digital so there is no need to readjust trim
position for different models after initial setup.
- Steering wheel tension adjustment
Steering wheel tension can be adjusted externally, with no need to disassemble the
controller
Tx Specifications
-Model : G82002 , 2CH / G82003, 3CH
-Input Voltage : 12V DC
- Working Current : 160 mA
- Modulation Formate : AM , 27MHz
