SECTION 6, Page 24 SJIII Series - The Conventionals 129919
A 115592 - CONTROL BOX ASSEMBLY, Powered ext. platform
1 115539 1 • BOX, Control
2 103041 1 • STRAIN RELIEF, Straight 1/2"
3 106401 1 • CORD, Coiled 18/3
4 107712 1 • CONNECTOR ASSEMBLY, 5 pole male
103567 1 • • HOUSING, Male with Strain relief connector
132790 1 • • • HOUSING, Male
132110 1 • • • CONNECTOR, Strain relief
103569 1 • • INSERT, Male
5 114377 1 • PLUG, Plastic 1/2”
6 102853 2 • SWITCH, Toggle
7 111181 2 • GUARD, Toggle switch
8 129837 1 PLATE, Control box mounting (Machines with Hinged Railings)
112467 1 • PLUNGER, Stubby pull-ring
117188 1 PLATE, Control box mounting (Machines with Rigid Railings)
L (Ref.) - LABELS
(Refer to Figure 6.8-3)
Index
No.
Skyjack
Part No.
DescriptionQty.
10198AA

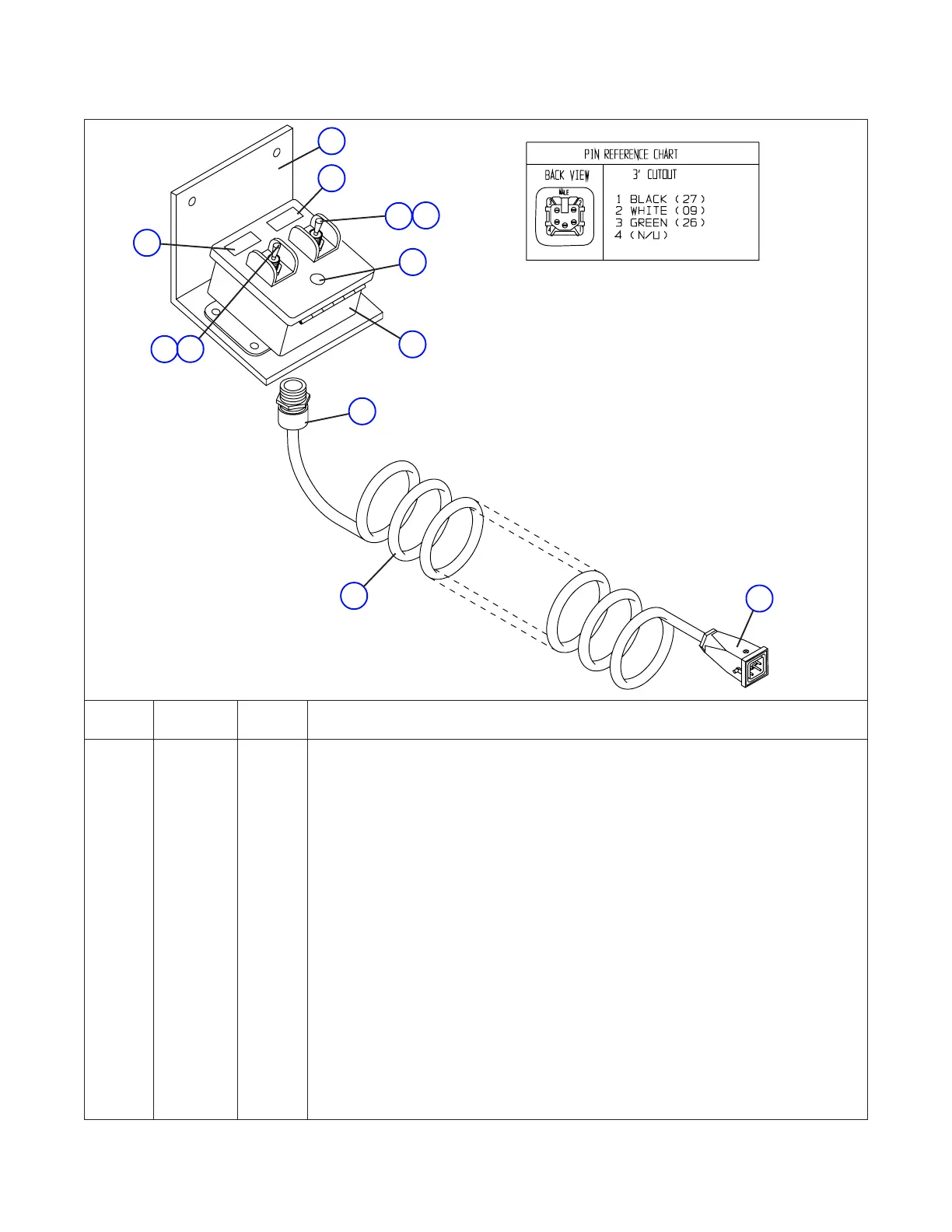

Figure 6.1-13. Powered Extension Control Box Assembly
L
7
6
L
7
6
5
4
3
2
1
8
