Skyjack 6832RT - Figure 6.1-7. Air Hose to Platform Assembly

SKYJACK, Page 132
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description

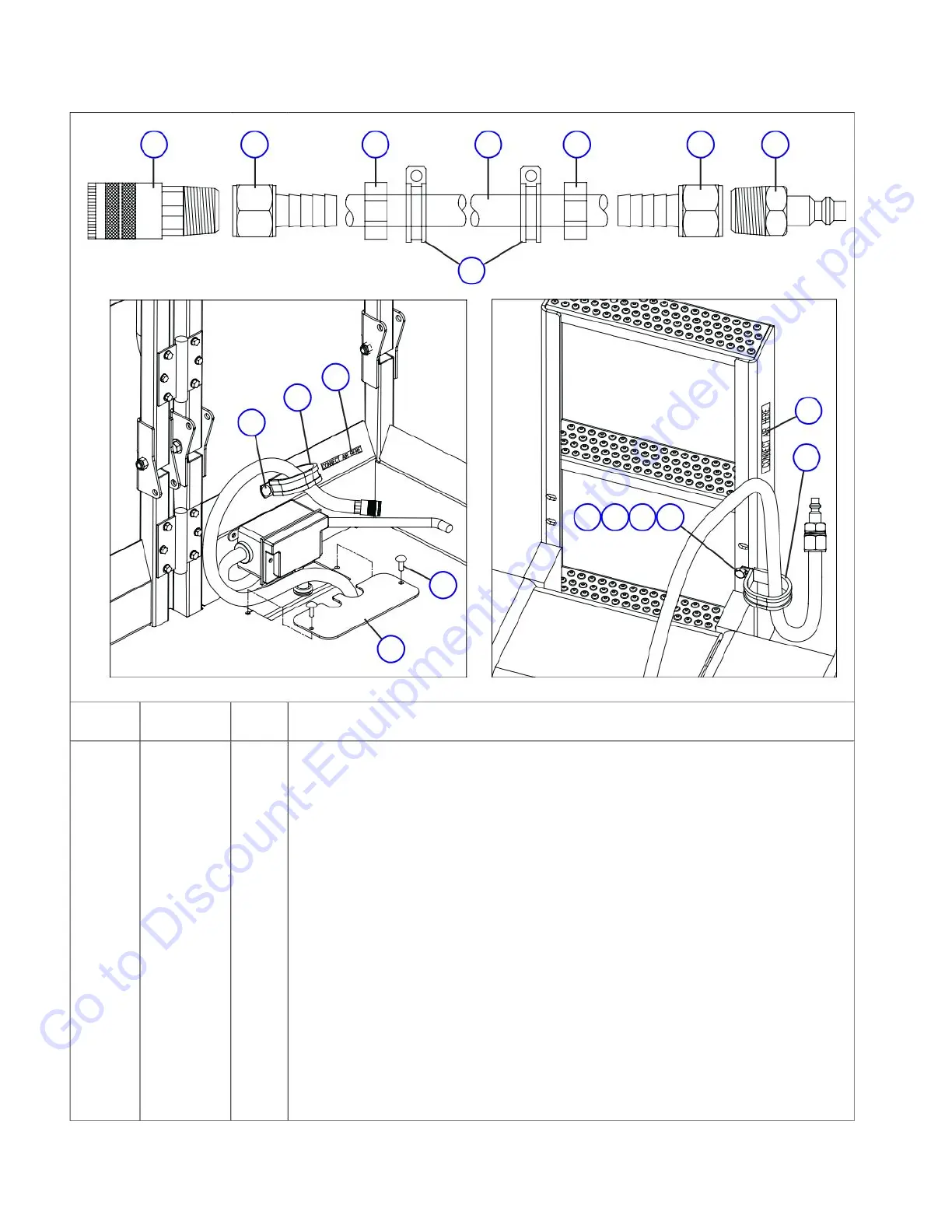

Figure 6.1-7. Air Hose to Platform Assembly
M135913AA
1 107882 1 FITTING, Female disconnect
2 109050 2 FITTING, Hose barb
3 107886 2 CLAMP, Hose
4 107884 37’ HOSE, Air (Models 6826)
107884 45’ HOSE, Air (Models 6832)
5 107883 1 FITTING, Male disconnect
6 134140 3 RIVET, Open end dome (1/4” DIA)
7 103078 2 CLAMP, Double G10
8 137567 1 PLATE, Air control/110 cover
9 103978 1 NUT, Hex head (3/8”-16 Grade 5)
10 103999 1 WASHER, Lock (3/8”)
11 103472 1 WASHER, Flat (3/8”)
12 101632 1 BOLT, Hex head (3/8”-16 x 3/4” Grade 5)
L (Ref.) - LABEL, Connect Air Here
(For components, refer to Figure 6.6-2)
1 2
1211109
8
7
6
54 3
L
L
7
6
23
7
