Skyjack 6832RT - Figure 6.3-11. Oil Tank Assembly

SKYJACK, Page 178
SJRT Compact Series
Engine Powered
Index
No.
Skyjack
Part No.
Qty. Description
- 136273 1 TANK ASSEMBLY, Oil
1 136259 1 • TANK, Oil
2 117701 1 • FITTING, Magnetic drain plug
3 103236 1 • GAUGE, Oil level/temp
4 124311 2 • • INSERT, Threaded
5 132128 1 • SCREEN
6 136369 1 • CAP, Filler non-vented assembly
7 139468 1 • FITTING, Tee hydraulic
8 137540 1 • VENT, Breather
9 103962 AR • BOLT, Machine head (#10-32 x 1/2”)
10 136262 1 • LID, Oil tank

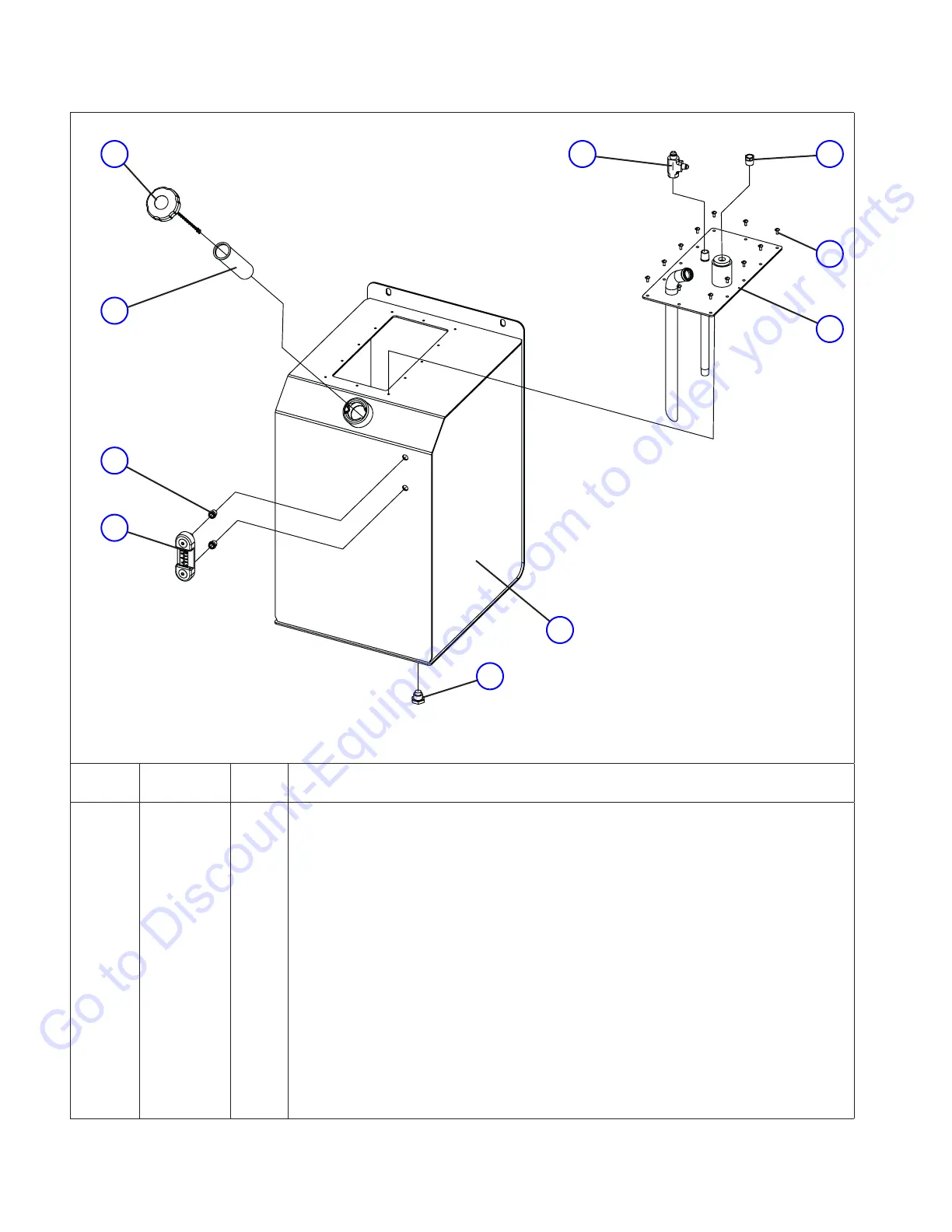

Figure 6.3-11. Oil Tank Assembly
M136273AE
1
2
10
9
876
5
4
3
