Page 24 Mid Size & Full Size RTs
Engine Powered
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-11 Base
• Base Weldment
- Ensure there are no visible cracks in
welds or structure and there are no signs
of deformation.
• Wheel/Tire Assembly
The aerial platform is equipped with foam-
filled tires. Tire and/or wheel failure could
result in an aerial platform tipover. Component
damage may also result if problems are not
discovered and repaired in a timely fashion.
- Check all tire treads and sidewalls for cuts,
cracks, punctures and unusual wear.
- Check each wheel for damage and cracked
welds.
- Check each lug nut for proper torque to
ensure none are loose.
Refer to Table 4.6 for wheel/tire specifications.
• Drive Axle
- Ensure drive axle is properly secured,
there are no loose or missing parts, all
fittings and hoses are properly tightened
and there is no evidence of hydraulic
leakage.
• Steer Cylinder Assembly
- Ensure steer cylinder assembly is properly
secured, there are no loose or missing
parts, all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
• Tie Rod
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
Wheel/Tire
Assembly
Steer Cylinder
Assembly
Tie Rod

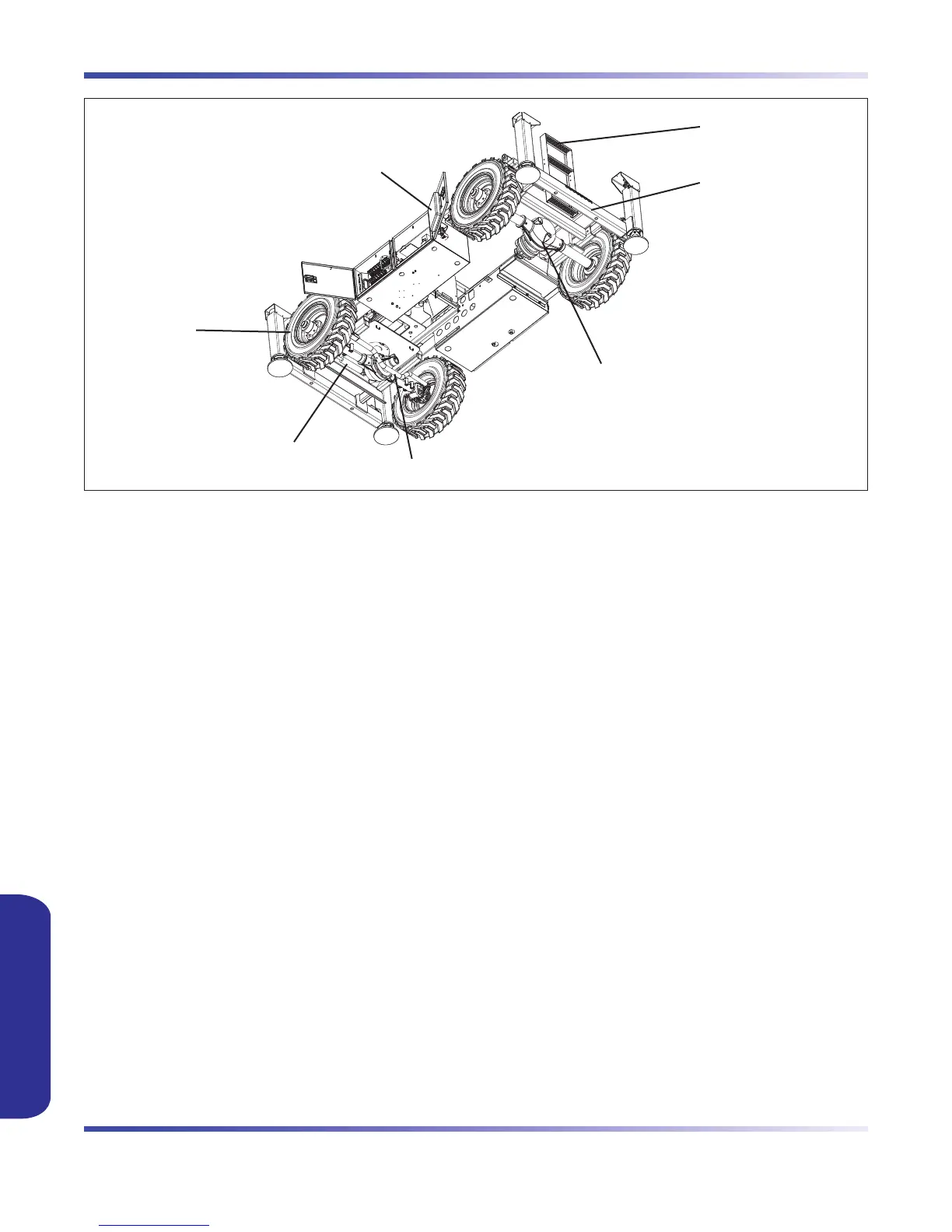

Typical Model 71xx shown - Bottom View
Base
Weldment
Manual Storage
Box
Ladder
Drive Axle
