Mid Size & Full Size RTs
Engine Powered
Page 45
Section 3 - Operation Component Identification (Special Options)
3.6-3 1500W AC Inverter (If Equipped)
The inverter is located on the base of the aerial platform.
It has the following controls:
2
1
3

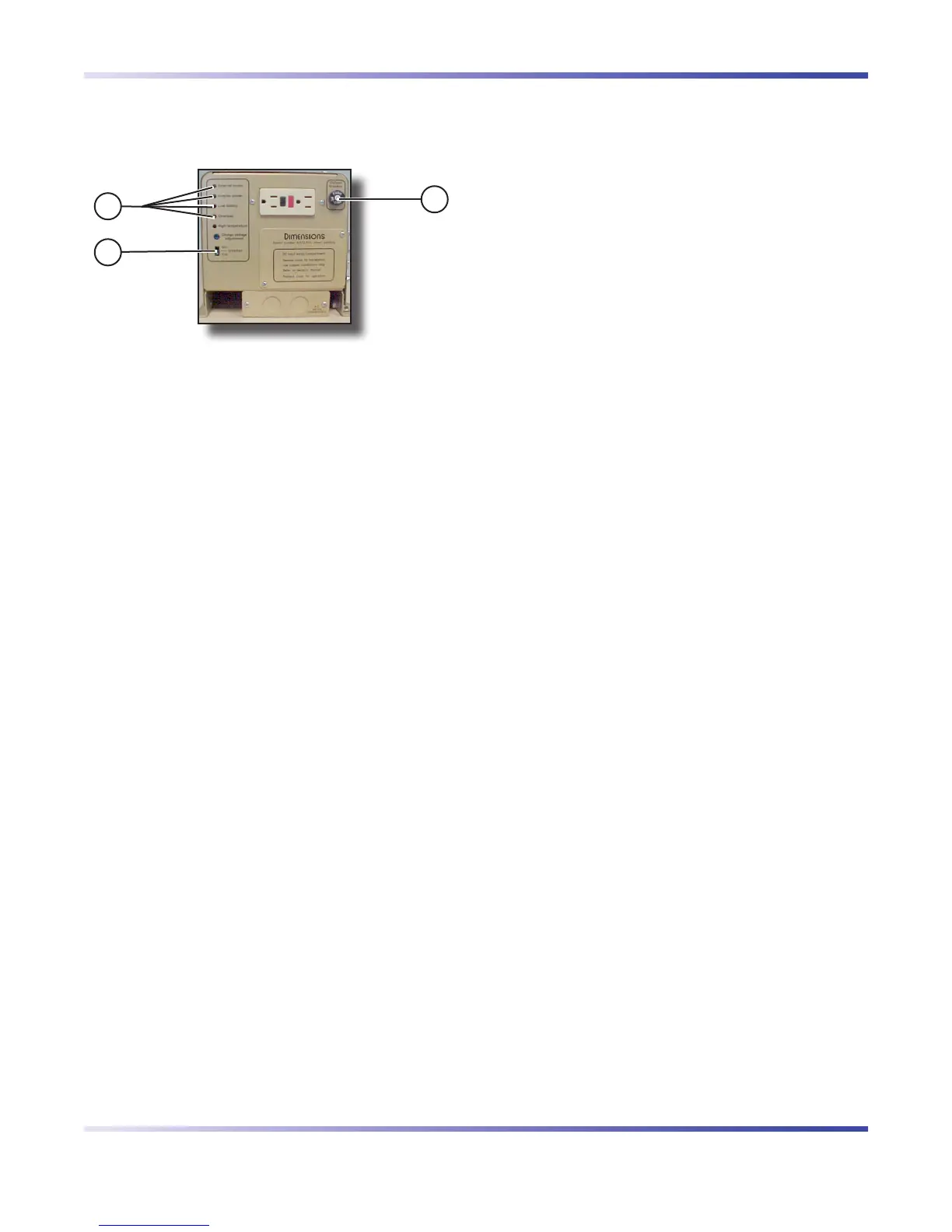

Figure 3-7. 1500W AC Inverter
NOTE
The inverter operation is automatic. These
controls do not need to be manipulated for
normal operation.
1. On/Off Switch - This diagnostic slide switch
activates or terminates inverter operation. It should
remain in the on position.
2. Status LEDs - These LEDs indicate the operating
or fault status of the inverter.
3. 15 Amp Circuit Breaker - In the event of a power
overload or circuit grounding, the circuit breaker
pops out. Press the breaker back in to reset.
