Section 3 – Familiarization Control functions
3.3-2 Base control console

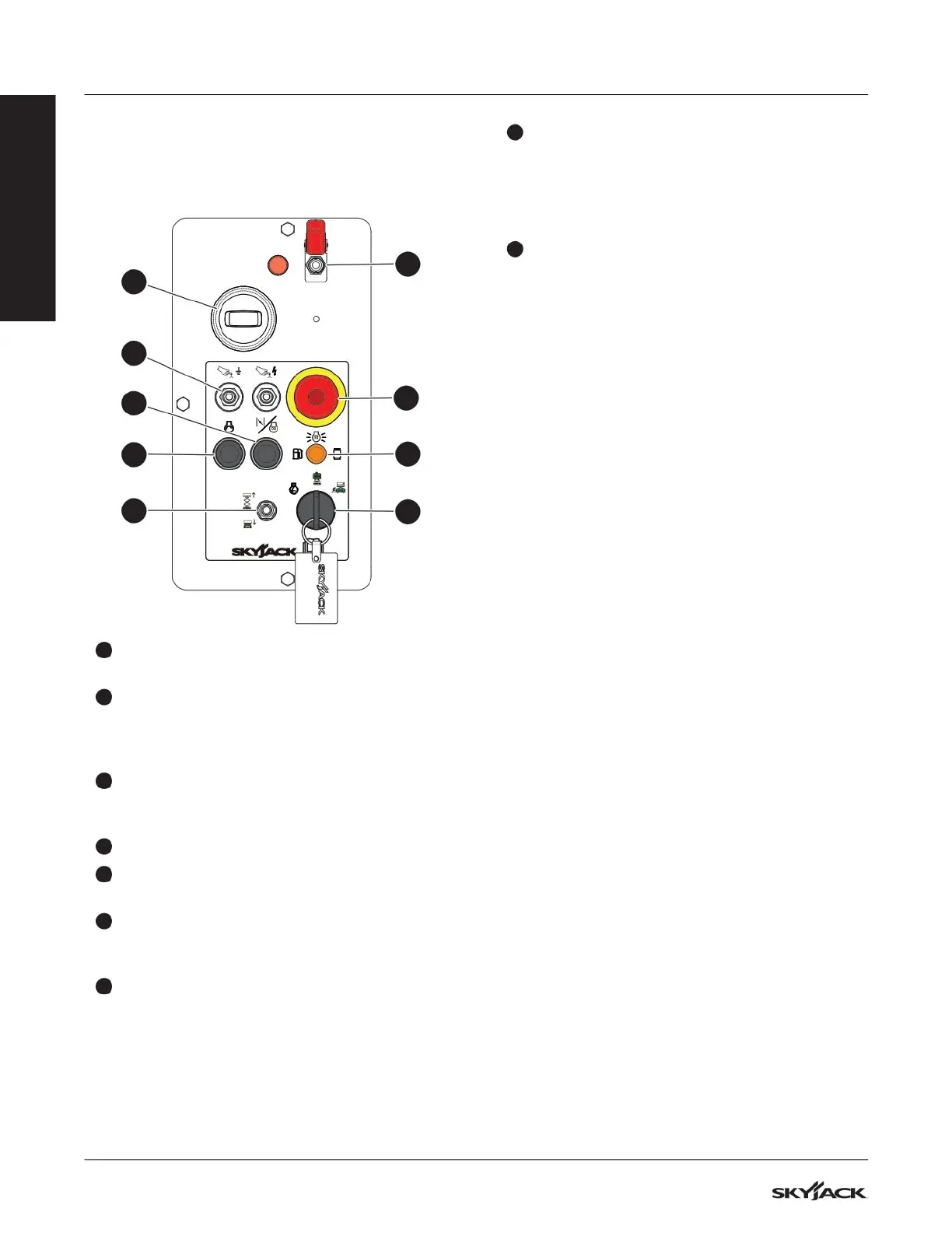

Refer to section 3.1 for the location of the base control
console.
8
7
6
9
5
4
3
2
1
1
Hour meter: This gauge records the total
operation time of the engine.
2
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker in to reset
the power.
3
Choke/glow plug: Push and hold this button to
help start a cold dual-fuel (choke) or diesel (glow
plug) engine.
4
Engine start: This push-button starts the engine.
5
Lower/off/raise: This switch controls the function
to lower or raise the platform.
6
Emergency-stop: This button disconnects power
to the control circuit. Pull to connect the power
again.
7
Fuel selector (dual fuel): Use this switch to
select liquid propane gas (LPG) or gasoline as
the fuel type.
Glow plug indicator (diesel): This light comes
on when the glow plug switch is held. It stays on
until the glow plug heating cycle is complete.
8
Idle/platform/base key: With this three-way
switch, you can:
▪
Turn the engine to Idle mode.
▪
Energize the base controls.
▪
Energize the platform controls.
9
Positive air shutoff (optional equipment): This
switch stops the air supply to the engine. This
is useful if the engine does not immediately stop
when the power is off.
