SJ6826 RT, SJ6832 RT
221587ABA

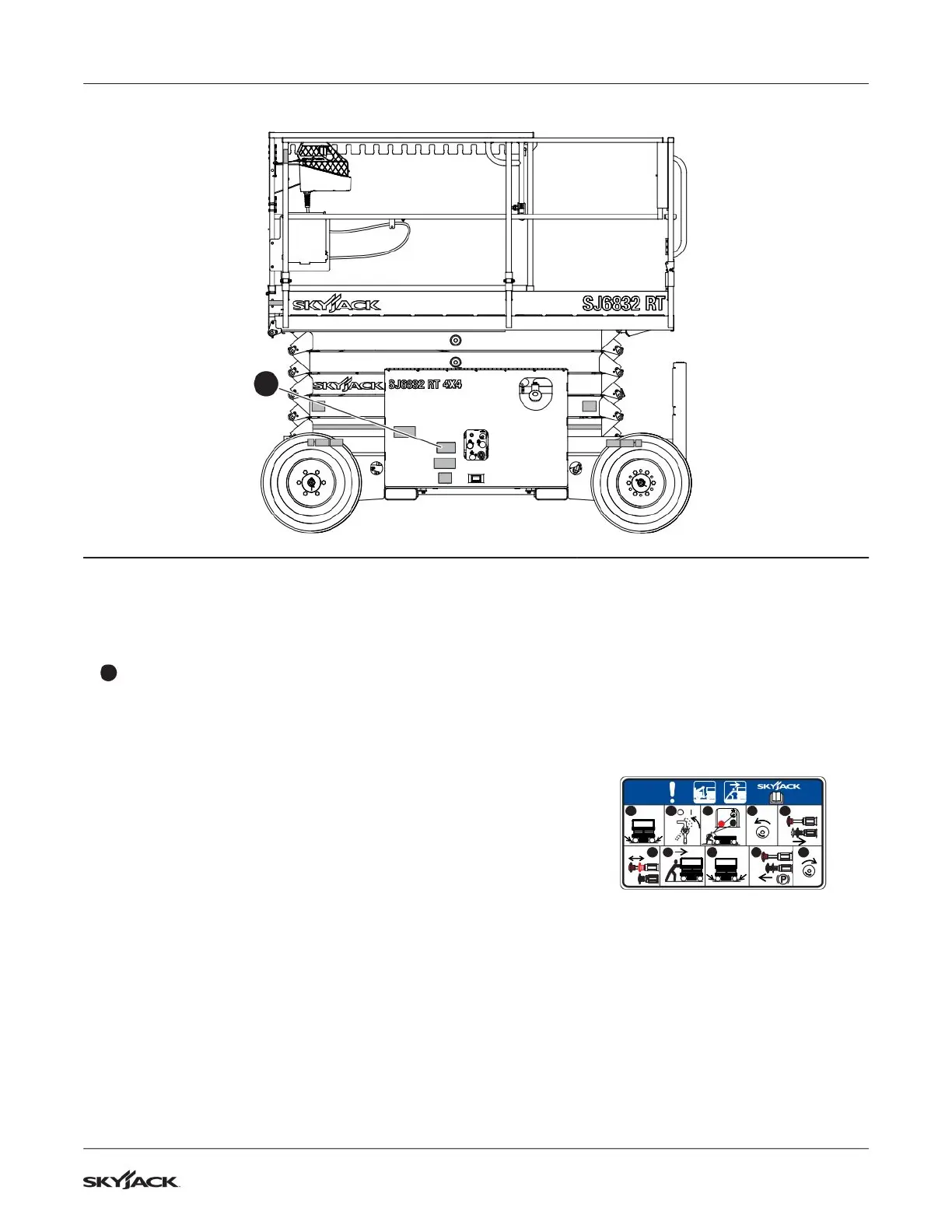

Left side Section 8 – Labels
Description Label Pictorial
7
Winch and tow procedure
Refer to the operation manual.
1. Use wheel chocks or blocks at the front of the wheels and
behind them to prevent MEWP movement.
2. Turn the main power disconnect switch to the off position.
3. Find the drive manifold at the rear side of the base.
4. Push the plunger of the brake auto-reset valve.
5. Continuously push and release the knob of the hand pump
until the pressure gauge (optional) shows 21 bar (300
psi). Do not go higher than 24 bar (350 psi). The brake is
released.
6. Push, winch, or tow the MEWP to the necessary location.
7. Use wheel chocks or blocks at the front of the wheels and
behind them to prevent MEWP movement.
8. Pull out the plunger of the brake auto-reset valve to re-
engage the brakes.
10-30
1
6
2 4
8 9
3
10
7
TM
5
Left side (continued)
6
7
To Next Page
