Rough Terrain Scissors
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-8 Engine Compartment
WARNING
Beware of hot engine components.
1. Pull on the two latches to pull out engine
compartment.
• Engine Control Console
- Ensure muffler and exhaust system are
properly secured, with no evidence of
damage.
• Radiator
- Ensure radiator is secure.
- Ensure there are no loose or missing
parts and there is no visible damage.
- Check coolant level and add as
needed.
• Muffler and Exhaust
- Ensure muffler and exhaust system are
properly secured, with no evidence of
damage.
• Engine Tray
- Ensure there are no loose or missing
parts and no visible damage to the engine
tray. Ensure that both tray-securing bolts
are in place.
Radiator
Muffler and Exhaust
Engine
Battery
Engine Air Filter
Hydraulic Pump
Engine Tray
Engine Control
Console

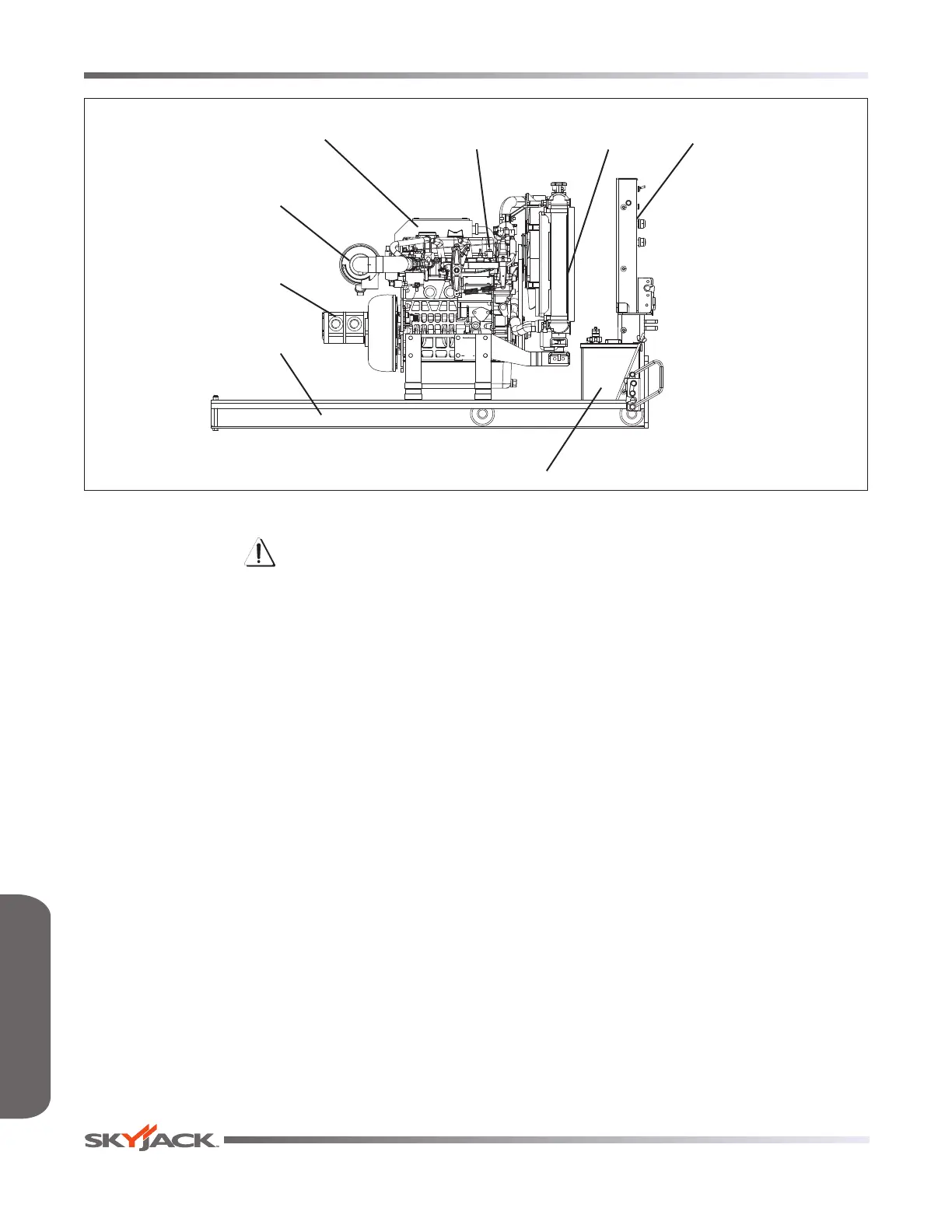

Typical Model 71xx shown
