Skyjack SJ7135 RT - Test Lower;Neutral;Raise Switch; Test Base Lift Enable

Rough Terrain Scissors
December 2007 Page 33
Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.4-2 Base Control Console
1. On engine control console, select
“
” start position to start the engine.
• Test Emergency Stop
1. Push in “ ” emergency stop button.
Result: Engine should shut down and
aerial platform functions should not
operate.
2. Pull out “ ” emergency stop button and
restart engine.
• Test Base Lift Enable
1. On base control console, select and hold
lower/neutral/raise switch “
” to raise
position without selecting “ ”
enable switch.
Result: Platform should not rise.
• Test Lower/Neutral/Raise Switch
1. On base control console, select and
hold “
” enable switch and
“ ” raise the platform with lower/neutral/
raise switch.
Result: Platform should rise.
2. Select and hold “ ” enable
switch and fully “ ” lower the platform
with lower/neutral/raise switch.
Result: Platform should fully lower.

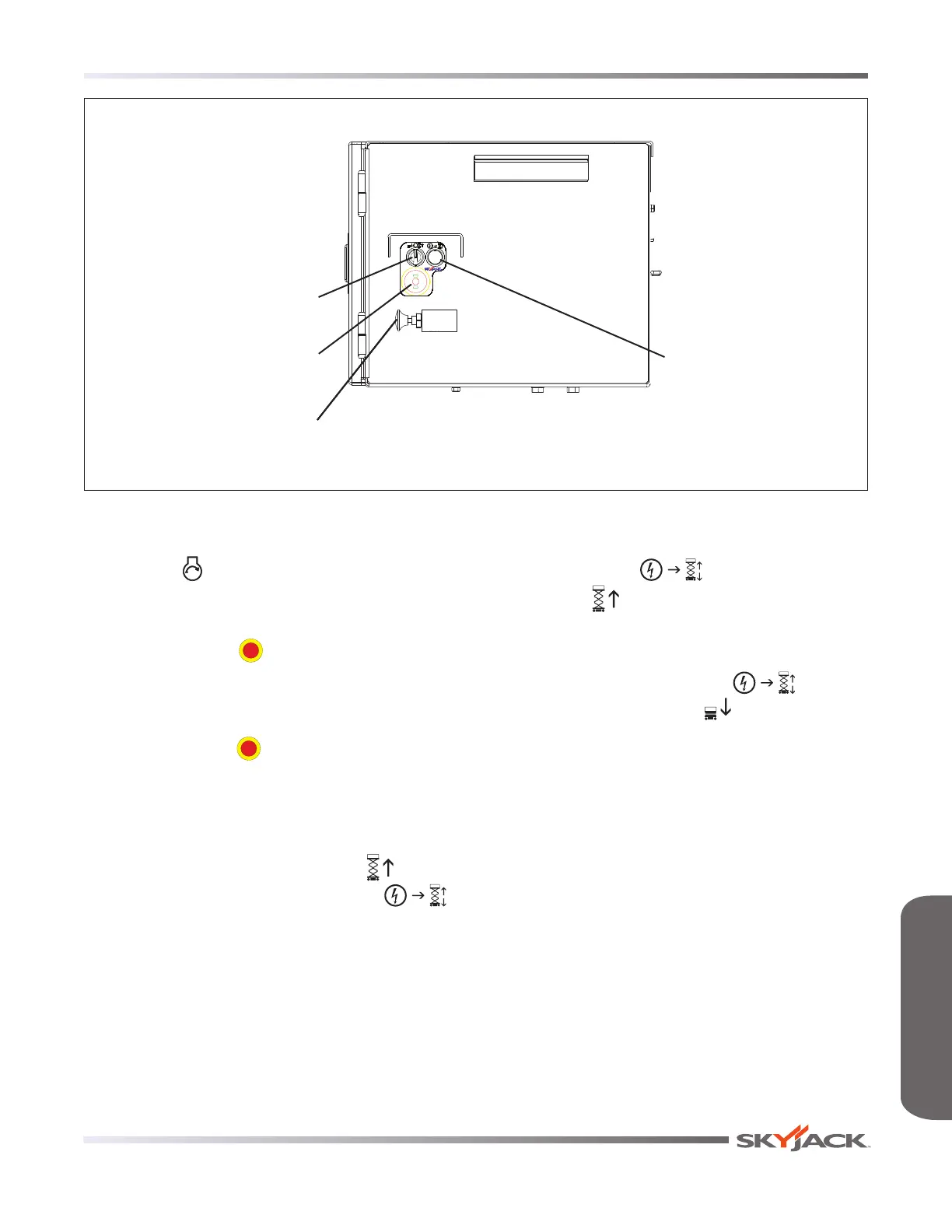

Base Control Console
Emergency Lowering
Valve
Platform Lower/Neutral/
Raise Switch
Enable Switch
Base Control Console
Emergency Stop
Button
FAMILIARIZATIONFAMILIARIZATION
