FAMILIARIZATION
• Test Differential Lock Switch
WARNING
Before engaging differential lock, ensure
drive/steer controller is in neutral position.
1. On platform control console, push
d i f f e r e n t ia l l o ck s w i t c h f o rw a r d
“ ” to the locked position and then
release.
Result: Differential light should turn on.
Differential lock should be engaged.
2. Pull differential lock switch backward
“ ” to the unlocked position and then
release.
Result: Differential light should turn off.
Differential lock will disengage when drive
torque is released. Refer to Section 3 for
operation.

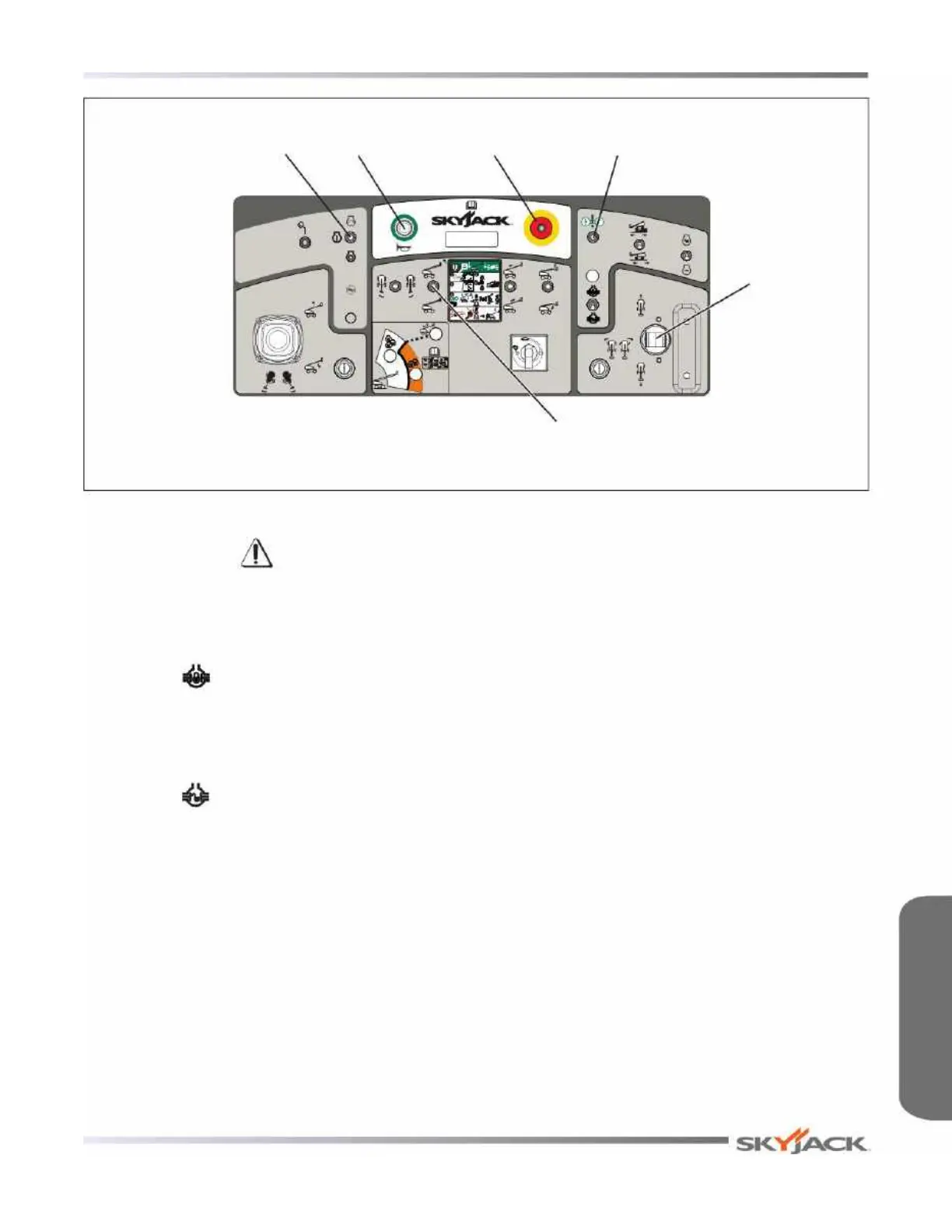

Horn
Emergency Power
Switch
Emergency Stop
Engine Start/On/
Off Switch
Platform Leveling
Override Switch
Drive/Steer
Controller
Section 2 - Familiarization Function Tests
