Section 3 - Operation Component Identification (Special Options)
1. Sensor Bar - This bar is located in front of the
platform control console. When pressure is
applied to the sensor bar, it interrupts/halts all
functions.
2. Reset Button - This button is located on the top
left corner of the platform control console. It lights
up when pressure is applied to the sensor bar for
more than 1 second. When depressed, it shuts off
the audible/visual alarm.
3. Audible/Visual Alarm - This alarm is located on
the underside of the platform control console. It
activates when pressure is applied to the sensor
bar.
SGE Operation
1. When pressure is applied to the sensor bar for
less than 1 second, the audible/visual alarm will
activate while the bar is being pressed, interrupting
all functions. The audible/visual alarm will turn off
after the sensor bar is released, and functions
will resume.
2. When pressure is applied to the sensor bar for
more than 1 second, the audible/visual alarm
will activate and the engine will shut off, halting
all functions. The reset button will illuminate.
Emergency power functions remain active.
3. After removing pressure from the bar, press the
reset button to shut off the audible/visual alarm
and resume all functions.
3.5-5 Glazier Tray (If Equipped)
The tray is installed on the front side of the platform.
3
1
2

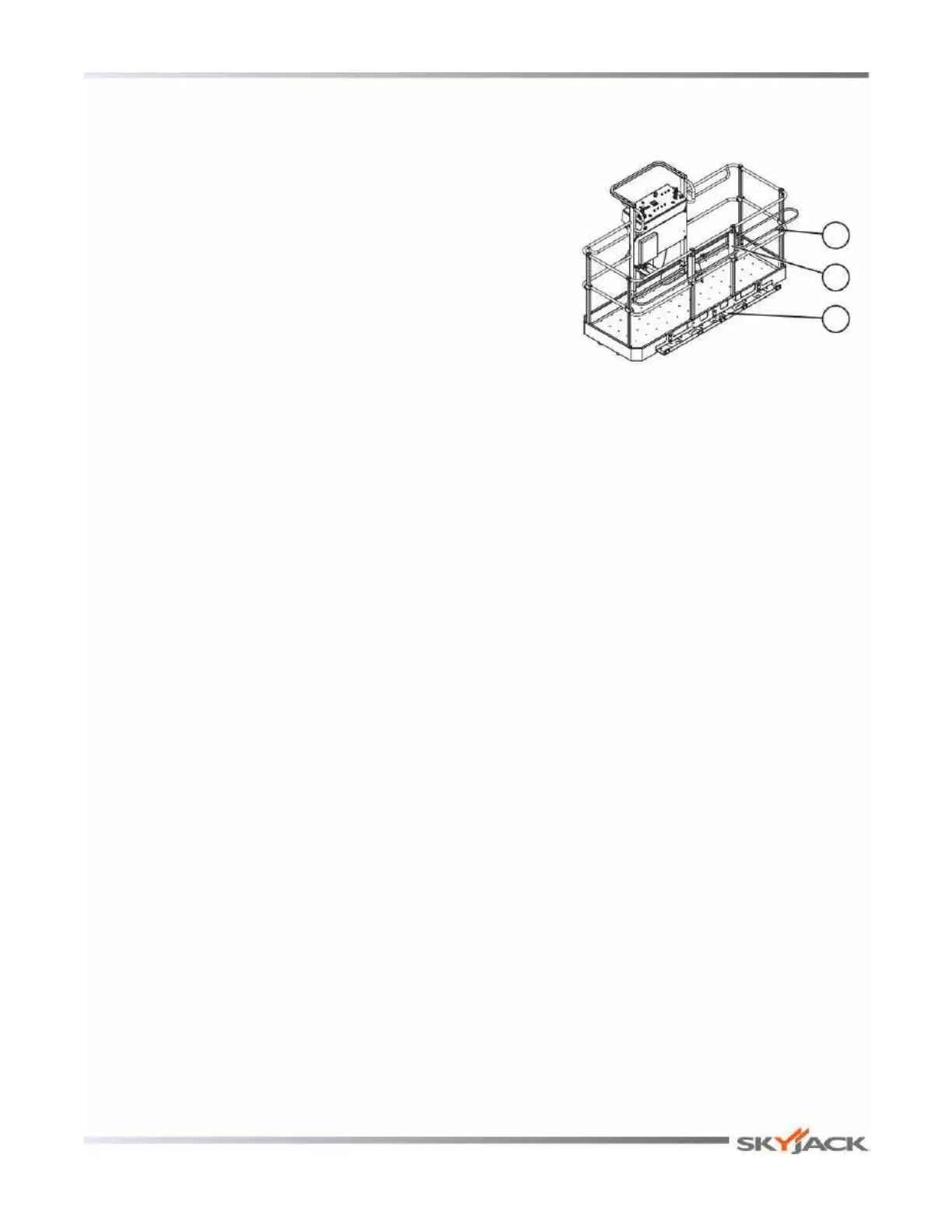

Figure 3-4. Glazier Tray
1. Strap - This strap is used to secure panel in place.
2. Foam Support - This foam support with cover
bumper is used as a cushion to protect the panel.
3. Glazier Tray - This tray is used to carry the panel.
NOTE
The combined weight of attachment,
panels, occupants and tools should not
exceed platform rated capacity.
