Skyjack SJ86T User Manual

Page 62 December 2007
SJ 86T
Loading/Unloading Section 3 - Operation
3.9-2 Locking the Turret
1. Ensure that turret is positioned so that turret
transportation lock tube (item 2 – Figure 3-7) is
aligned into one of two turret locking points on
the chassis.
2. Lift turret lock retaining pin (item 1 – Figure 3-7)
and rotate 90 degrees. Lower turret lock retaining
pin into locked position.
3.9-3 Lifting
IMPORTANT
Optional lifting points are required.
1. Place boom in stowed position, centered between
drive wheels. Lock turret using turret transportation
locking pin (refer to Section 3.9-2).
2. Turn main power disconnect switch to “ ” off
position.
3. Clear platform of all personnel, tools and materials.
WARNING
When lifting the MEWP, lifting devices
must be attached to designated lift points
only (refer to Figure 3-8).
WARNING
Use chains with load capacity sufcient
to withstand MEWP weight.
Refer to the serial plate of the MEWP for
specic weight.
4. Properly adjust rigging to ensure MEWP remains
level during lifting. See Center of gravity location
(Figure 3-8).

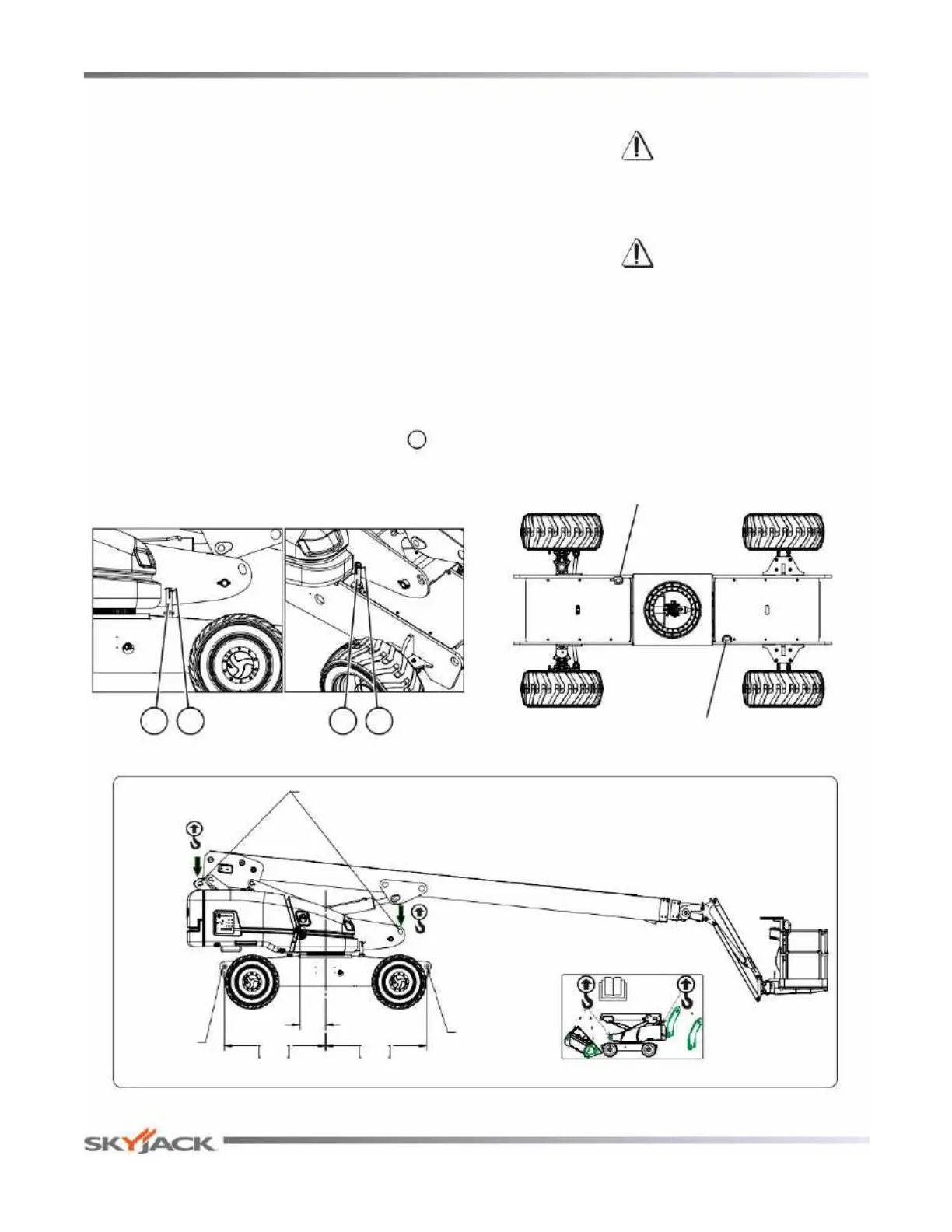

Figure 3-7. Turret Transportation Lock & Locking Points
Figure 3-8. Lifting Points
Transport Turret Lock Point
Transport Turret Lock Point
77in
1.95m
77in
1.95m
X
C
L
LIFTING POINTS
TRANSPORT
TIE-DOWN POINTS
TRANSPORT
TIE-DOWN POINTS
X (81/86T) = 20 " (508mm)
LIFTING POINTS
12 12
