Section 3 - Operation Diagrams
3.11 Technical Diagrams (Continued)
3.35 m 0.61 m
60 degrees
0.28 m
1.35 m
1.12 m
12.34 m
3.05 m
3 m
13 m

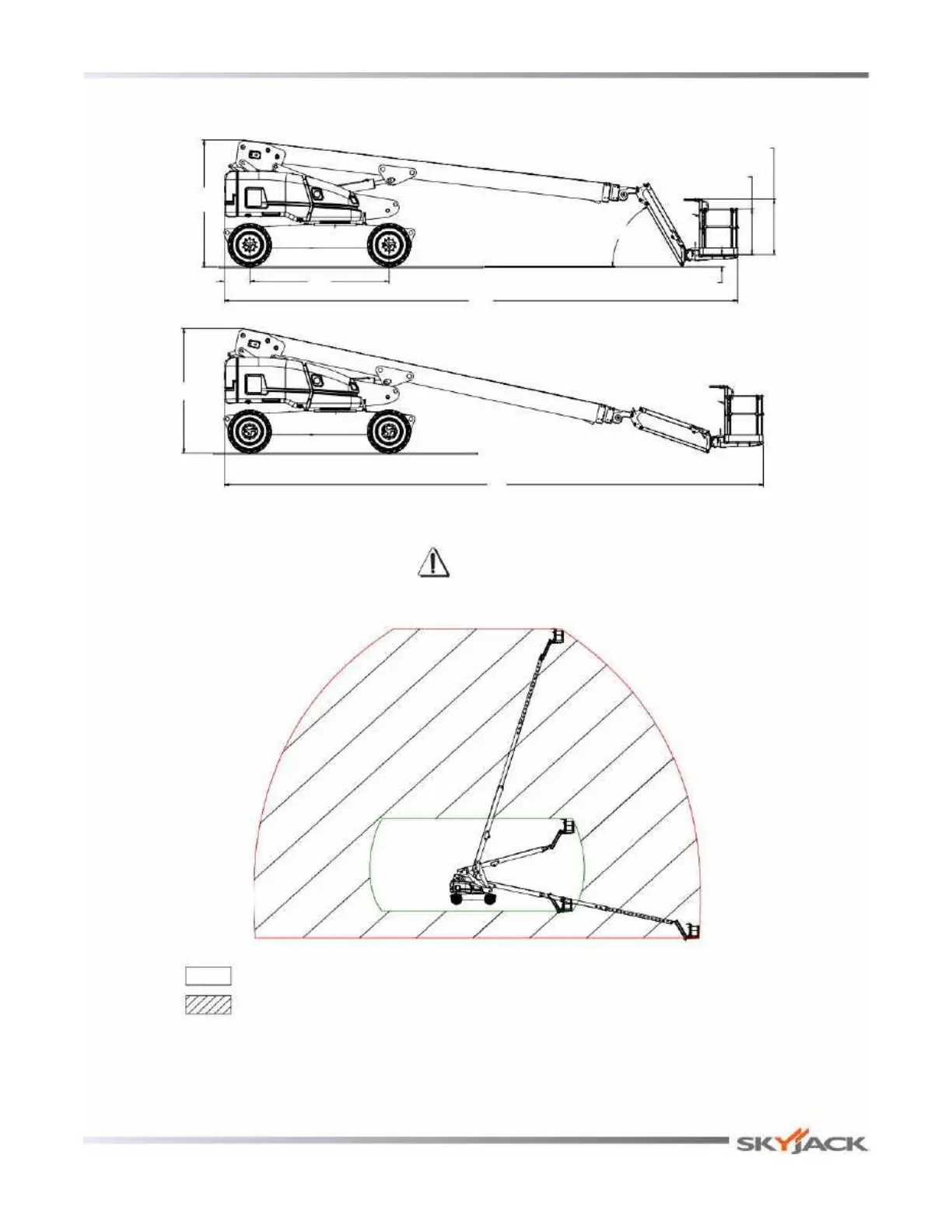

Figure 3-12b. Dimensions - SJ86T
WARNING
Do not raise the platform in work mode if it is not on a rm, level surface.
Axle oscillation free (travel mode) - drive speed 4.83 km/h max.
Axle oscillation locked (work mode) - drive speed 0.8 km/h max.
Figure 3-13. Axle Oscillation - SJ 86T
