Skyjack SJ86T - Page 85

SJ 86T
December 2007 Page 85
1

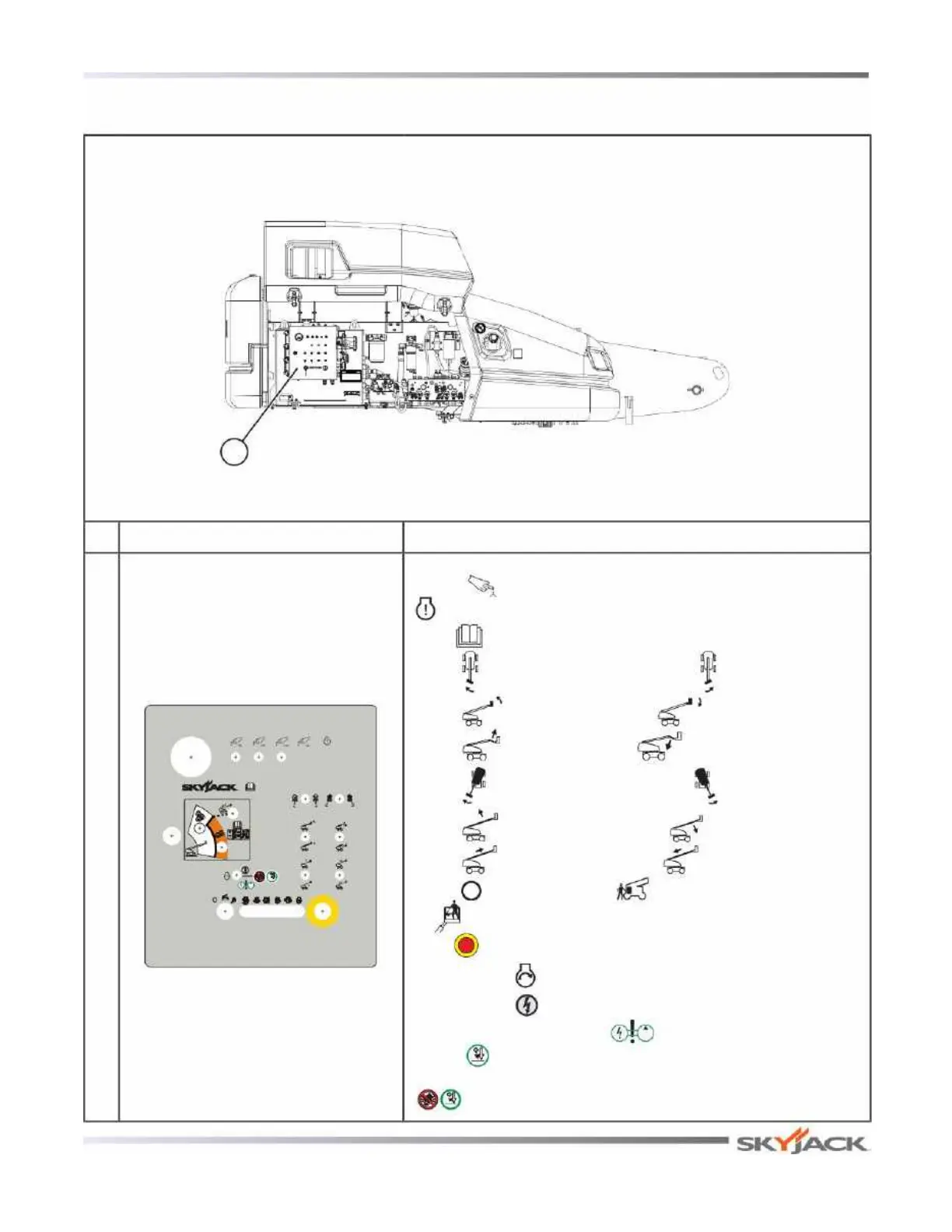

No. Label Pictorial Description
1
Base Control Console
Push “ ” breaker back in to reset. Select and hold
“ ” to enable error blink code for engine control unit (ECU).
Read “ ” operating manual.
Select “ ” to rotate platform to the left or “ ” to rotate to the right.
Select “ ” to tilt platform up or “ ” to tilt platform down.
Select “ ” to move jib up or “ ” to move jib down.
Select “ ” to rotate turret to the left or “ ” to rotate to the right.
Select “ ” to raise main boom or “ ” to lower main boom.
Select “ ” to extend y boom or “ ” to retract y boom.
Select “ ” to turn engine off, “ ” to enable base control console
or “ ” to enable platform control console.
Push “ ” emergency stop to stop engine and disable controls.
Push and hold “ ” to start engine.
Push and hold “ ” to enable base control functions.
With engine off, push and hold “ ” to enable the emergency power
unit for “ ” emergency descent.
Do not operate emergency power unit if platform capacity is exceeded
“ .”
Control Compartment
Section 5 Labels
