Skyjack SJ8841 RT - Test Speed Limit; Test Powerdeck Enable; Test Extension Platform

Page 32 December 2007
Rough Terrain Scissors
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Test Speed Limit
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Ensure path of intended motion is clear.
2. Select off/lift/drive key switch to “ ” lift
position.
3. Raise the platform to an approximate
height of 13 ft. (4 m).
4. Select off/lift/drive key switch to “ ”
drive position and attempt to drive forward
or reverse.
Result: Aerial platform should move slower
than when it was in stowed position.
5. Fully lower the platform.
• Test Powerdeck Enable (If Equipped)
1. Select and hold extend/retract switch to
the “
“ extend position without
selecting “ ” enable switch.
Result: Platform should not extend.
• Test Extension Platform(s) (If
Equipped)
1. Extend each extension platform to about
1 ft. (30.5 cm) (refer to Section 3.8-8 or
Section 3.8-9).
Result: Each extension platform should
extend.
2. Retract each extension platform fully.
Result: Each extension platform should
fully retract.

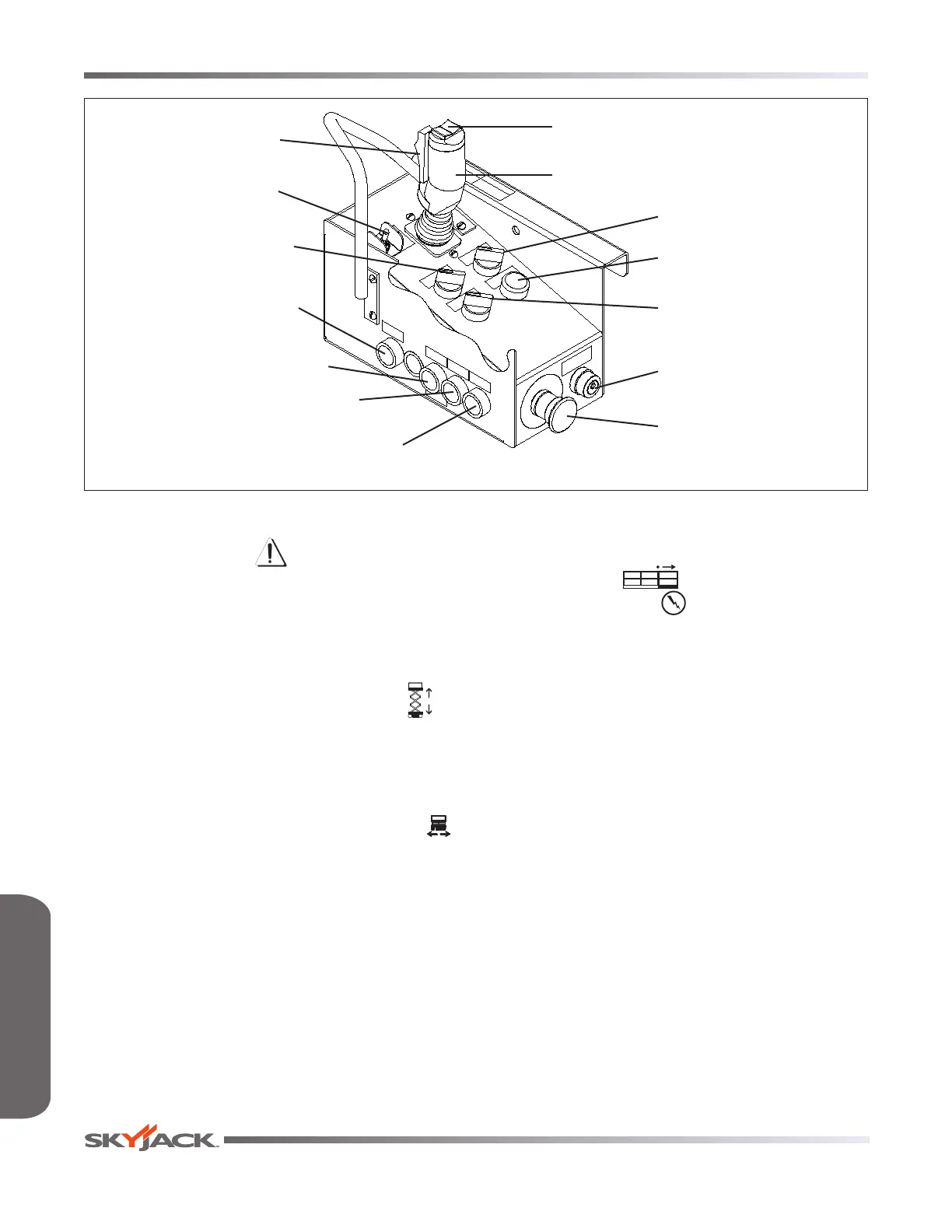

Torque Switch
Engine Start
Pushbutton
Horn
Pushbutton
Glow Plug/Choke
Pushbutton
Lift Enable
Pushbutton
Emergency Stop
Button
Low/High Throttle
Switch
Operation Light
Off/Lift/Drive Key
Switch
Low/High Speed Range
Switch
Drive/Steer
Controller
Raise/Off/Lower
Switch
Drive/Steer Enable
Trigger Switch
Rocker Switch
FAMILIARIZATIONFAMILIARIZATION
