WARNING
• Wall console must be installed within sight of the garage door, out of reach to children at a
minimum height of 5’ (1.5 m) and away from all moving parts of door.
• Be sure power is not connected before installing the wall console.
• Wall console should only be activated when door can be seen clearly, is properly adjusted
and there are no obstructions to door travel.
• Always keep garage door in sight until completely closed. Never permit anyone to cross
path of closing garage door.
1. Location
Place the wall console or LCD wall console at least 5’ (1.5 m)
above the finished floor or the topmost step.
4. Operator Warning Label
Mount the user safety instruction label next to the wall console.
5. Route and Secure the wires
Route the wire up the wall and across the ceiling
to the opener with wire holders.
6. Connect the Wires to the Opener
Connect the wires to the terminals. Wires are not polarity sensitivity (either wire to either terminals).
White Black

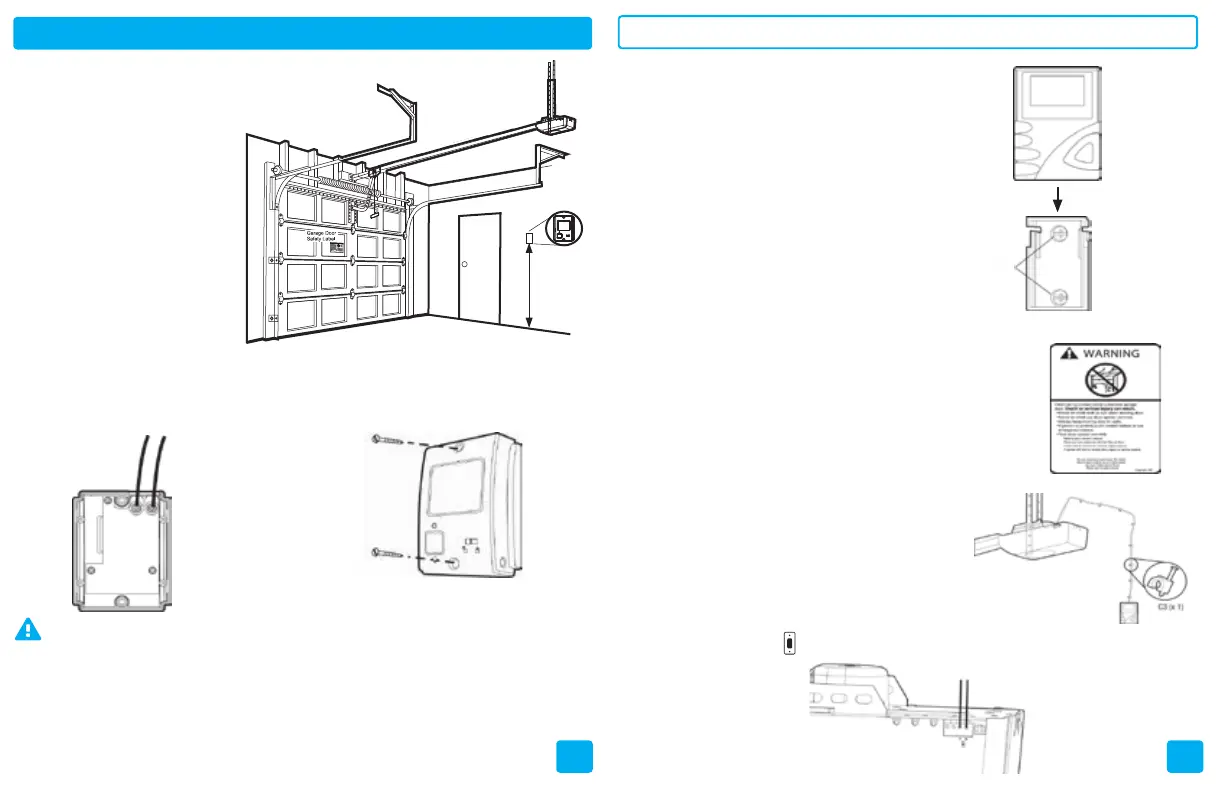

INSTALL THE WALL BUTTON/CONSOLE FOR ATOMS
TM
2323 2424
3a.
Secure the mounting bracket with two screws.
Slide the wall console onto the mounting bracket until
you hear a click.
5 ft (1.5 m)
Install Wall Console on ATOMS
Connect the bell wires to the 2 terminals
screws. Wires are not polarity sensitivity.
2b. Secure the wall console with 2 screw.
Install LCD Wall Console on ATOMS+
2a.
3b.
Screw
INSTALL THE WALL CONSOLE/LCD WALL CONSOLE
INSTALL THE WALL CONSOLE/LCD WALL CONSOLE
TM
TM
To Next Page
