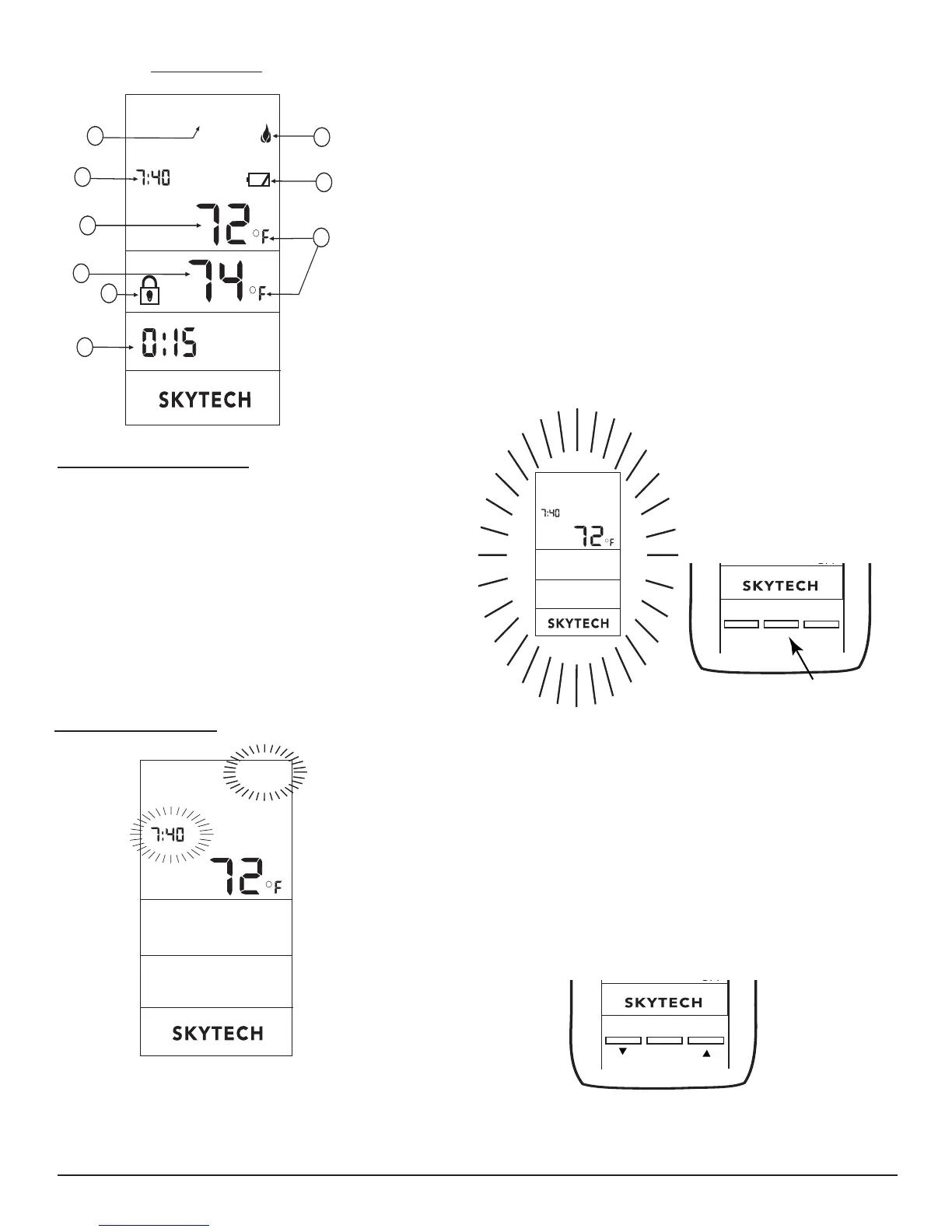

1. BATTERY ICON - Battery power is low. Replace batteries within two
weeks.
2. TIMER- Indicates time remaining before system shuts OFF, when timer-
programmed; 9-hour maximum setting.
3. MODE- Indicates operation MODE of system. ON indicates the system is
ON, either manually or thermostatically. OFF indicates the entire system
is turned OFF THERMO indicates the system will automatically cycle ON/
OFF, depending on programmed
4. SET- Indicates desire SET room temperature for THERMO operation
5. FLAME – Indicates burner/valve in operation.
6. CLOCK – Indicates the current time in AM/PM
7. ROOM – Indicates CURRENT room temperature.
8. ° F indicates degrees Fahrenheit (ºC indicates degrees Celsius).
9. LOCK – Child lock out.
OPERATION FUNCTIONS
Note: Touch anyplace on the screen and the screens blue
back light will light up and stay on 5-seconds.
To operate the system, press the MODE/SET button or
press the MODE SECTION on the LCD screen on the front
of the transmitter to select the operational MODE desired.
• ON indicates the system is ON, either manually, timed
or thermostatically.
• THERMO indicates the system will automatically cycle
ON/OFF, depending on programmed set temperature.
• OFF indicates the entire system is turned OFF.
OFF
MODE/SET
Mode/Set Button
NOTE: When setting the clock the transmitter must be in the OFF position
1. Press the word TIMER on the LCD screen of the transmitter for more
than two seconds. The hour digit(s) will begin ashing.
2. Press the UP or DOWN buttons until the desired hour is displayed in
AM or PM.
3. After setting the desired hour, press and release the word TIMER
again and the minutes digits will begin ashing.
4. Press the UP or DOWN buttons until the desired minutes are
displayed.
5. Press the word TIMER again for more than two seconds then release.
The minute digits will cease ashing, indicating the clock has been
successfully set.
SETTING THE CLOCK
NOTE: Flashing numbers on the display indicate the system is awaiting user input, such as using the UP and DOWN
buttons to program a new setting. If no change is made to ashing digits within 15 seconds, the system will complete the
procedure last programmed and reset the display to its normal state.
