STEP 17

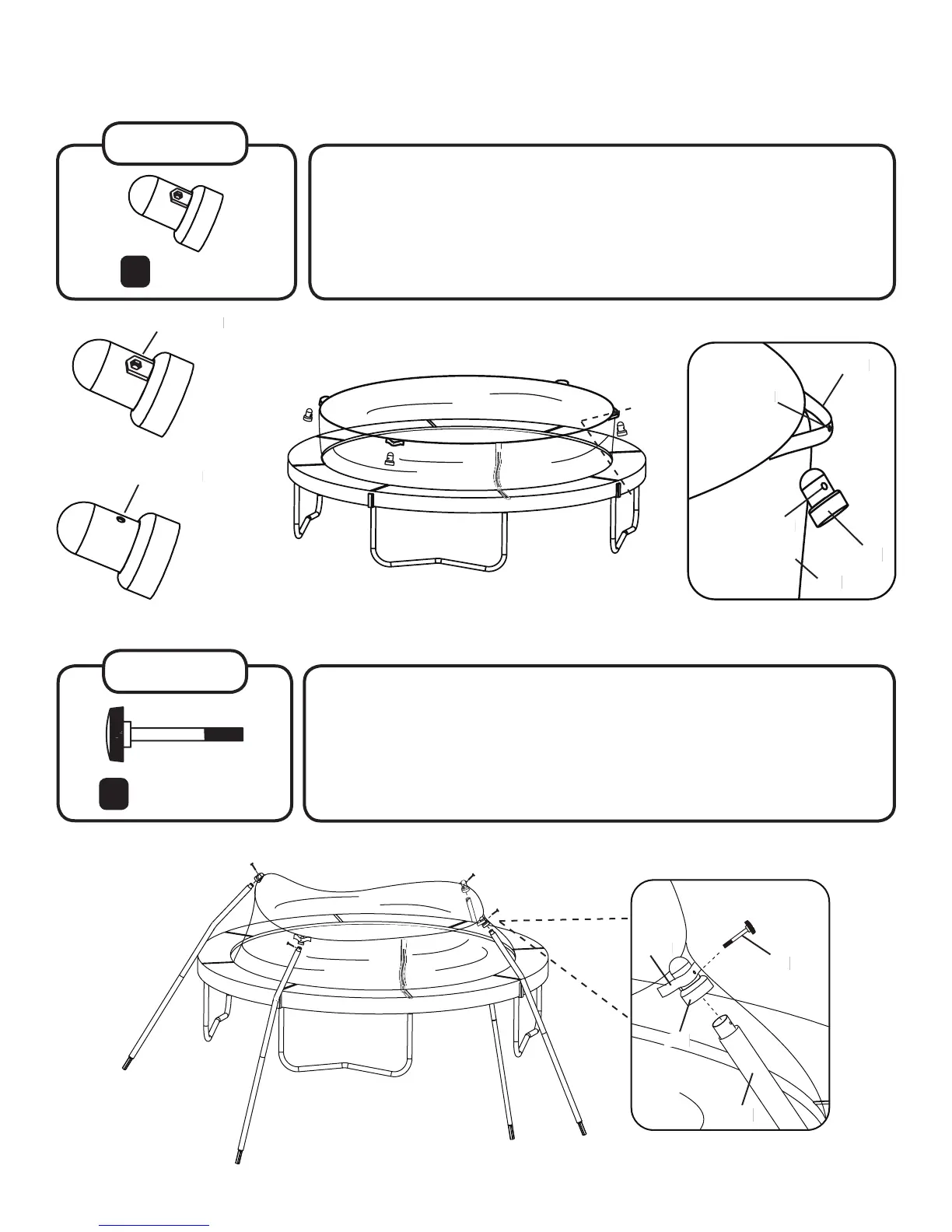

Important: The pole cap (12) has two sides; one with a hexagon hole, and
one with a regular hole.
Insert the pole cap into one strap ring found on the top of the enclosure net.
Make sure the hexagon hole is facing the net, and the regular hole is facing
you.
Pole Cap (x4)
12
STEP 18
Next insert a curved tube (10) into the pole cap (12). Make sure the bent side
of the enclosure poles are facing towards the center of the trampoline. Make
sure the holes on the curved tube, pole cap, and strap ring are all aligned.
Then insert a M5x44mm bolt (14) to secure in place. Important: Make sure
the bolt goes into the round hole FIRST (not the hexagon hole) or you could
break the pole cap! Repeat steps 17-18 to assemble the remaining pole caps.
M5x44mm Bolt (x4)
14
Regular hole
Hole
Strap
(4)
(12)
(12)
(10)
(14)
Strap
Hexagon hole
Regular hole
