9
ASSEMBLY

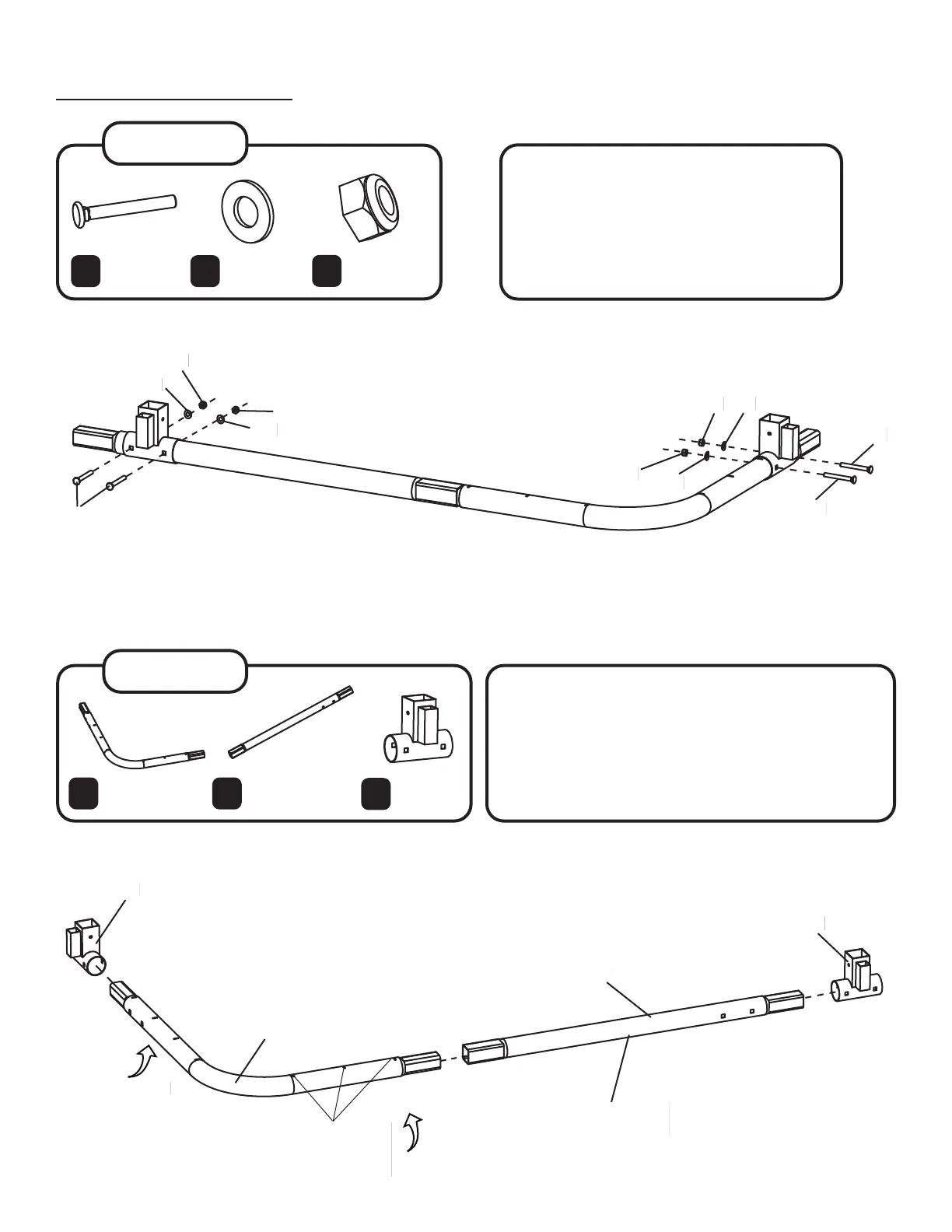

STEP 3
Then, secure using four M10x80mm bolts
(16), four M10 washers (17), and four M10
nuts (18). Repeat steps 2-3 to assemble
one additional frame section.
16
M10x80mm
Bolt (x4)
17
M10 Nut (x4)
18
M10 Washer
(x4)
(16)
(16)
(16)
(17)
(17)
(17)
(17)(18)
(18)
(18)
(18)
(3)
(2)
(3)
(1)
Three holes
on right
hand side
Four holes
STEP 4
Locate two sockets (3), one corner tube (1) and one
straight tube (2), and connect them together as
shown. Make sure the end with three holes is on the
right side and the straight tube connects to that
end.
Make sure the other spring holes are facing down.
1
2
Corner Tube (x1) Straight Tube (x1)
3
Socket (x2)
Spring holes
face down
To Next Page
