Skywalker STRC915.2 - Step 5: Secure Additional Frame Section; Step 6: Assemble U-Shaped Leg Sections

STEP 6
56
19
Male Leg
(x4)
Female
Leg (x4)
M6x70mm
Bolt (x4)
20
21
M6 Washer
(x8)
M6 Nut
(x8)
Now insert one male leg (5) into one
female leg (6), and secure using one
M6x70mm bolt (19), two M6 washers
(20), and one M6 nut (21). Repeat
this step until four U-shaped leg
sections are assembled.
(16)
(16)
(17)
(17)
(18)
(18)
(16)
(17)
(18)
(17)
(18)
(6)
(5)
(19)
(20)
(20)
(21)
10
ASSEMBLY
STEP 5

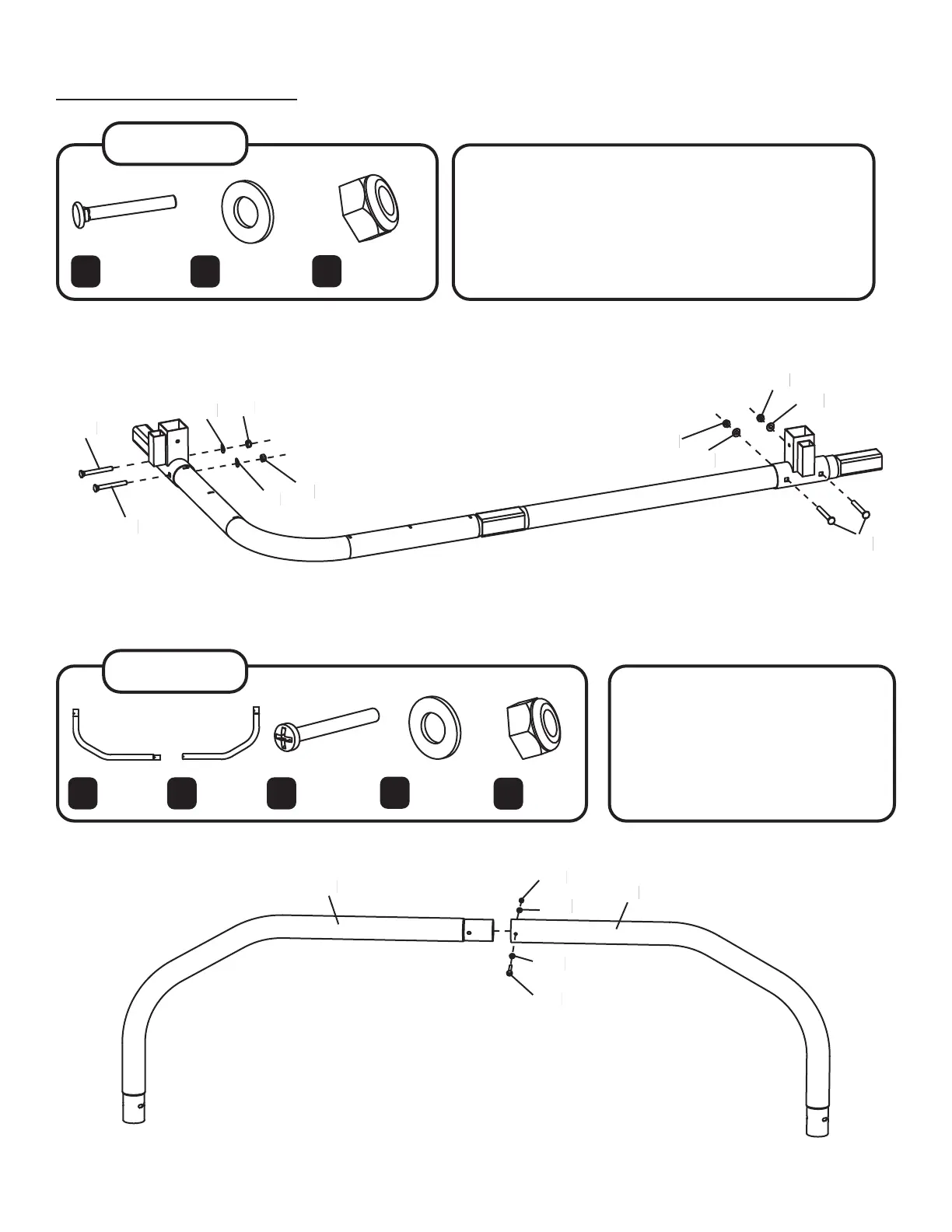

Then, secure using four M10x80mm bolts (16), four
M10 washers (17), and four M10 nuts (18). Repeat
steps 4-5 to assemble one additional frame section.
You will now have four corner frame sections.
16
M10x80mm
Bolt (x4)
17
M10 Nut (x4)
18
M10 Washer
(x4)
