Skyware Global 180 - PARTS & HARDWARE

12
PARTS & HARDWARE
NO. DESCRIPTION QTY.
1 RD HD SQ NK BOLT, M12 x 100mm, GALV. 4
2 LOCK WASHER, M12 16
3 HEX NUT, 1/2” , GALV., M12 17
4 SPLIT PIN, M3.2 x 25mm 1
6 TOP/BOTTOM ANGLE 2
7 BACKFRAME HOUSING ASSEMBLY 1
8 FLAT WASHER - M12 7
9 HEX HD SCREW, SPCL, M12 x 210mm 1
10 SPHERICAL WASHER 1
11 CASTLE NUT, M12 1
12 SWIVEL NUT, M12 1
1
PARTS AND HARDWARE
1
2
3
14
13
18
2
8
17
6
7
2
3
20
8
2
3
2
3
6
9
8
10
11
4
12
3
2
8
18
3
3
19
24
16
23
22
15
2
18
21

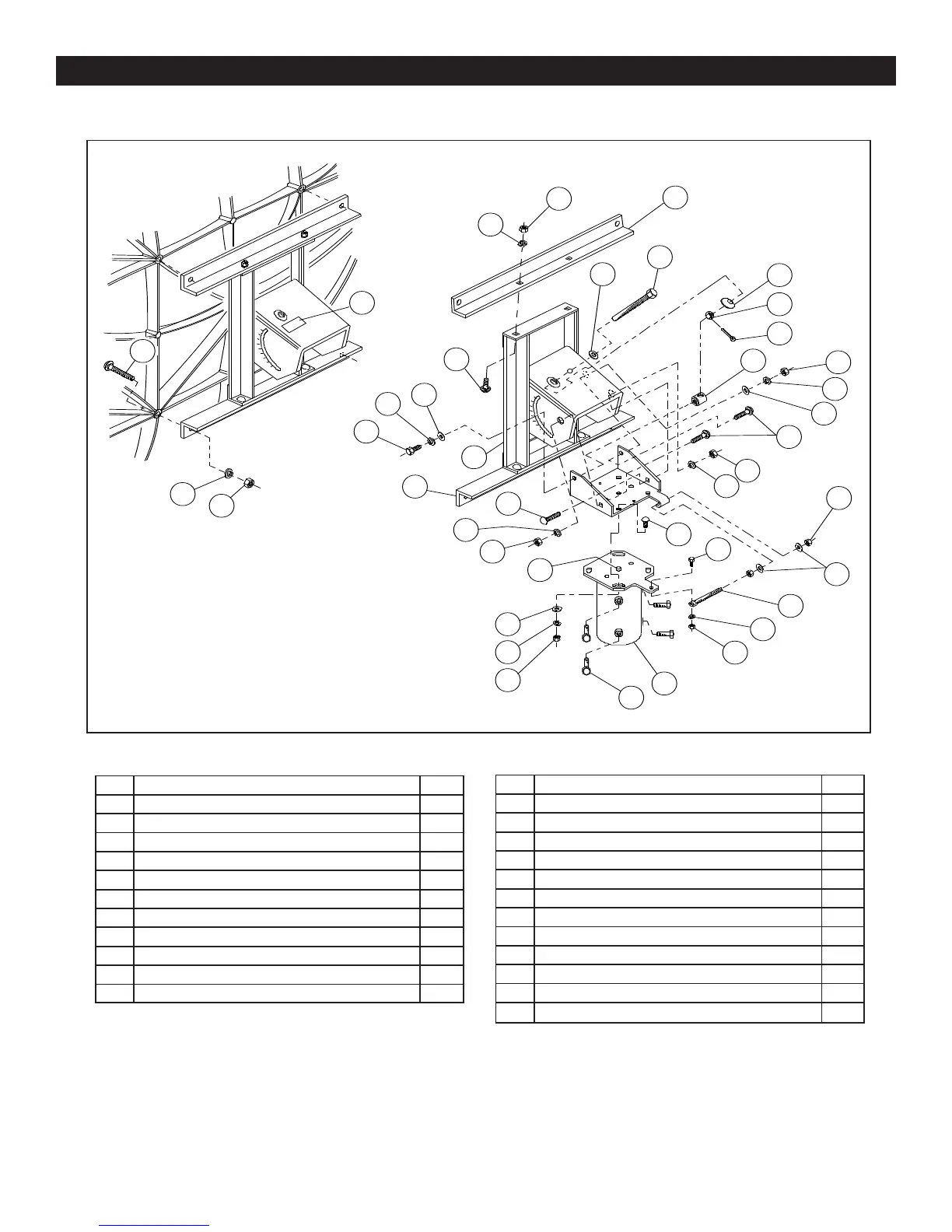

FIG. 3.0 - AZ/EL CAP
NO. DESCRIPTION QTY.
13 HEX HD BOLT, M12 x 25mm 1
14 LABEL, ELEVATION 1
15 HEX HD BOLT, M12 x 30mm 4
16 CANISTER WELDMENT 1
17 RD HD SQ NK BOLT, M12 x 25mm 4
18 RD HD SQ NK BOLT, M12 x 35mm 7
19 FLAT WASHER - LARGE 2
20 SPRING PIN, M8 X 20mm 1
21 HEX HD BOLT, M8 X 25mm 1
22 LOCK WASHER M8 1
23 HEX NUT M8 1
24 BOLT, SPADE M12 x 135mm 1
